Digital flow switch for large flow
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

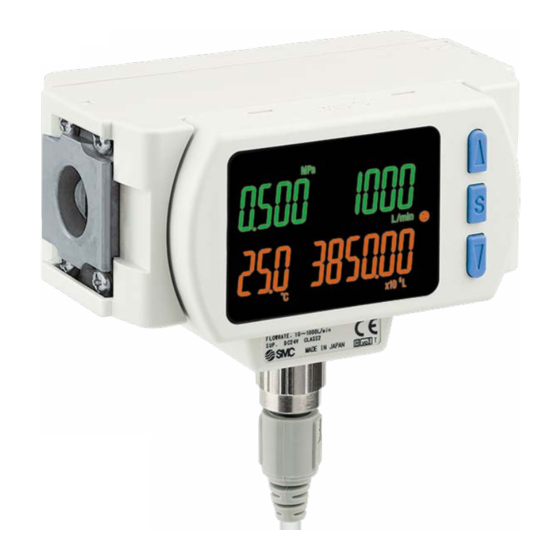

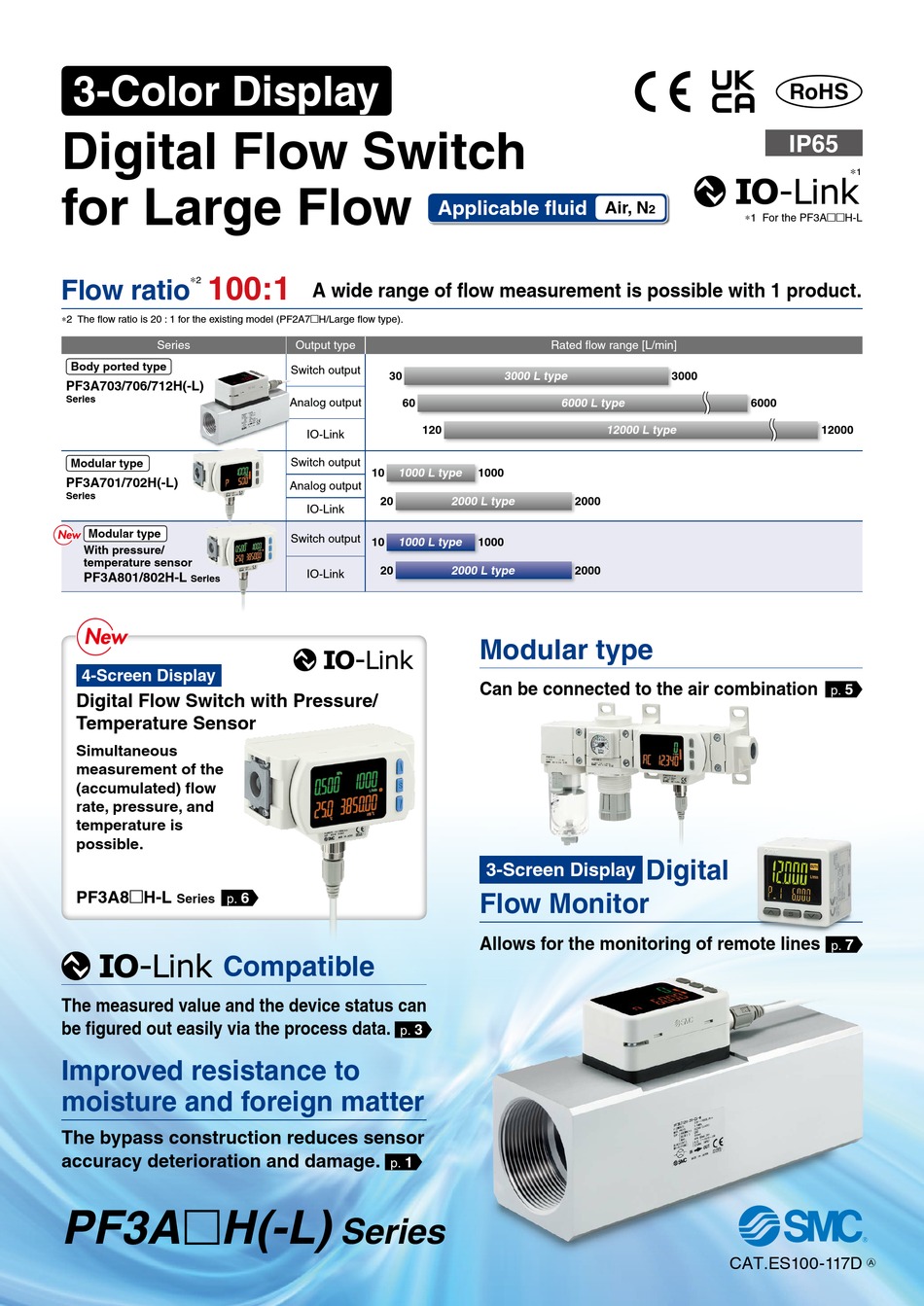

3-Color Display
Digital Flow Switch
for Large Flow
100:1
*
Flow ratio
2
*2 The flow ratio is 20 : 1 for the existing model (PF2A7mH/Large flow type).
Series
Body ported type
PF3A703/706/712H(-L)
Series
Modular type
PF3A701/702H(-L)
Series
Modular type
With pressure/
temperature sensor
PF3A801/802H-L
Series
4-Screen Display
Digital Flow Switch with Pressure/
Temperature Sensor
Simultaneous
measurement of the
(accumulated) flow
rate, pressure, and
temperature is
possible.
PF3A8mH-L
Series
p.
Compatible
The measured value and the device status can
be figured out easily via the process data.
Improved resistance to
moisture and foreign matter
The bypass construction reduces sensor
accuracy deterioration and damage.
PF3A m H(-L)
A wide range of flow measurement is possible with 1 product.
Output type
Switch output
30
Analog output
60
IO-Link
Switch output
10
1000 L type
Analog output
20
IO-Link
Switch output
10
1000 L type
20
IO-Link
6
3
p.
1
p.
Series
Applicable fluid
Rated flow range [L/min]
3000 L type
6000 L type
120
1000
2000 L type
2000
1000
2000 L type
2000
Modular type
Can be connected to the air combination
3-Screen Display
Flow Monitor
Allows for the monitoring of remote lines
Air, N
2
*1 For the PF3AmmH-L
3000
6000
12000 L type
Digital
CAT.ES100-117D
RoHS
IP65
*
1
12000
5
p.
7
p.
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF3AmH Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks PF3AmH Series

Summary of Contents for SMC Networks PF3AmH Series

  • Page 1 3-Color Display RoHS Digital Flow Switch IP65 for Large Flow Applicable fluid Air, N *1 For the PF3AmmH-L 100:1 Flow ratio A wide range of flow measurement is possible with 1 product. *2 The flow ratio is 20 : 1 for the existing model (PF2A7mH/Large flow type). Series Output type Rated flow range [L/min]...
  • Page 2 Digital Flow Switch for Large Flow PF3A  H(-L) 3-Color Display Series Improved resistance to Through bore construction moisture and foreign matter • Pressure loss: The bypass construction reduces the moist air or foreign matter in contact reduction with the sensor, reducing sensor accuracy deterioration and damage. (20 kPa / 5 kPa) Sensor unit Bypass construction...
  • Page 3 Digital Flow Switch for Large Flow PF3A  H(-L) 3-Color Display Series Smallest settable increment: L/min Grease-free * For the PF3A703H * 5 L/min for the existing model (PF2A703H/Large flow type) Functions Application 37 to 39 ¡Output operation ¡Setting of a security code Flow control of equipment, main line, and branch line ¡Simple setting mode...
  • Page 4 Digital Flow Switch for Large Flow PF3A m H(-L) 3-Color Display Series IO-Link Compatible PF3AmmH-mm-Lm-mm Supports the IO-Link communication protocol Configuration File (IODD File * IO-Link is an open communication inter- face technology between the sensor/actu- ator and the I/O terminal that is an interna- ·...
  • Page 5 Digital Flow Switch for Large Flow PF3A m H(-L) 3-Color Display Series Implement diagnostic bits in the process data. The diagnostic bit in the cyclic process data makes it easy to find problems with the equipment. It is possible to find problems with the equipment in real time using the cyclic (periodic) data and to monitor such problems in detail with the noncyclic (aperiodic) data.
  • Page 6 Modular Type Digital Flow Switch 3-Color Display 17, 19 PF3A701H/702H Series Can be connected to the air combination Series AC30-D AC40-D Flow range PF3A701H 1000 L/min 1000 L/min 2000 L/min PF3A702H 2000 L/min (PF3A701H) (PF3A702H) Air Combination Connection Examples Products do not come assembled. They should be ordered separately and assembled by the customer.
  • Page 7 Modular Type Digital Flow Switch with Pressure/Temperature Sensor 4-Screen Display PF3A801H/802H-L Series Can be connected to the air combination AC30-D AC40-D Series Flow range Pressure Temperature PF3A801H-L 1000 L/min 1 MPa 50°C 1000 L/min 2000 L/min PF3A802H-L 2000 L/min (PF3A801H) (PF3A802H) 3-color/4-screen display Pressure...
  • Page 8 Digital Flow Monitor 3-Screen Display PFG300 Series Allows for the monitoring of remote lines PF3A7H Centralized flow control PFG300 For main line PFG300 PFG300 PFMB PFG300 PFG300 PFMC The flow rate of a flow switch installed in a distant location can be confirmed! Visualization of settings The sub screen (label) shows the item...
  • Page 9 Digital Flow Monitor PFG300 3-Screen Display Series NPN/PNP switch function Input range selection (for Pressure/Flow rate) The number of The displayed value to the sensor input can be set as required. stock items can (Voltage input: 1 to 5 V/Current input: 4 to 20 mA) be reduced.

  • Page 10: Table Of Contents

    Digital Flow Switch for Large Flow PF3A  H(-L) 3-Color Display Series Flow Switch Flow Rate Variations Series Smallest Rated flow range [L/min] Applicable Detection settable Compatibility with the fluid method 5 10 20 25 50 100 150 200 300 500 600 1000 2000...

  • Page 11: Air N

    Digital Flow Switch for Large Flow PF3A  H(-L) 3-Color Display Series Flow Switch Variations / Basic Performance Table PFMV PF2M7 PFMB PF2MC7 PF2A PF3A H(-L) PFG300 PFMV3 PFG300 PFG300 IP65 IP65 IP40 IP40 IP40 IP65 [Monitor unit: IP40] [Monitor unit: IP40] Dry air, Dry air, N Dry air, N...
  • Page 13 C O N T E N T S Body Ported Type Digital Flow Switch PF3A7 mH 3-Color Display Series IO-Link Compatible Body Ported Type Digital Flow Switch PF3A7 mH-L 3-Color Display Series Modular Type Digital Flow Switch PF3A7 mH 3-Color Display Series IO-Link Compatible Modular Type...
  • Page 14 Body Ported Type Digital Flow Switch 3-Color Display PF3A7  H Series RoHS How to Order PF3A Type Calibration certificate Integrated display None *8 The certificate is in both Rated flow range English and Japanese. 30 to 3000 L/min *9 Made to order 60 to 6000 L/min 120 to 12000 L/min Unit specification...

  • Page 15: Min 20 200

    Body Ported Type PF3A7 mH Series Digital Flow Switch 3-Color Display For flow switch precautions and specific product precautions, refer to the “Operation Manual” on the SMC website. Specifications PF3A703H PF3A706H PF3A712H Model Applicable fluid * Air, Nitrogen Fluid Fluid temperature 0 to 50°C Detection method Thermal type...

  • Page 16: Body Ported Type

    Body Ported Type Digital Flow Switch 3-Color Display PF3A7mH-L Series RoHS How to Order PF3A Type Calibration certificate Integrated display None *9 The certificate is in both Rated flow range English and Japanese. 30 to 3000 L/min *10 Made to order 60 to 6000 L/min Unit specification 120 to 12000 L/min...

  • Page 17: Body Ported Type

    Body Ported Type PF3A7 mH-L Series Digital Flow Switch 3-Color Display For flow switch precautions and specific product precautions, refer to the “Operation Manual” on the SMC website. Specifications PF3A703H-L PF3A706H-L PF3A712H-L Model When used as a switch 24 VDC ±10% Power output device Electrical...

  • Page 18: Modular Type

    Modular Type Digital Flow Switch 3-Color Display PF3A7  H Series RoHS How to Order PF3A Type Flow direction Integrated display Left to right Right to left Rated flow range ∗ Calibration certificate Symbol Rated flow range Applicable air combination model 10 to 1000 L/min AC30-D None...

  • Page 19: Min

    Modular Type PF3A7 mH Series Digital Flow Switch 3-Color Display For flow switch precautions and specific product precautions, refer to the “Operation Manual” on the SMC website. Specifications PF3A701H PF3A702H Model Applicable fluid * Air, Nitrogen Fluid Fluid temperature 0 to 50°C Detection method Thermal type (Bypass flow type) Rated flow range...
  • Page 20 Modular Type Digital Flow Switch 3-Color Display PF3A7mH-L Series RoHS How to Order PF3A Type Flow direction Integrated display Left to right Right to left Rated flow range Symbol Rated flow range Applicable air combination model ∗ Calibration certificate 10 to 1000 L/min AC30-D None 20 to 2000 L/min...
  • Page 21 Modular Type PF3A7 mH-L Series Digital Flow Switch 3-Color Display For flow switch precautions and specific product precautions, refer to the “Operation Manual” on the SMC website. Specifications PF3A701H-L PF3A702H-L Model When used as a switch 24 VDC ±10% Power output device Electrical supply...
  • Page 22 RoHS Modular Type Digital Flow Switch with Pressure/Temperature Sensor 4-Screen Display PF3A8mH-L Series How to Order PF3A 8 01 H L2 Q M Type Flow direction With pressure/temperature sensor Left to right Right to left Rated flow range ∗ Calibration certificate Symbol Rated flow range Applicable air combination model (For flow/pressure sensors only)

  • Page 23: Thermal

    Modular Type PF3A8mH-L Series Digital Flow Switch with Pressure/Temperature Sensor 4-Screen Display For flow switch precautions and specific product precautions, refer to the “Operation Manual” on the SMC website. Specifications ∗1 Air quality grade is JIS B 8392-1:2012 [4:6:-] and PF3A801H PF3A802H Model...
  • Page 24 PF3AmH(-L) Series Flow Range Flow range Model 0 L/min 1000 L/min 3000 L/min 6000 L/min 12000 L/min 10 L/min 1000 L/min PF3A701H 10 L/min 1050 L/min PF3A801H-L 0 L/min 1050 L/min 20 L/min 2000 L/min PF3A702H 20 L/min 2100 L/min PF3A802H-L 2100 L/min 0 L/min...
  • Page 25 Large Flow Type PF3AmH(-L) Series Digital Flow Switch 3-Color Display Pressure Loss (Reference Data) PF3A701H(-L) PF3A702H(-L) (for 1000 L/min) (for 2000 L/min) PF3A703H(-L) (for 3000 L/min) PF3A801H-L PF3A802H-L Supply pressure: 0.1 MPa Supply pressure: 0.1 MPa Supply pressure: 0.5 MPa Supply pressure: 0.1 MPa Supply pressure: 0.5 MPa Supply pressure: 0.9 MPa...
  • Page 26 PF3AmH(-L) Series IN Side Straight Section and Accuracy (Reference Data) PF3A703H(-L) (for 3000 L/min) PF3A706H(-L) (for 6000 L/min) PF3A712H(-L) (for 12000 L/min) ±70% ±70% ±70% With ø1/2" connected With ø1" connected With ø1 1/4" connected ±60% ±60% ±60% ±50% ±50% ±50% ±40% ±40%...
  • Page 27 Large Flow Type PF3AH(-L) Series Digital Flow Switch 3-Color Display Internal Circuits and Wiring Examples NPN + Analog output selected PNP + Analog output selected PF3A7H--CS/DS- PF3A7H--ES/FS- Brown Brown DC(+) DC(+) Black Black 24 VDC 24 VDC White White Analog output Analog output Blue DC(−)
  • Page 28 PF3AmH(-L) Series Internal Circuits and Wiring Examples PF3A7mmH-mm-Lm-mm NPN output type PNP output type Brown Brown DC(+) DC(+) Black Black 24 VDC 24 VDC White White N.C. N.C. Blue Blue DC(−) DC(−) Max. applied voltage: 30 V, Max. load current: 80 mA, Internal Max.
  • Page 29 Large Flow Type PF3AmH(-L) Series Digital Flow Switch 3-Color Display Construction: Parts in Contact with Fluid PF3A703H(-L)/706H(-L)/712H(-L) Component Parts q w e r t y Description Material Note Body Aluminum alloy Anodized Branch passage — Gasket HNBR — Sensor base —...
  • Page 30 PF3AmH(-L) Series Dimensions PF3A701H/702H PF3A801H/802H Max. rotation angle: 90° Rotating part of display Symbol Model PF3A701H/PF3A801H 68.3 64.4 55.4 28.9 PF3A702H/PF3A802H 72.3 35.5 Lead wire with M12 connector (Part no.: ZS-37-A) Cable Specifications 38.5 3000 1: Brown 2: White Conductor Nominal cross section AWG23 Outside diameter Approx.
  • Page 31 PF3AmH Series Optional Accessories Piping Adapter: 1/4, 3/8, 1/2, 3/4 A piping adapter allows for the installation/removal of the component without removing the piping and thus makes maintenance easier. Applicable air Model combination model Width (Port size) E300-m02-D across flats E300-m03-D AC30-D E300-m04-D...
  • Page 32 3-Screen Display Digital Flow Monitor PFG300 Series RoHS How to Order Type Remote type monitor unit Option 4 Operation manual Calibration certificate Input specification —  Symbol Description Applicable flow switch model — — Voltage input PF3A7H-CS/ES/L3 series   Current input PF3A7H-DS/FS/L4 series —...
  • Page 33 PFG300 Series Digital Flow Monitor 3-Screen Display For flow switch precautions and specific product precautions, refer to the “Operation Manual” on the SMC website. Specifications PFG300 Model series Model PF3A701H PF3A702H PF3A703H PF3A706H PF3A712H Applicable SMC Rated flow range * flow switch 10 to 1000 L/min 20 to 2000 L/min...
  • Page 34 PFG300 Series Internal Circuits and Wiring Examples NPN (2 outputs) + Copy function PNP (2 outputs) + Copy function qDC (+) qDC (+) Brown Brown DC (+) DC (+) Gray Gray Copy terminal Copy terminal rAnalog rAnalog input input 12 to 12 to Black Black...
  • Page 35 PFG300 Series Digital Flow Monitor 3-Screen Display Dimensions Sensor connector 4 x ø2.6 (7.7) Depth 7 or less Power supply/Output connector Bracket A (Part no.: ZS-46-A1) 34.6 ∗ Bracket configuration allows for mounting in four orientations. Bracket B (Part no.: ZS-46-A2) ∗...
  • Page 36 PFG300 Series Dimensions Panel mount adapter (Part no.: ZS-46-B) 50.8 34.5 20.2 47.8 Panel thickness 0.5 to 7 Panel mount adapter + Front protection cover (Part no.: ZS-46-D) 50.8 20.2 47.8 34.5 33.5 42.4 Panel thickness 0.5 to 7 Power supply/output connection lead wire Sensor connector (Part no.: ZS-46-5L) (Part no.: ZS-28-CA-4)
  • Page 37 PFG300 Series Digital Flow Monitor 3-Screen Display Dimensions Panel fitting dimensions Individual mounting −0.4 Multiple (2 pcs. or more) secure mounting Panel mount example <Horizontal> <Horizontal> 31 x n pcs. + 3.5 x (n pcs. − 1) Panel mount example <Vertical>...
  • Page 38 PF3A m H(-L) Series Function Details * The pressure and temperature settings are only available for the PF3A8mH-L series. For the setting of functions and operation methods, refer to the “Operation Manual” on the SMC website.  Output operation  Peak/Bottom value display The output operation can be selected from the following: The max.
  • Page 39 PF3AmH(-L) Series Function Details  Selection of the display on the sub screen The display on the sub screen in measuring mode can be set. Accumulated value display Set value display Peak value display Displays the accumulated value Displays the set value Displays the peak value screen Switch output/Communication mode display...
  • Page 40 PF3AmH(-L) Series M Zero-clear function (PF3A8mH-L series only) M Display fine adjustment function (PF3A8mH-L series only) This function clears and resets the zero value on the display of the Fine adjustment of the indicated value of the pressure sensor can be measured pressure.
  • Page 41 PFG300 Series Function Details For the setting of functions and operation methods, refer to the “Operation Manual” on the SMC website.  Output operation  Forced output function The output operation can be selected from the following: The output is forced ON/OFF when starting the system or during Output (hysteresis mode and window comparator mode) correspond- maintenance.
  • Page 42 PFG300 Series  Selection of the display on the sub screen The display on the sub screen in measuring mode can be set. Set value display Accumulated value display Peak value display Displays the set value Displays the accumulated value Displays the peak value screen Bottom value display...
  • Page 43 PFG300 Series Function Details  Copy function The set values of the monitor can be copied. This can reduce setting labor and minimize the risk of setting mistakes. The set value can be copied to up to 10 flow monitors simultaneously. (Maximum transmission distance: 4 m) 1 unit 2 units...
  • Page 44 These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for ∗1) safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations.
