Mounting and Installation
■Installation
Mounting with panel mount adapter

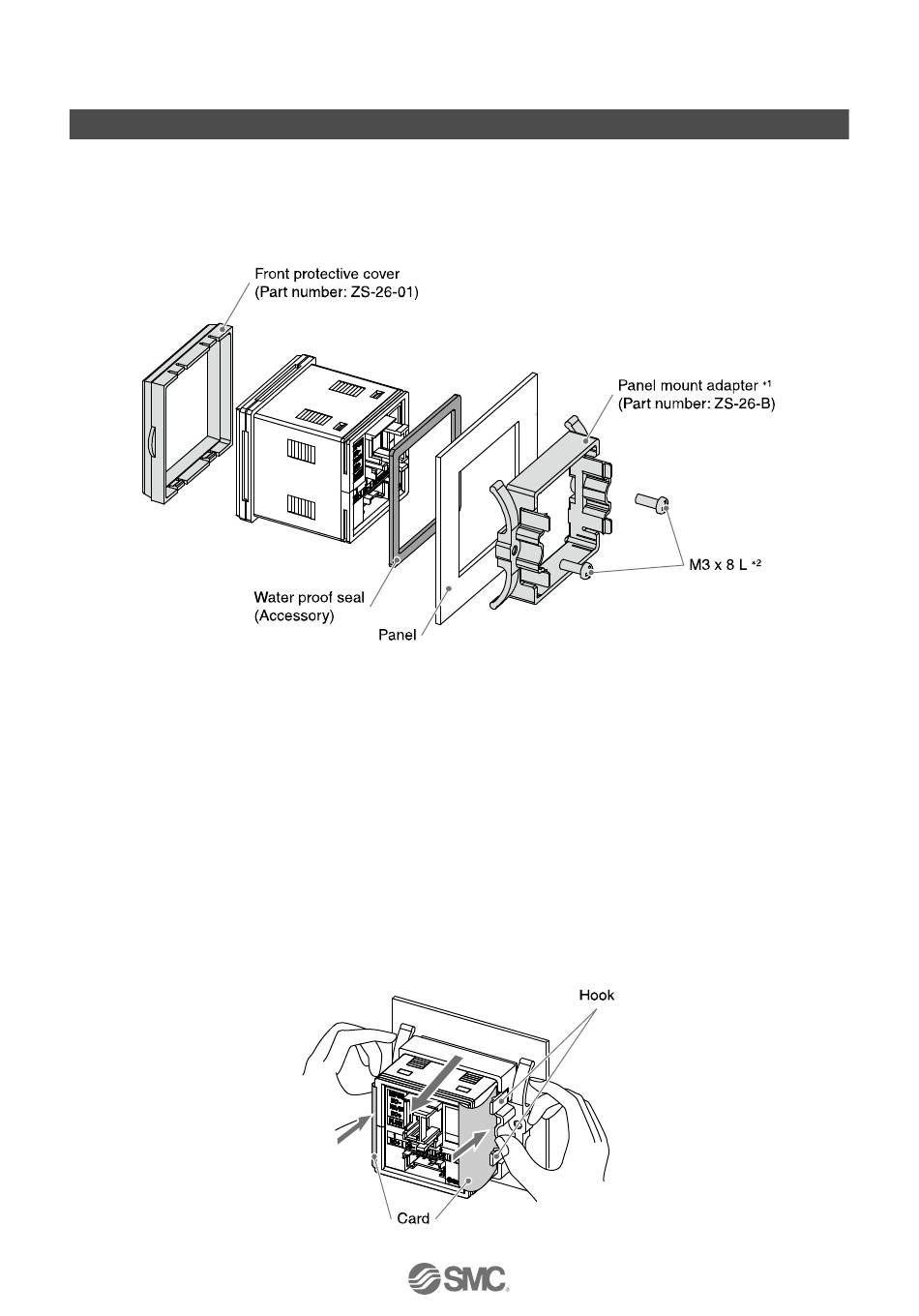

Fix the panel mount adapter to the flow monitor with the screws supplied M3 x 8 L (2 pcs.).
Panel mount adapter (Part number: ZS-26-B)
Front protective cover (Part number: ZS-26-01)
∗1: The panel mount adapter can be rotated through 90 degrees for mounting.
∗2: The panel mount adapter should be fixed firmly with screws. Otherwise, fluids such as water may enter. After contact with the panel,
tighten screws by 1/4 to 1/2 turn.
Cut-out dimensions for panel mounting
∗: Refer to page
73
for panel cut-out dimensions.
Notice when removing the product
The product with panel mount adapter can be removed from the panel after removing the two screws, and
by disconnecting the hooks on both sides.
This can be done by inserting a suitable piece of thin card (as shown in the figure).
Pull the panel mount adapter to the front, and remove the flow monitor.
If the panel mount adapter is pulled forward with the hook caught, the product and the adapter may be
damaged.
