Summary of Product parts

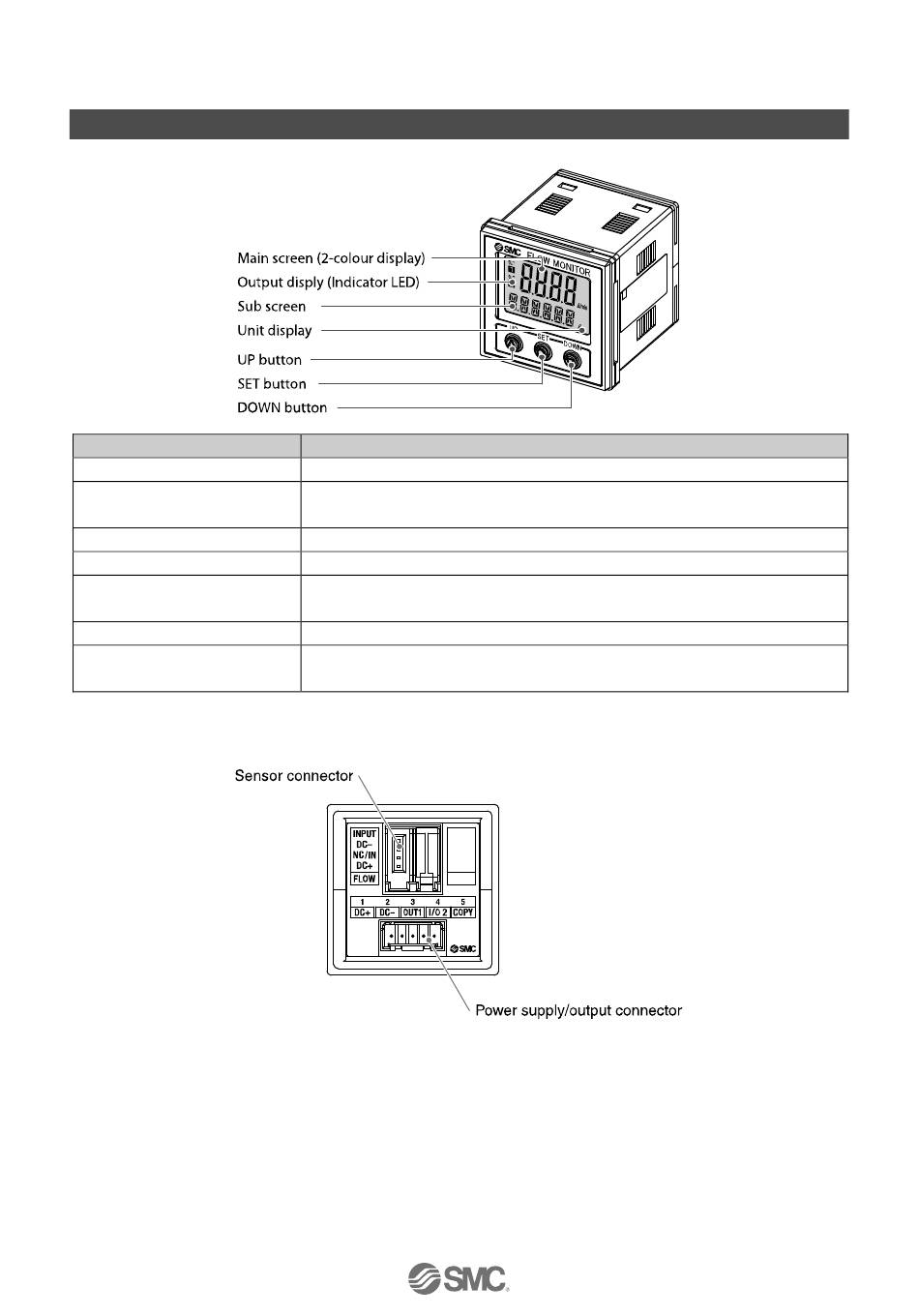

Front
Element
Main screen (2-colour display)
Sub screen
Output display (Indicator LED)
Unit display
UP button
SET button
DOWN button
Back
Displays the flow, the status of setting mode and error code.
Displays the accumulated flow, set value, peak/bottom value, fluid temperature and
line names.
Displays the output status of OUT1 and OUT2. When ON: Orange LED is ON.
Displays the unit selected.
Selects a mode and the display shown at the sub screen, and increases the
ON/OFF set values.
Press this button to select mode and to confirm a set value.
Selects a mode and the display shown at the sub screen, and decreases the
ON/OFF set values.
