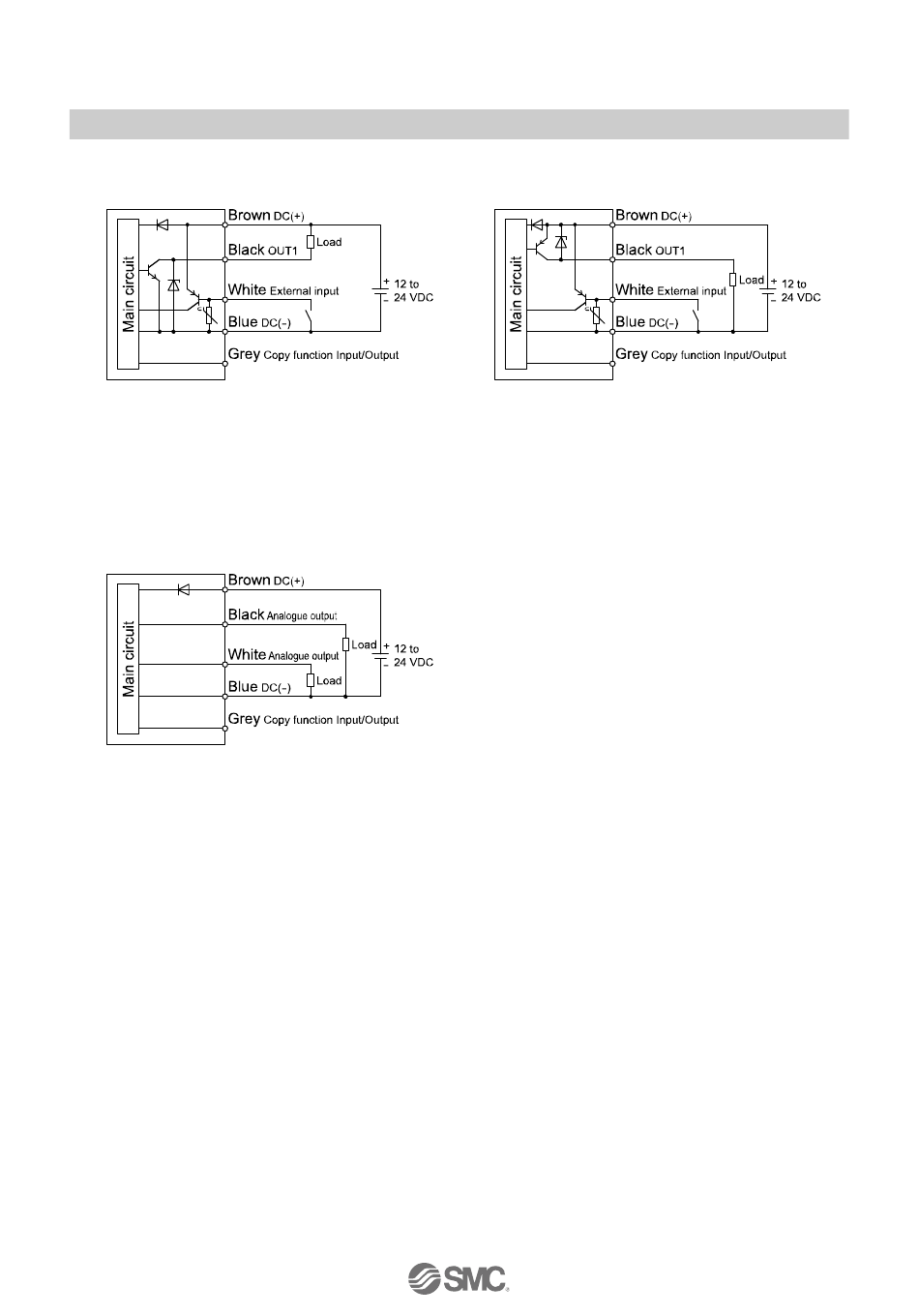

NPN + External input type
PF3W30G
Max. 28 V, 80 mA
Internal voltage drop 1 V or less
External input: Voltage free contact
Reed or solid state input 30 ms
min. duration
Analogue 2 output type
PF3W30J/PF3W30K
J: Analogue output 1 to 5 V
Output impedance 1 kΩ
K: Analogue output 4 to 20 mA
Max. load impedance
When power supply is 12 V: 300 Ω
When power supply is 24 V: 600 Ω
PNP+ External input type
PF3W30H
Max. 80 mA
Internal voltage drop 1.5 V or less
External input: Voltage free contact
Reed or solid state input 30 ms
min duration
