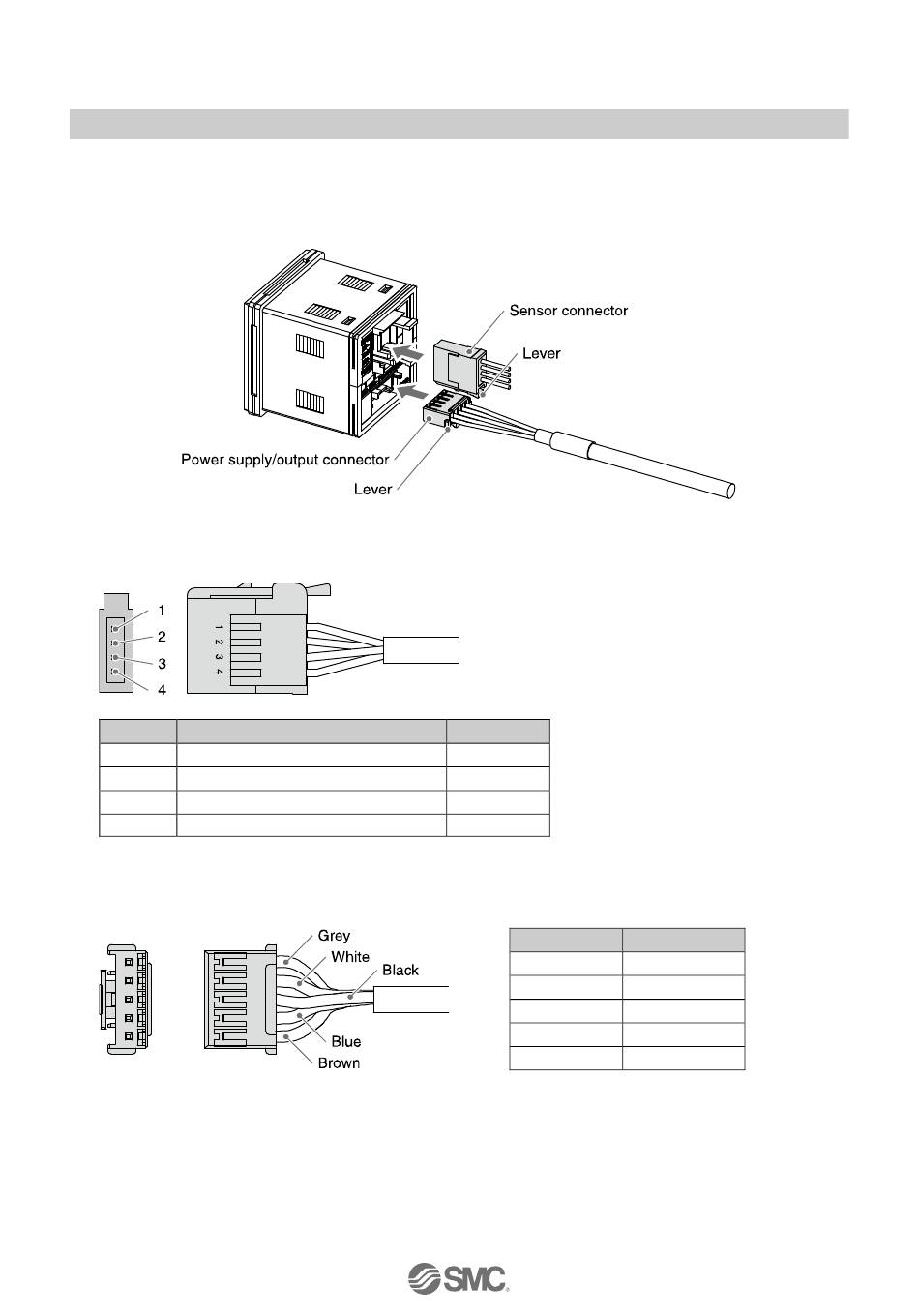

■Wiring

Connecting and disconnecting of the sensor connector and power supply/output connector
•When connecting, insert the connectors straight into the body until it clicks.
•To remove the connectors, push the lever downward with your thumb, and pull the connectors out straight.

Sensor connector

Pin No.
1 DC(+)
2 N.C. / temp. analogue input (1 to 5 V)
3 DC(-)
4 flow analogue input (1 to 5 V)
Power supply/output connector
Description
-17-
Wire colour
Brown
White
Blue
Black
Description
COPY
OUT2
OUT1
DC(-)
DC(+)
Wire colour
Grey
White
Black
Blue
Brown
No.PF※※-OMN0012-I
