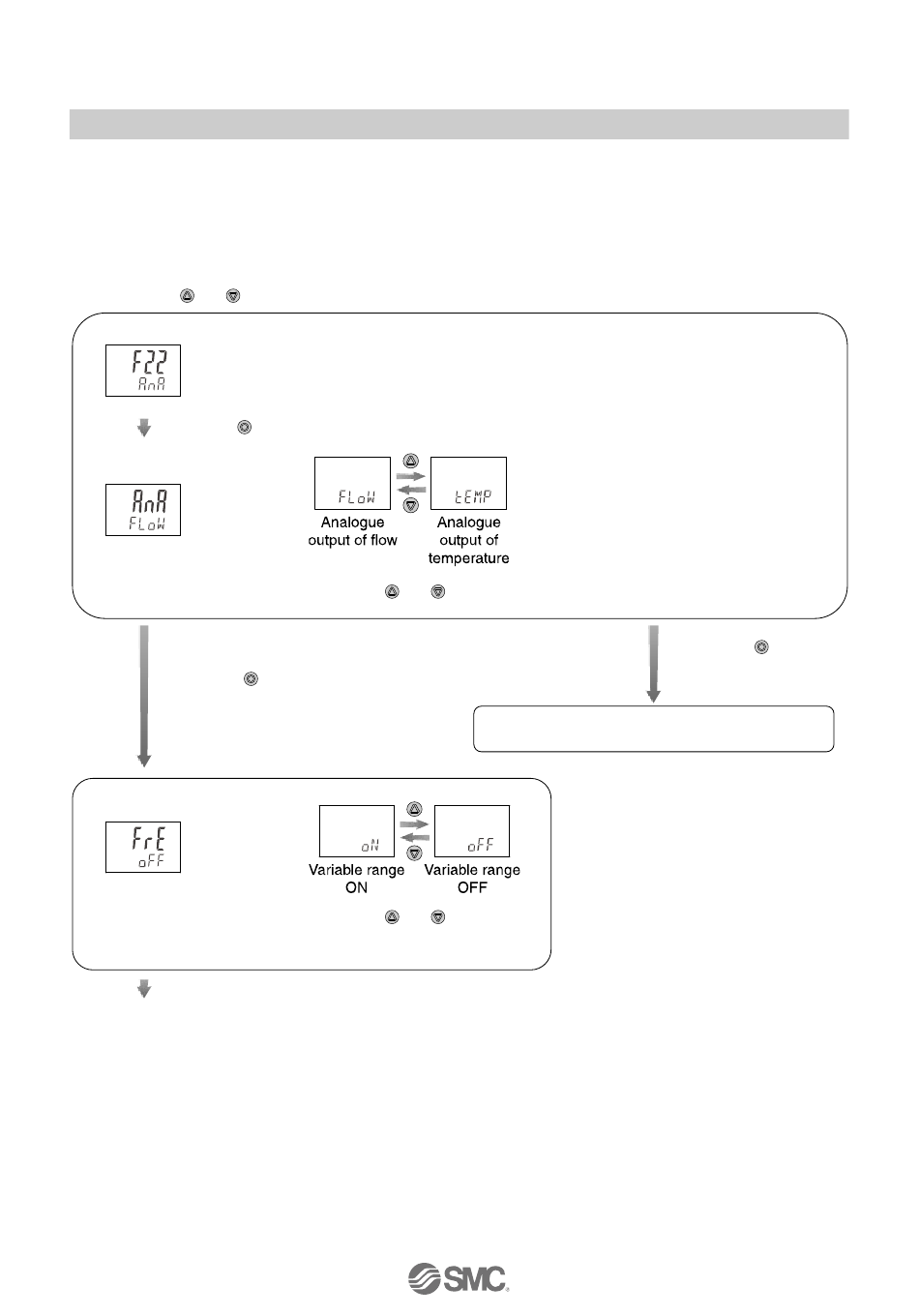

■[F22] Setting of analogue output
This function can be used only when the optional analogue output is present.
If the optional temperature sensor is fitted, the analogue output of fluid temperature can be selected.
The flow that generates the output voltage (= 5 V) or output current (= 20 mA) at the span side of analogue
output can be variable. (This does not apply if the analogue output to the temperature sensor is selected.)
<Operation>
Press the or
The sub screen displays [AnA] and the current set value alternately.
∗: If the analogue output is not present, the sub screen displays [AnA] and [- - -] alternately.
Press the
Sub screen
Press the
When the "FLoW" is
selected.
Sub screen
(Continued)
button in function selection mode to display [F22] on the main screen.
button.
Press the or
button.
Press the or
select.
button to select.
[F22] Setting of analogue output is completed.
button to
-48-
Press the button.
When the "tEMP" is
selected.
