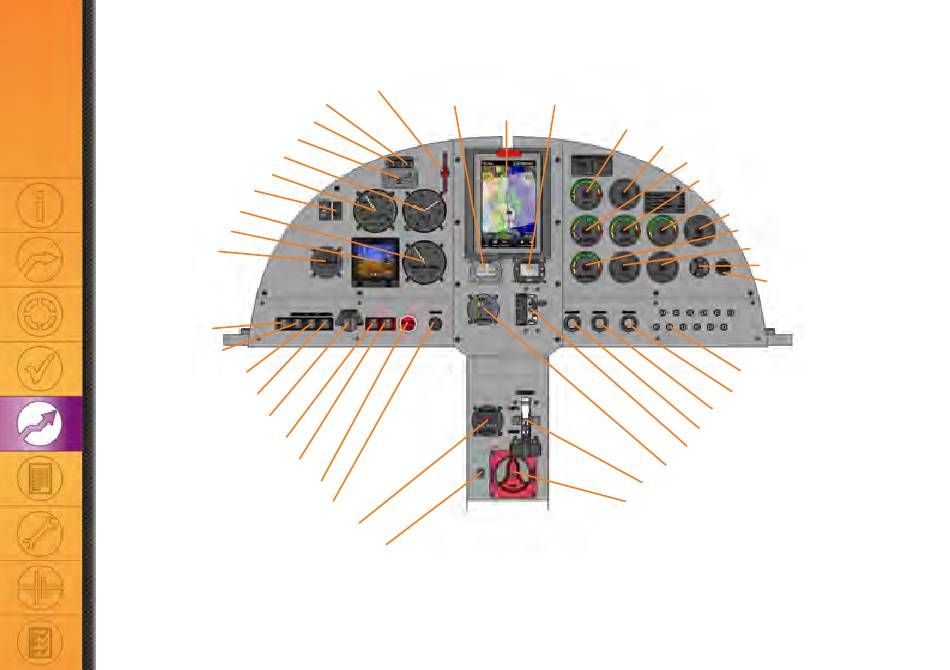

Instrument panel scheme

Emergency Parachute System handle
Transciever
Transponder
Charging LED
GPS
Fuel pump LED
Engine speed ind.
Slip ball
Manifold pressure ind.
Altimeter
Oil pressure ind.
Airspeed ind.
Oil temperature ind.
Trim position ind.
Coolant temp. ind.
Vertical speed ind.
Engine hours
EFIS-Garmin G5
Fuel pressure ind.
Fuel gauge Left/Right
Compass
Socket USB 5V/2,1A
Socket 12V
Landing light switch
Position light switch
Fuel pump switch
Fuse switches
HEATING PULL ON - handle
Avionics switch
VENTILATION PULL (right) ON - handle
Master switch
VENTILATION (left)PULL ON - handle
Magneto A switch
Flap control lever
Magneto B switch
Flap position display
Starter button
Landing gear control lever
Choke Fuel cock
Landing gear position display
Landing gear position indicator
