7.3.5. Flap control system

The Wing Flap Control System controls is handled electrical strut. Movement is carried by the system of gears, levers
and torque tubes on flaps.
The whole complex is designed so that both of the flaps slides simultaneously, therefore it is impossible that the slide
will be not on an even keel.

Operation

The flaps lever is used for opening and retracting flaps. For moving the flaps, unlock the flaps lever by moving right and
than move flaps lever to selected position. Then lock flaps lever by moving left. The flaps lever position for takeoff is in
the middle of range of the flaps lever move. The flaps position for landing is in the bottom position of the range of the
flaps lever move. For retracting the flaps unlock the flaps lever (by moving right), then move the flaps lever to selected
position and then lock flaps lever by moving left.

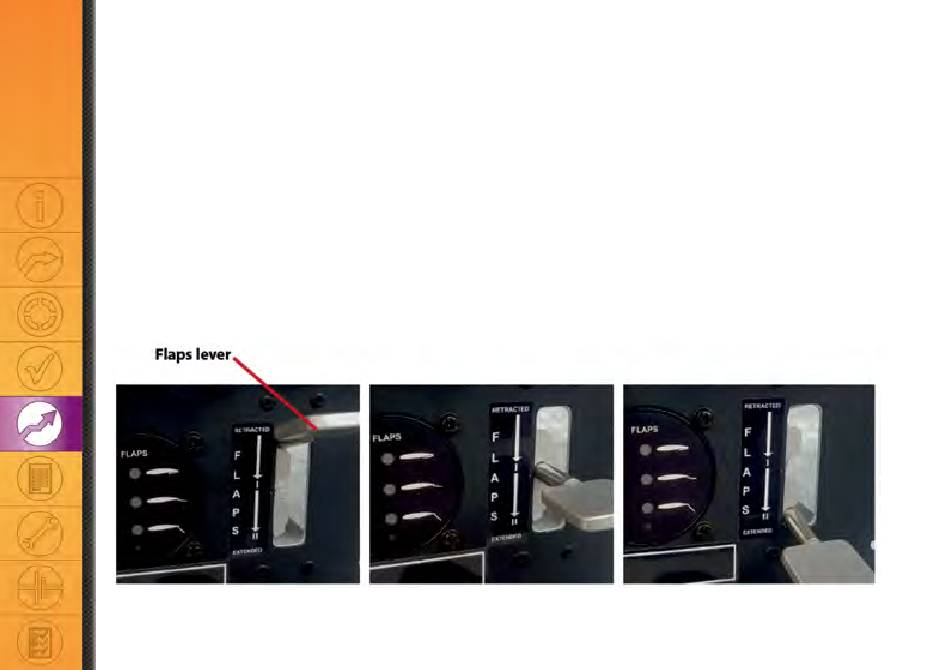

RETRACTED position
TAKEOFF position
LANDING position
