Electrical connections

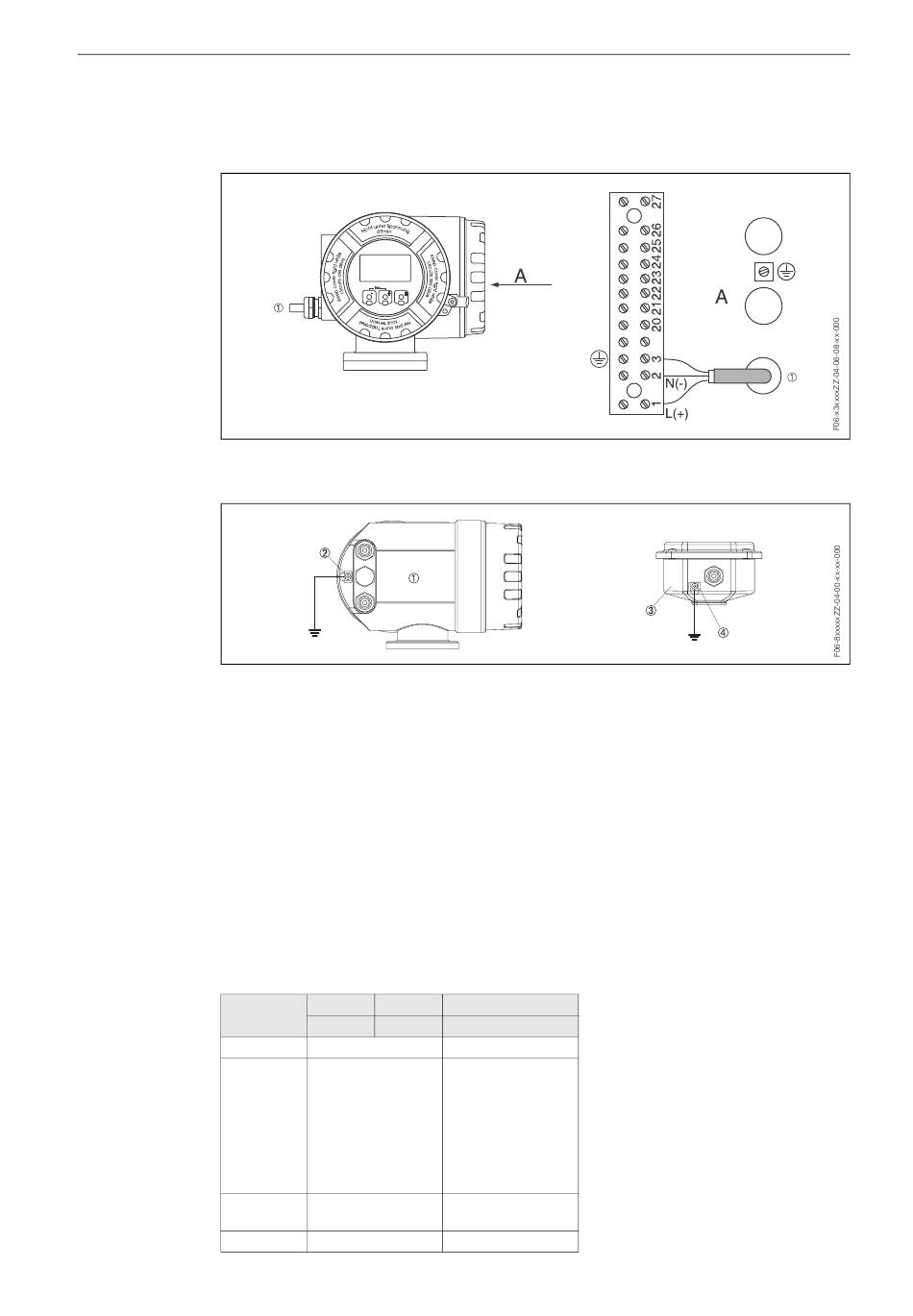

Power supply connection
➀ = Power supply cable
Fig. 13:
A = View A
Fig. 14: Ground terminal for potential equalisation
Caution:
N The transmitter ➀ (compact and remote version) is to be securely connected to the
potential equalization system using the screw terminal ➁ on the outside of the trans-
mitter housing.
N With the remote version, the sensor's wiring compartment housing ➂ is to be
grounded using the external screw terminal ➃. Alternatively, the sensor can be con-
nected to the potential equalization system via the pipeline when a ground connection
according to regulations can be assured.
The table below contains the values that are identical for all versions, irrespective of the
type code.
Transmitter Promass 83
Teminals 1
L (+)
Power supply ➀
Designation
Functional AC: U = 85...260 V
values or
AC: U = 20...55 V
or
DC: U = 16...62 V
Power consumption:
15 VA / 15 W
Intrinsically
no
safe circuit
U = 260 V AC
m
PROline Promass 83 FOUNDATION Fieldbus
2 3
N (–)
Protective earth
Caution:
Follow ground
network requirements
for the facility
