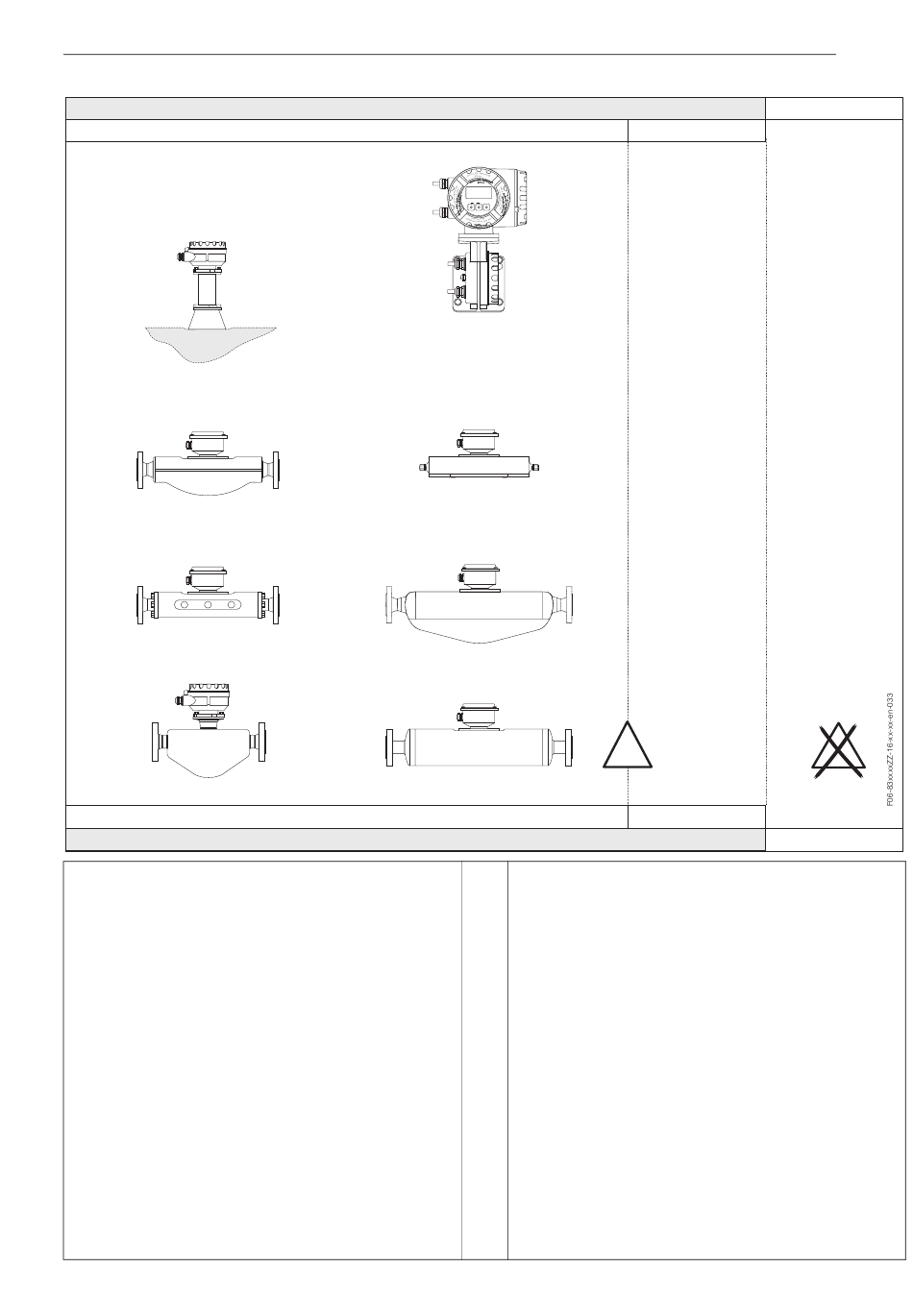

PROline Promass 83 FOUNDATION Fieldbus
Promass 83 F
remote version for heating
(long-necked version)
Promass 83 F
DN 8...150
Promass 83 M
DN 8...80
Promass 83 E
DN 8...50
• Transmitter Promass 83 FOUNDATION Fieldbus in:
EEx de [ia] IIC or EEx d [ia] IIC
• Ex d housing in: EEx d resp. EEx de
(an appropriate cable entry is to be selected, depending on the
explosion protection type)
• Sensor in EEx ia IIC:
Promass A DN 1...4
Promass F DN 8...50
Promass I DN 8...40
Promass M DN 8...50
Promass E DN 8...50
Promass H DN 8...40
• The maximum permitted cable length is 120 m when using cable
type (6 Li9YCYFCY or 6 Li9YFCY / 0.38 mm
reasons, the maximum cable length is limited to 20 m.
• The zone 0 is permitted in the measuring tube for the sensors
Promass F, DN 8...50
(device characteristic Promass 83F**-******3/4/5/6*****)
• For ambient and fluid temperature ranges, and temperature
class, see Page 4.
➄
• For number references see Page 11.
Endress+Hauser
Hazardous area
II2G
Promass 83
➆
➆
➆
➆
Zone 1
Hazardous area
2
), however for signal
r
r
➄
Esc
-
+ E
➅
Promass 83 A
DN 1...4
➆
Promass 83 H
DN 8...50
➆
Promass 83 I
DN 8...50
➆
• Transmitter Promass 83 FOUNDATION Fieldbus in:
EEx de [ia] IIB or EEx d [ia] IIB resp.
EEx de [ia] IIC/IIB or EEx d [ia] IIC/IIB
• Ex d housing in: EEx d resp. EEx de
(an appropriate cable entry is to be selected, depending on the
explosion protection type)
• Sensor in EEx ia IIB:
Promass F DN 80...150
Promass I DN 50, DN 40 FB (full bore)
Promass M DN 80
Promass H DN 50
or
• The maximum permitted cable length is 120 m when using cable
type (6 Li9YCYFCY or 6 Li9YFCY / 0.38 mm
reasons, the maximum cable length is limited to 20 m.
• The zone 0 is permitted in the measuring tube for the sensors
Promass F, DN 80...150
(device characteristic Promass 83F**-******3/4/5/6*****)
• For ambient and fluid temperature ranges, and temperature
class, see Page 4.
• For number references
II3G
EX
Zone 2
2
), however for signal
➄
see Page 11.
0
<
Safe area
EX
Safe area
3
