Remote version Promass 83

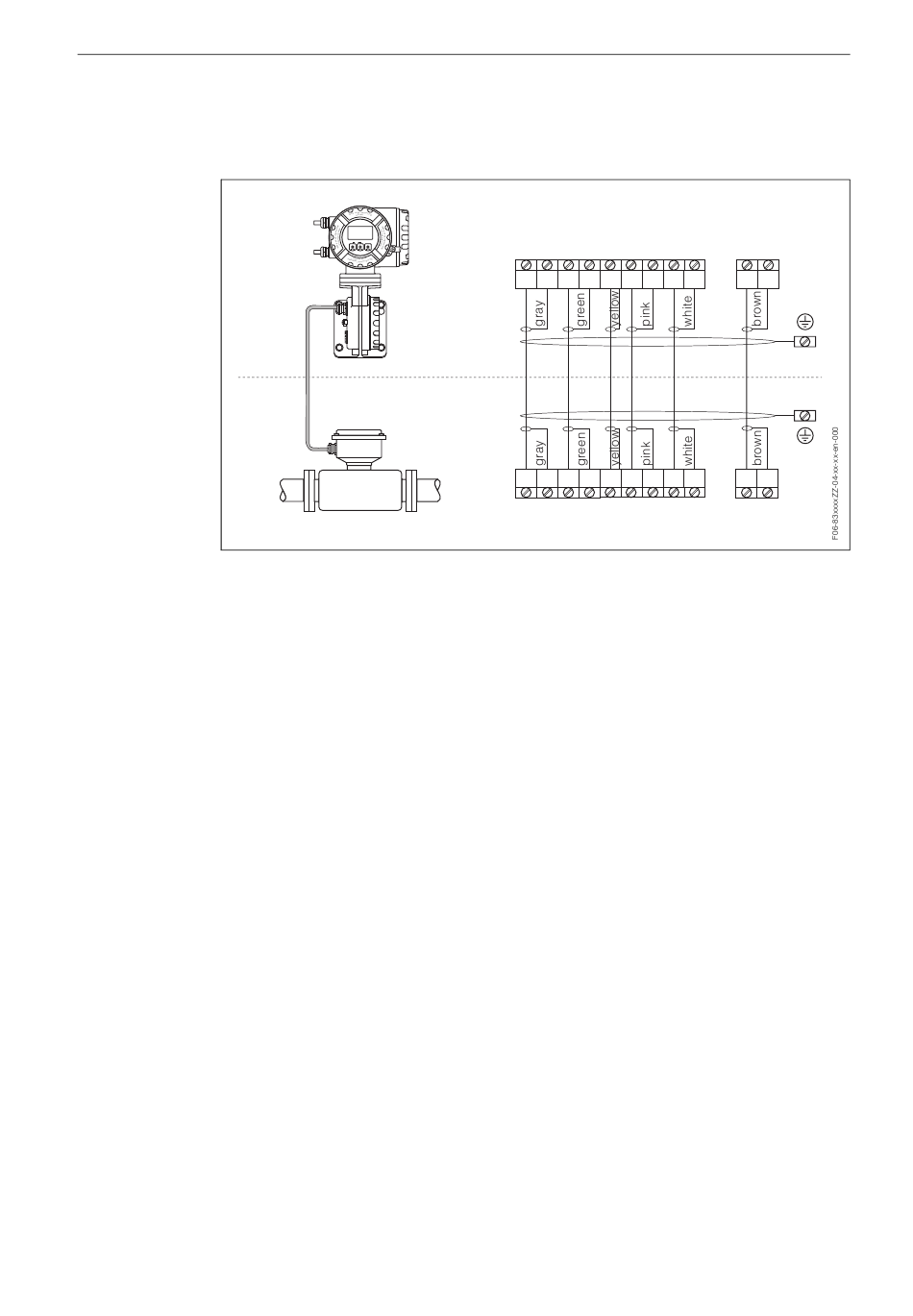

Connection between F/M/E/A/H/I sensor and Promass 83 FOUNDATION Fieldbus
transmitter
r
Esc
-
+
E
z
➂ = sensor cable
Fig. 16:

Cable specifications

The sensor cable connection between sensor and transmitter has an EEx ia type
of protection rating.
Caution!
Use only the cable sets supplied by E+H.
PROline Promass 83 FOUNDATION Fieldbus
Pipe
S1
S1 S2 S2
TM TM TT TT
GND
+
+
+
+
4
5
6
7
8
9
10
11
12
4
5
6
7
8
9
10
11
12
+
+
+
+
Pipe
S1
S1 S2 S2
TM TM TT TT
GND
41
42
41
42
