Technical Information

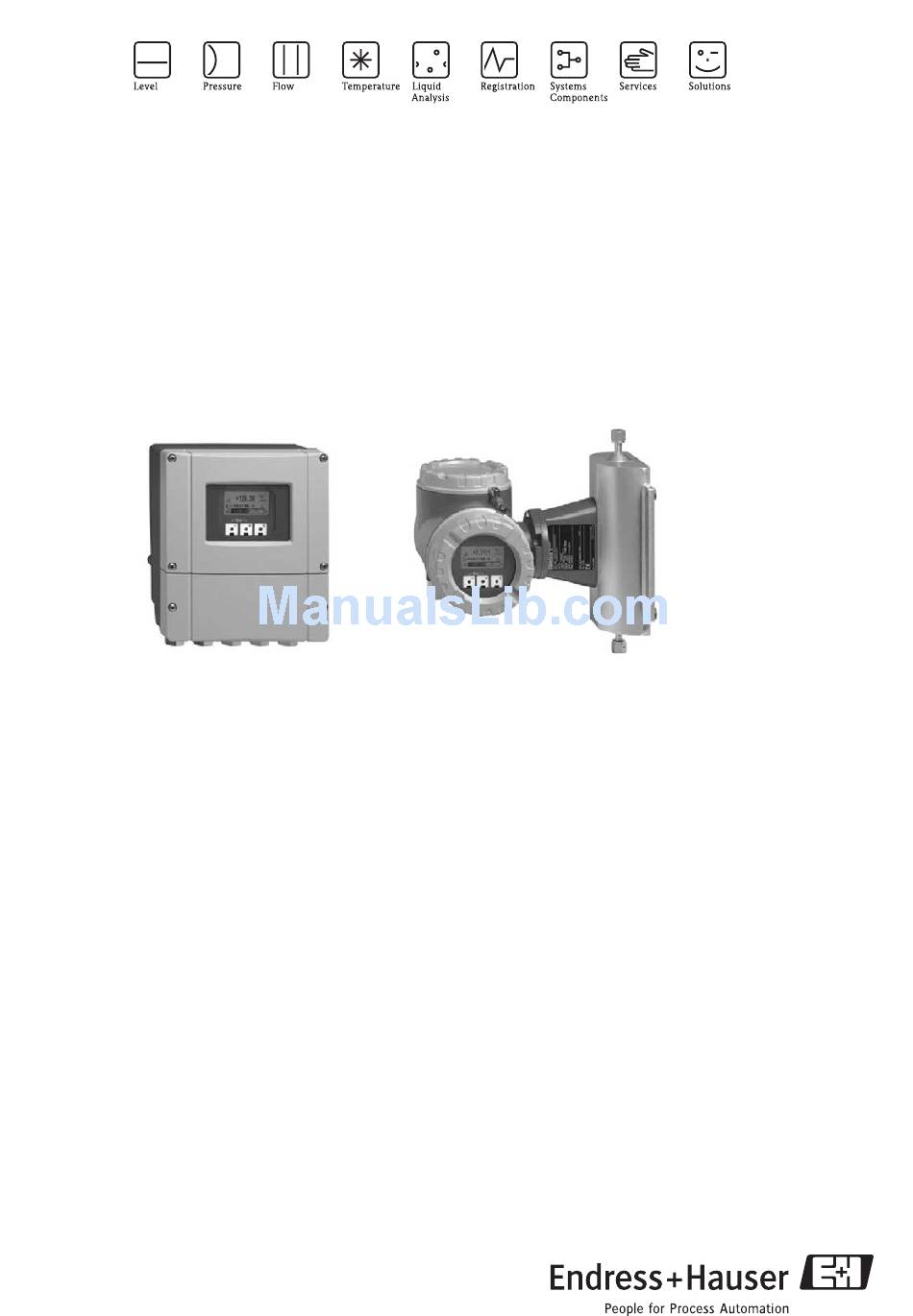

Proline Promass 80A, 83A
Coriolis Mass Flow Measuring System
The single-tube system for highly accurate measurement of
very small flows
Application
The Coriolis measuring principle operates independently
of the physical fluid properties, such as viscosity and
density.
• Suitable for continuous measurement, filling and
dosing of very small flows.
• Extremely accurate measurement of liquids and
gases such as emulsions, additives, flavouring,
insulin, gases for high pressure and low pressure
• Fluid temperatures up to +200 °C (+392 °F)
• Process pressures up to 400 bar (5800 psi)
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS, IECEx, NEPSI
Approvals in the food industry/hygiene sector:
• 3A, FDA, EHEDG
Connection to process control system:
• HART, PROFIBUS DP/PA, FOUNDATION Fieldbus,
MODBUS
Relevant safety aspects:
• Pressure Equipment Directive, SIL-2
• Purge connection or rupture disk (optional)
TI054D/06/en/10.09
71104043
Your benefits
The Promass measuring devices make it possible to
simultaneously record several process variables (mass/
density/temperature) for various process conditions
during measuring operation.
The Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Software options for batching and concentration
measurement for extended range of application
• Diagnostic ability and data back-up for increased
process quality
The Promass sensors, tried and tested in over
100000 applications, offer:
• Multivariable flow measurement in compact design
• Insensitivity to vibrations thanks to balanced single-
tube measuring system
• Immune from external piping forces due to robust
design
• Easy installation without taking inlet and outlet runs
into consideration
