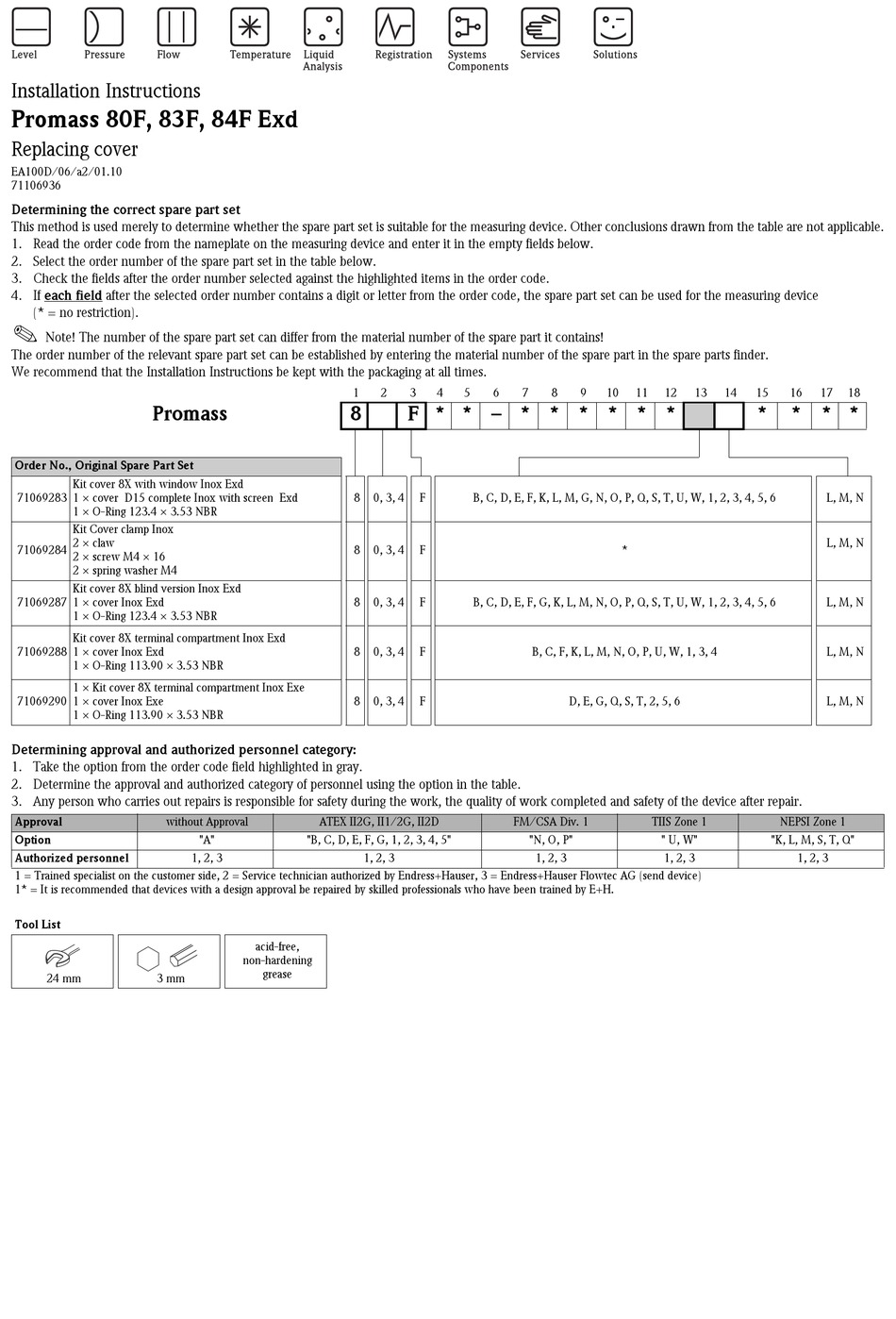

Endress+Hauser Promass 80F Installation Instructions

Installation Instructions
Promass 80F, 83F, 84F Exd
Replacing cover
EA100D/06/a2/01.10
71106936

Determining the correct spare part set

This method is used merely to determine whether the spare part set is suitable for the measuring device. Other conclusions drawn from the table are not applicable.
1. Read the order code from the nameplate on the measuring device and enter it in the empty fields below.
2. Select the order number of the spare part set in the table below.
3. Check the fields after the order number selected against the highlighted items in the order code.
4. If each field after the selected order number contains a digit or letter from the order code, the spare part set can be used for the measuring device
(* = no restriction).
!
Note! The number of the spare part set can differ from the material number of the spare part it contains!
The order number of the relevant spare part set can be established by entering the material number of the spare part in the spare parts finder.
We recommend that the Installation Instructions be kept with the packaging at all times.
Promass
Order No., Original Spare Part Set
Kit cover 8X with window Inox Exd
71069283 1 × cover D15 complete Inox with screen Exd
1 × O-Ring 123.4 × 3.53 NBR
Kit Cover clamp Inox
2 × claw
71069284
2 × screw M4 × 16
2 × spring washer M4
Kit cover 8X blind version Inox Exd
71069287 1 × cover Inox Exd
1 × O-Ring 123.4 × 3.53 NBR
Kit cover 8X terminal compartment Inox Exd
71069288 1 × cover Inox Exd
1 × O-Ring 113.90 × 3.53 NBR
1 × Kit cover 8X terminal compartment Inox Exe
71069290 1 × cover Inox Exe
1 × O-Ring 113.90 × 3.53 NBR

Determining approval and authorized personnel category:

1. Take the option from the order code field highlighted in gray.
2. Determine the approval and authorized category of personnel using the option in the table.
3. Any person who carries out repairs is responsible for safety during the work, the quality of work completed and safety of the device after repair.
Approval without Approval
Option
Authorized personnel
1 = Trained specialist on the customer side, 2 = Service technician authorized by Endress+Hauser, 3 = Endress+Hauser Flowtec AG (send device)
1* = It is recommended that devices with a design approval be repaired by skilled professionals who have been trained by E+H.

Tool List

24 mm 3 mm
1
8
8
8
8
8
8
ATEX II2G, II1/2G, II2D
"A" "B, C, D, E, F, G, 1, 2, 3, 4, 5"
1, 2, 3
acid-free,
non-hardening
grease
2 3 4 5 6 7
F * * – * * * * * *
0, 3, 4 F B, C, D, E, F, K, L, M, G, N, O, P, Q, S, T, U, W, 1, 2, 3, 4, 5, 6
0, 3, 4 F
0, 3, 4 F B, C, D, E, F, G, K, L, M, N, O, P, Q, S, T, U, W, 1, 2, 3, 4, 5, 6
0, 3, 4 F B, C, F, K, L, M, N, O, P, U, W, 1, 3, 4
0, 3, 4 F
FM/CSA Div. 1
"N, O, P"
1, 2, 3
8 9 10 11 12 13
*
D, E, G, Q, S, T, 2, 5, 6
TIIS Zone 1
" U, W"
1, 2, 3 1, 2, 3
14 15 16 17 18
* * * *
L, M, N
L, M, N
L, M, N
L, M, N
L, M, N
NEPSI Zone 1
"K, L, M, S, T, Q"
1, 2, 3
