Endress+Hauser PROline promass 83 II2G Manual page 38

0
<

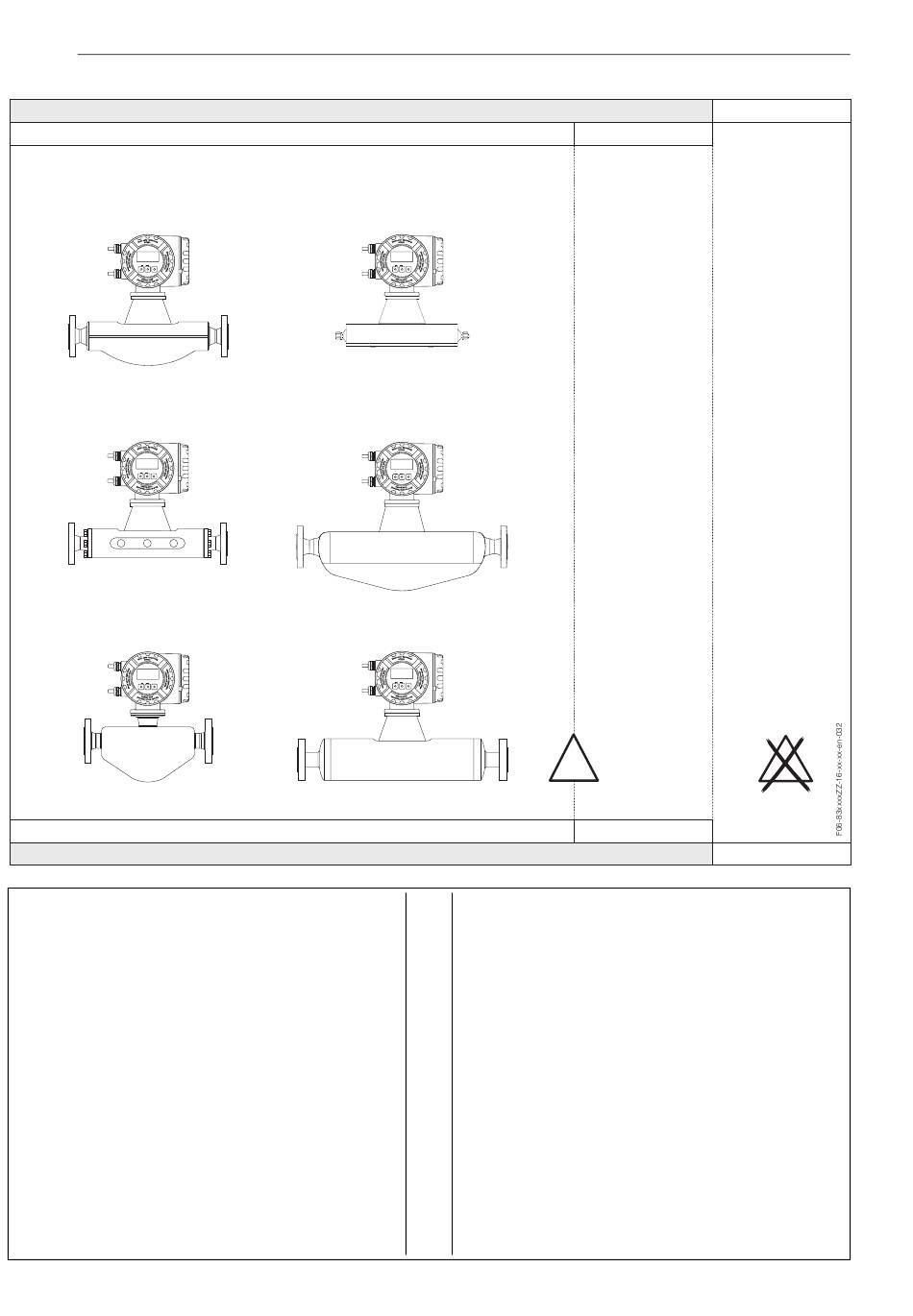

Promass 83 F
DN 8...150
r r
Esc
- + E
Promass 83 M
DN 8...80
r r
Esc
- +
E
Promass 80 E
DN 8...50
r r
Esc
- +
E
• Transmitter Promass 83 FOUNDATION Fieldbus in:
EEx de [ia] IIC or EEx d [ia] IIC
• Ex d housing in: EEx d resp. EEx de
(an appropriate cable entry is to be selected, depending on the
explosion protection type)
• Sensor in EEx ia IIC:
Promass A DN 1...4
Promass F DN 8...50
Promass I DN 8...40
Promass M DN 8...50
Promass E DN 8...50
Promass H DN 8...40
• The zone 0 is permitted in the measuring tube for the sensors
Promass F, DN 8...50
(device characteristic Promass 83F**-******3/4/5/6*****)
• For ambient and fluid temperature ranges, and temperature
class, see Page 4.
➄
• For number references
2
Hazardous area
II2G
➄
➄
➄
Zone 1
Hazardous area
see Page 11.
Promass 83 A
DN 1...4
r r
➄
Esc
- + E
Promass 83 H
DN 8...50
r r
➄
Esc
- + E
Promass 83 I
DN 8...50
r r
➄
Esc
- + E
• Transmitter Promass 83 FOUNDATION Fieldbus in:
EEx de [ia] IIB or EEx d [ia] IIB resp.
EEx de [ia] IIC/IIB or EEx d [ia] IIC/IIB
• Ex d housing in: EEx d resp. EEx de
(an appropriate cable entry is to be selected, depending on the
explosion protection type)
• Sensor in EEx ia IIB:
Promass F
Promass I
or
Promass M DN 80
Promass H
• The zone 0 is permitted in the measuring tube for the sensors
Promass F, DN 80...150
(device characteristic Promass 83F**-******3/4/5/6*****)
• For ambient and fluid temperature ranges, and temperature
class, see Page 4.
• For number references
PROline Promass 83 FOUNDATION Fieldbus
II3G
EX
Zone 2
DN 80...150
DN 50, DN 40 FB (full bore)
DN 50
➄
see Page 11.
Safe area
EX
Safe area
Endress+Hauser
