Device identification

Transmitter Promass 83 FOUNDATION Fieldbus and F/M/E/A/H/I sensor
➈ ➂
ENDRESS+HAUSER
PROMASS 83
83F25-XXXXXXXXXXXX
Order Code:
12345678901 2003
Ser.No.:
ABCDEFGHJKLMNPQRST
TAG No.:
20-55VAC/16-62VDC
50-60Hz 15VA/15W
FOUNDATION Fieldbus Exi ITK 4.0
DEVICE ID 452B481051-12345678901
i
XA053D/06/../....
R
0032
II2(1)G
F OUNDATION
➀ ➅ ➇

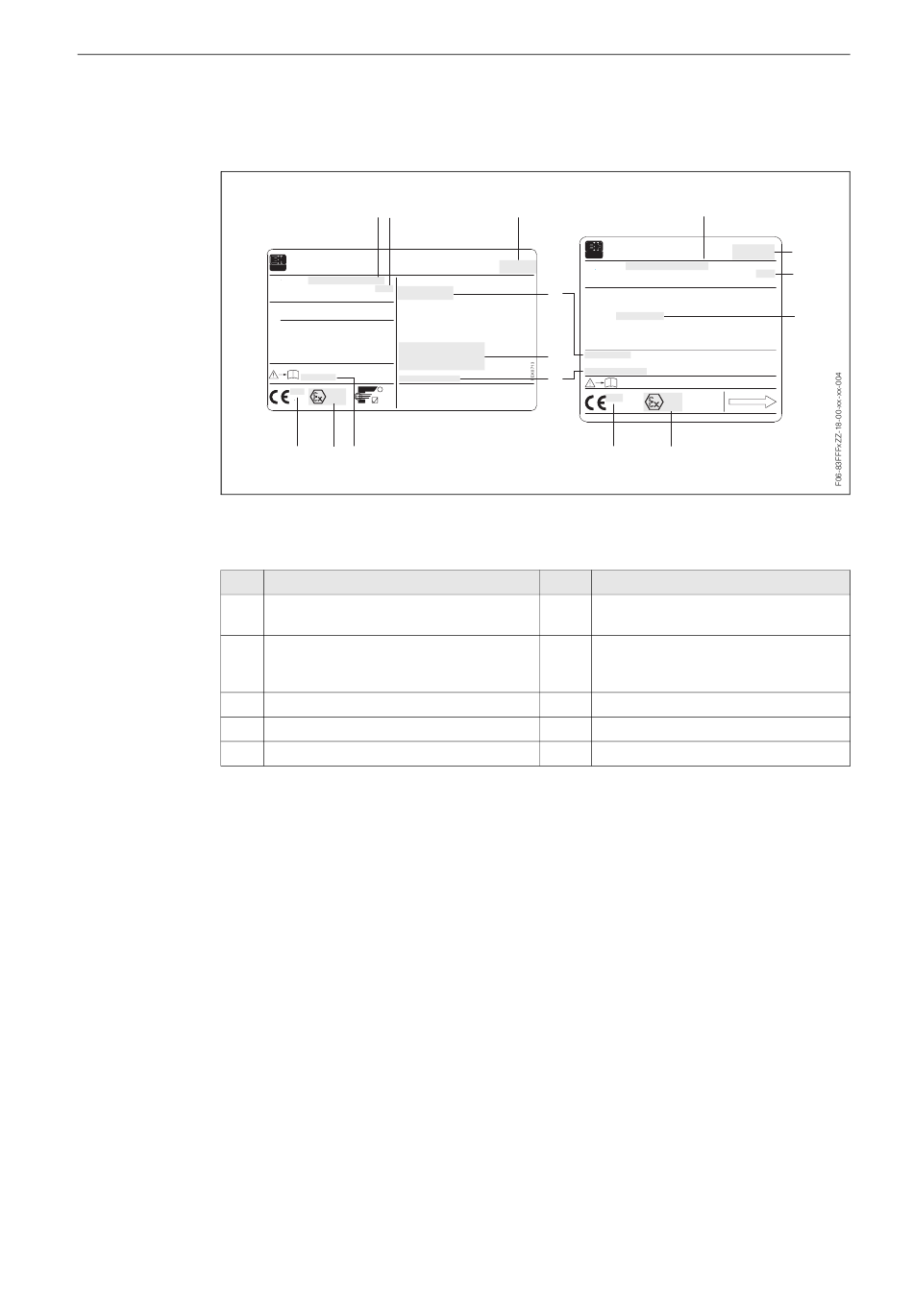

Fig. 24: Nameplate of transmitter and nameplate of sensor (example)
Key to nameplates (Figure 12)
No. Meaning
Notified body for QA supervision:
➀
TÜV-Hannover/Sachsen-Anhalt e.V.
➁
Place of manufacture
➂
Year of manufacture
➃
Ambient temperature range
➄
Maximum medium temperature
PROline Promass 83 FOUNDATION Fieldbus
➁
4153 Reinach
Switzerland
IP67
➆
SYST EEx ia/ib IIC/IIB
EEx de [ia] IIC T1-T6
DMT 00 ATEX E 074 X
After de-energizing, delay
10 Minutes before opening.
➉
Nach dem Abschalten 10 Minuten
warten vor dem Öffnen.
➃
-20°C < Tamb < +60°C
Pat. EP 261 435 EP 262 573 EP 618 680
Pat. US 5,479,007 5,648,616
Pat. US 4,768,384 4,801,897
No.
➅
➆
➇
➈
➉
➈
ENDRESS+HAUSER
4153 Reinach
PROMASS F
Switzerland
83F25-XXXXXXXXXXXX
Order Code:
12345678901
Ser.No.:
ABCDEFGHJKLMNPQRST
TAG No.:
2.5100 / -11 DN25 / 1"
K-factor: Size:
DN25 DIN PN100
1.4539 / 904L
Materials:
200°C / 392°F
TMmax.:
40bar / 600psi Container
+/- 0.001g/cc
Density cal.:
5P-CAL, 3.1B
EEx ia IIC T1-T6
DMT 00 ATEX E 074 X
-20°C < Tamb < +60°C
i
0032
II2G
Pat. US 5,796,011
➀
➅
Meaning
Device group and device category to
directive 94/9/EC
Type of protection and explosion group for
the Promass 83 FOUNDATION Fieldbus
measuring system
Applicable Ex documentation
Type code
Warning
Endress+Hauser
➁
➂
2003
➄
IP67
