3.1.2 LEDs

There are 6 LEDs on the ADM-PCIE-8K5-FH, 3 of which are general purpose and whose meaning can be
defined by the user. The other four have fixed functions described below:
Comp.
Function
Ref.
D4
DONE
D2
USER_LED_G0
D8
USER_LED_G1
D7
USER_LED_R
D5
Status 0
D6
Status 1
Use IO Standard "LVCMOS33" when driving the user LED pins.
Page 6

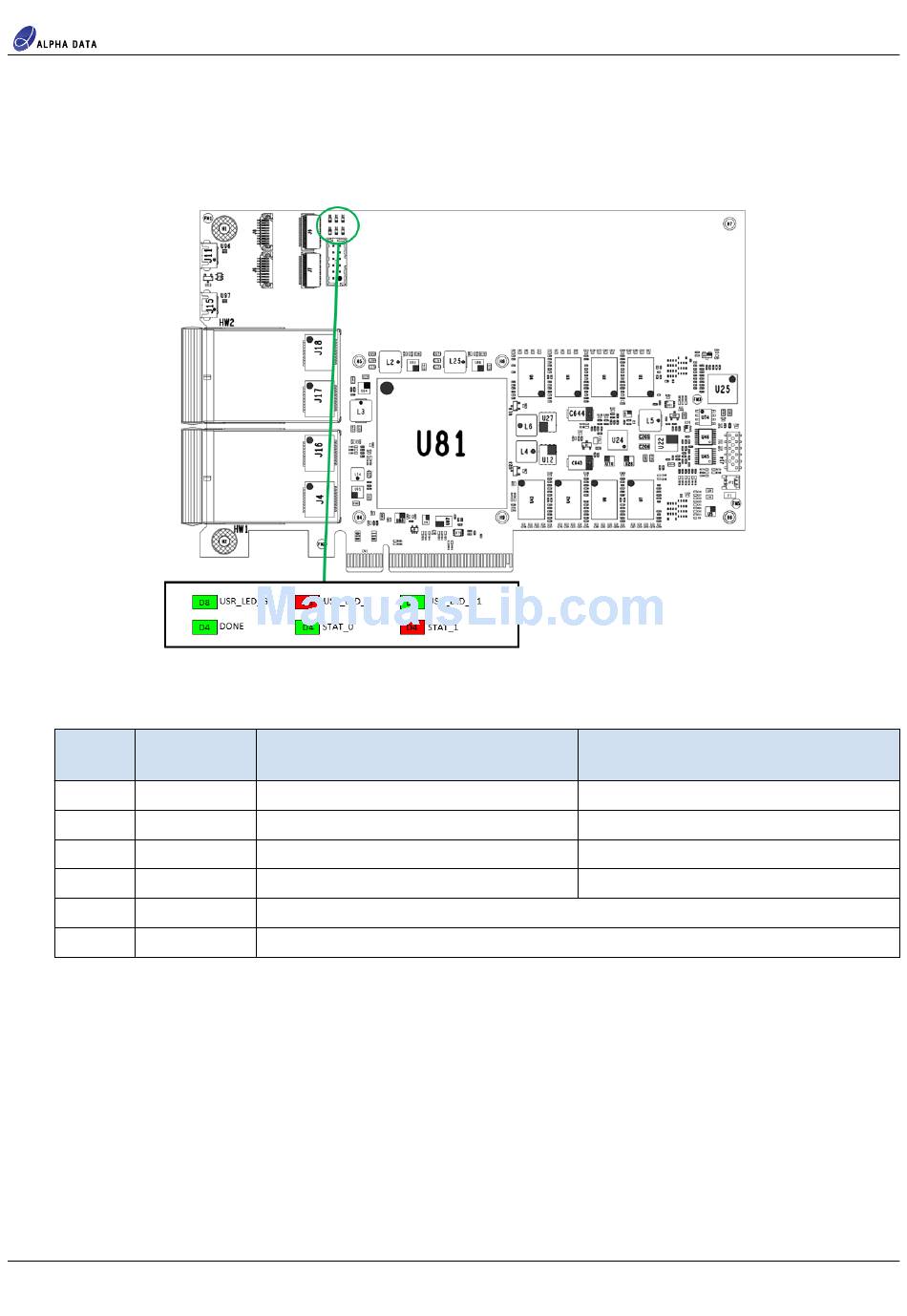

Figure 6 : LEDs
ON State
FPGA is configured
User defined '0' pin AT19
User defined '0' pin AU19
User defined '0' pin AU20
See
See
Table 4 : LED Details
ADM-PCIE-8K5-FH User Manual
FPGA is not configured
User defined '1' pin AT19
User defined '1' pin AU19
User defined '1' pin AU20
Status LED Definitions
Status LED Definitions
OFF State
Functional Description
ad-ug-1342_v1_0.pdf
