ADM-PCIE-8V3 User Manual

3.1.2 LEDs

There are 6 LEDs on the ADM-PCIE-8V3, 3 of which are general purpose and whose meaning can be defined by
the user. The other four have fixed functions described below:
Comp.
Function
Ref.
D4 DONE
D8 USER_LED_G0
D2 USER_LED_G1
D7 USER_LED_R
D5 Status 0
D6 Status 1
Use IO Standard "LVCMOS18" when driving the user LED pins.
Functional Description
ad-ug-1308_v1_9.pdf
D2 D4
USER_LED_G1 DONE
FPGA is configured
User defined '0' pin AT27
User defined '0' pin AU27
User defined '0' pin AU23
D5 D6
STAT_1
STAT_0

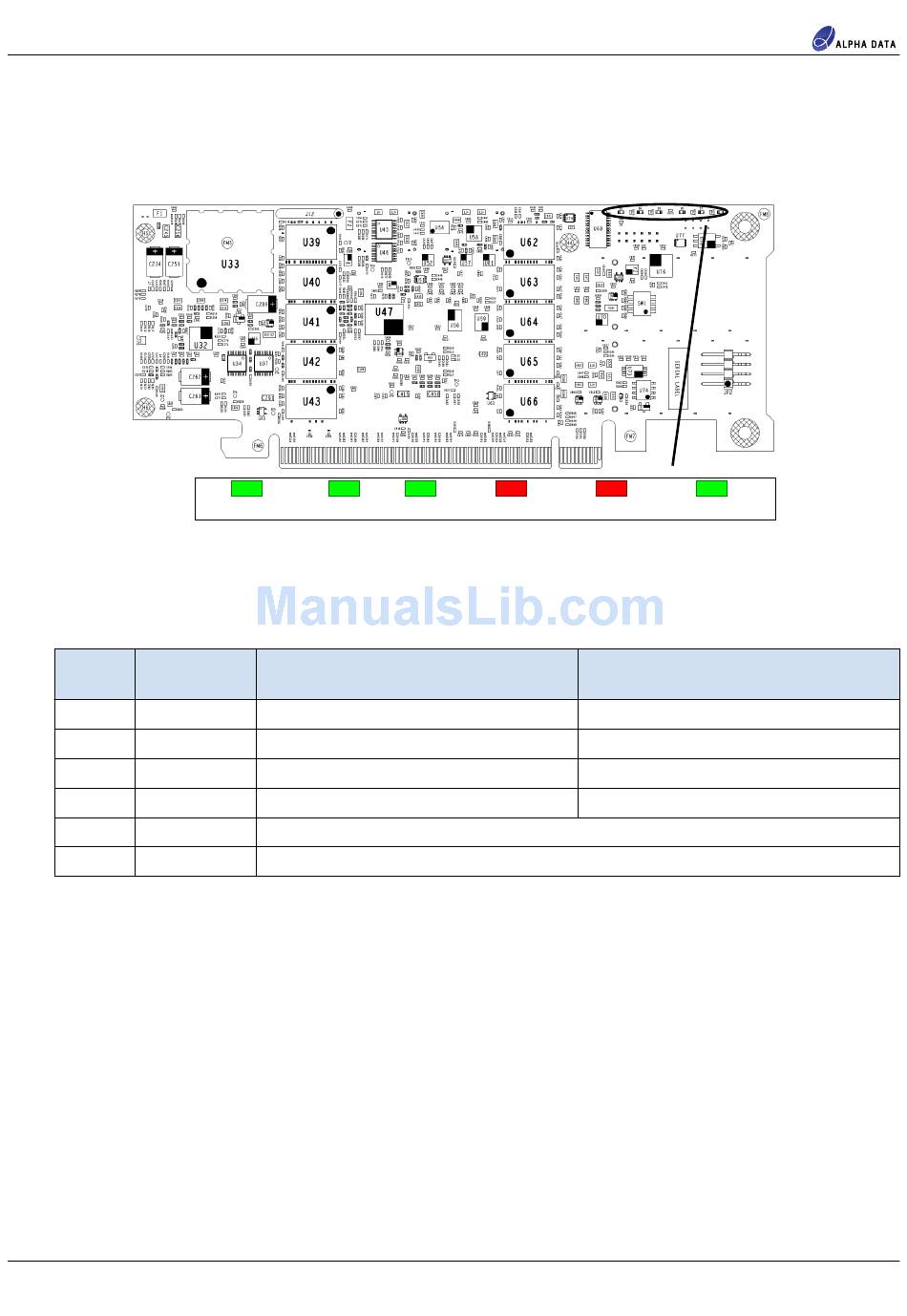

Figure 6 : LEDs
ON State
See Status LED Definitions
See Status LED Definitions
Table 4 : LED Details
D7 D8
USR_LED_R
USR_LED_G0
OFF State
FPGA is not configured
User defined '1' pin AT27
User defined '1' pin AU27
User defined '1' pin AU23
Page 7
