3.1.2 LEDs

There are 9 LEDs on the ADM-PCIE-9V8, 6 of which are general purpose and whose meaning can be defined by
the user. The other 3 have fixed functions described below:
Comp.
Ref.
D1
D2
D8
D11
D10
D12
D6
D7
D9
See Section

Complete Pinout Table

Functional Description
ad-ug-1467_v1_0.pdf
User LEDs
D8
D6
LED_G2
LED_G4
D13
D12
LED_G3
LED_G5
D1
D2
LED_G0
LED_G1

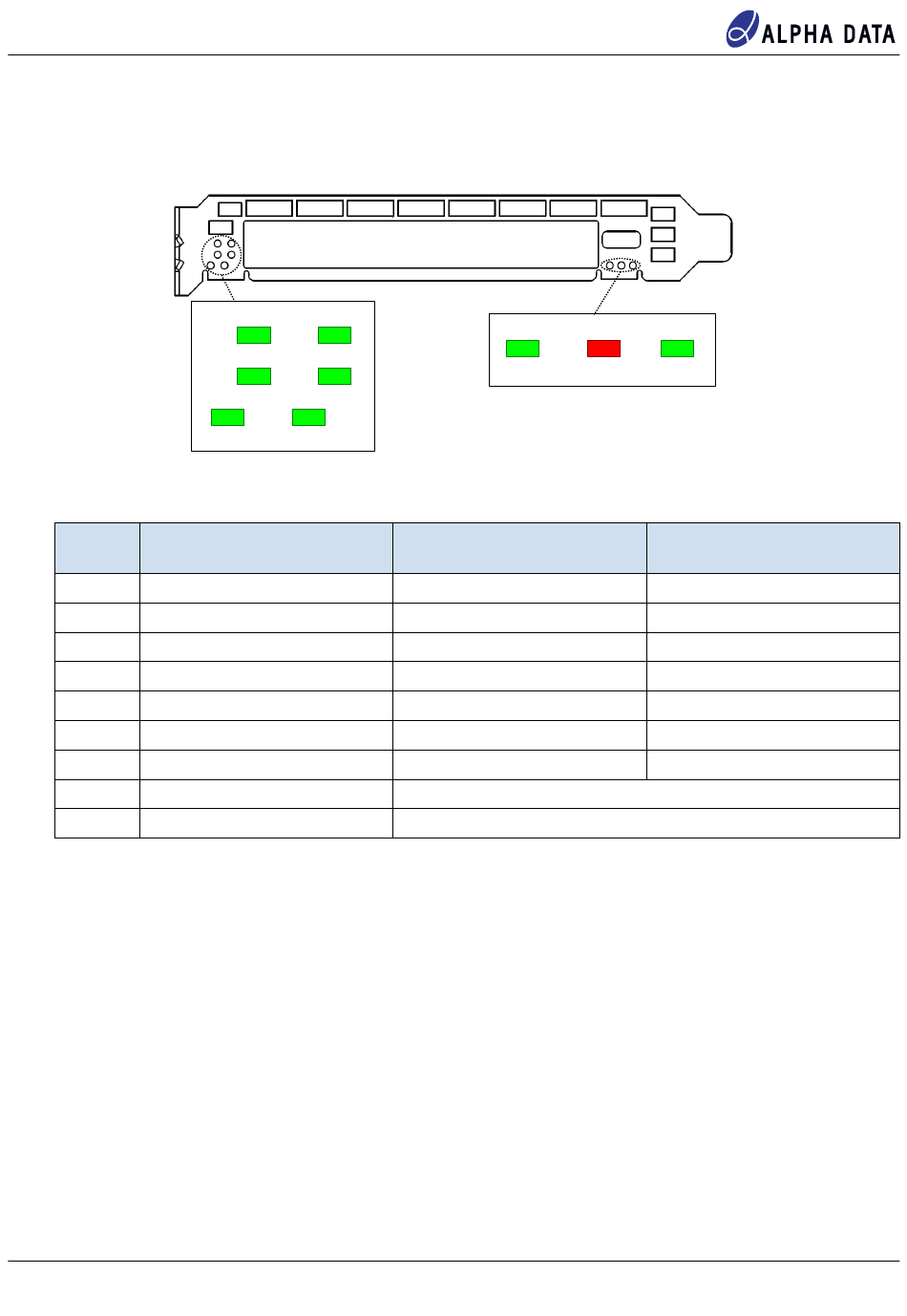

Figure 6 : Front Panel LEDs
Function
USER_LED_G0_1V8
USER_LED_G1_1V8
USER_LED_G2_1V8
USER_LED_G3_1V8
USER_LED_G4_1V8
USER_LED_G5_1V8
DONE
Status 1
Status 0
for full list of user controlled LED nets and pins
Status LEDs
D4
DONE
ON State
User defined '0'
User defined '0'
User defined '0'
User defined '0'
User defined '0'
User defined '0'
FPGA is configured
See
See
Table 5 : LED Details
D5
D7
STAT_1
STAT_0
OFF State
User defined '1'
User defined '1'
User defined '1'
User defined '1'
User defined '1'
User defined '1'
FPGA is not configured
Status LED Definitions
Status LED Definitions
