Load Sharing/Brake - Danfoss iC2-Micro Series Design Manual

Design Guide | iC2-Micro Frequency Converters
FC FC
69
69
68
68
61 61
<10 mm
PE PE
PE PE
1
2

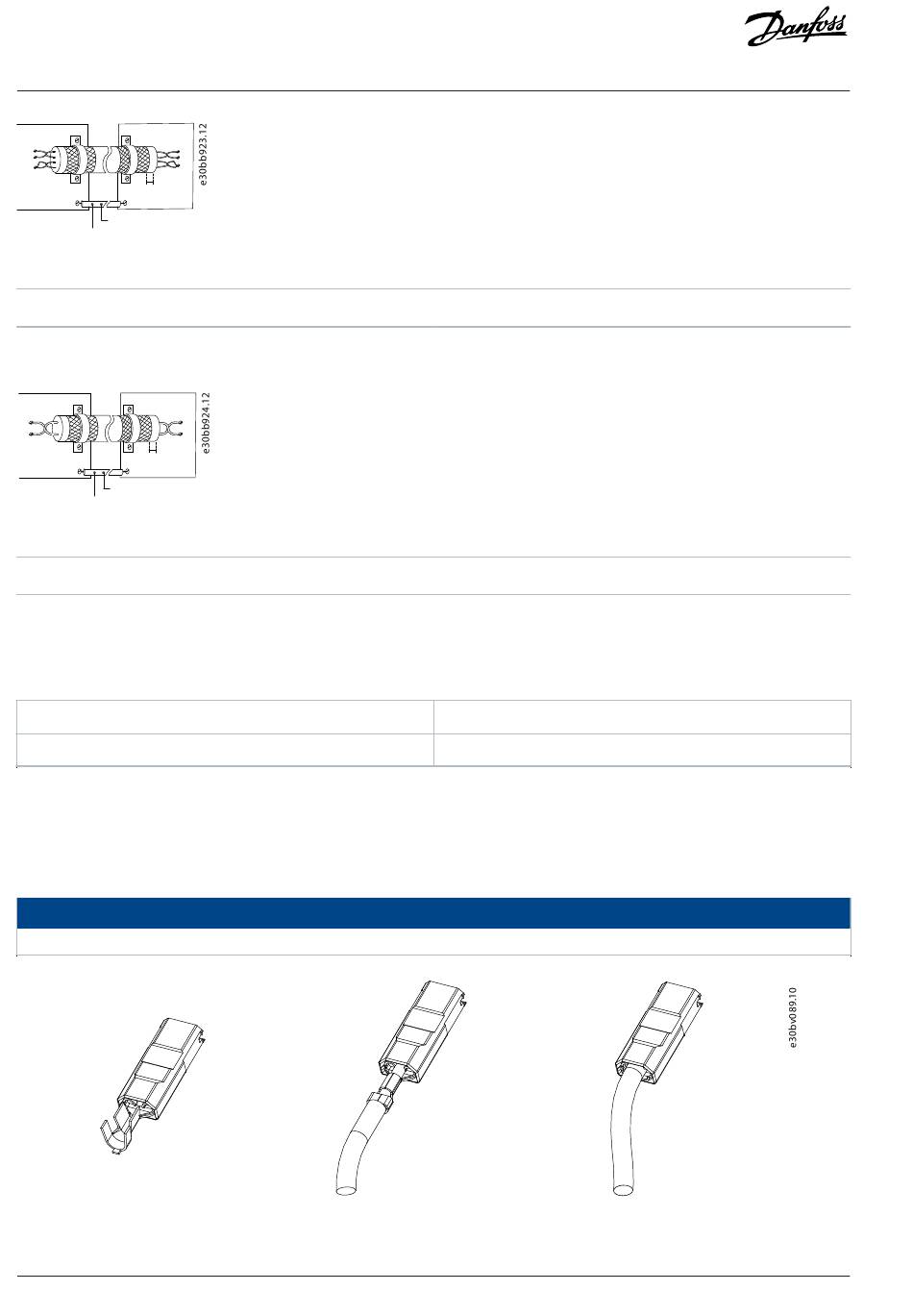

Figure 54: Twisted-pair Cables
1
2
Minimum 16 mm (6 AWG)
Alternatively, the connection to terminal 61 can be omitted.
FC FC
69 68
68 69
<10 mm
PE PE
PE PE
1
2
Figure 55: Twisted-pair Cables without Terminal 61
1
2
Minimum 16 mm (6 AWG)

Load Sharing/Brake

7.10.7
Table 58: Connect Terminals
Load sharing
Brake
For MA01a, MA02a, and MA03a drives, wire with recommended connector (Ultra- Pod Fully Insulated FASTON Receptacles and Tabs,
l
521366-2, TE connectivity).
For other enclosure sizes, mount the wires to the related terminal and tighten. For required maximum screwing torque, see the back
l
of the terminal cover.
Voltage levels of up to 850 V DC may occur between terminals +UDC/+BR and -UDC. Not short-circuit protected.
(1)
Figure 56: Wiring the Connector for Load Sharing and Brake
96 | Danfoss A/S © 2024.08
2 Equalizing cable
2
Equalizing cable
-UDC and +UDC/+BR
-BR and +UDC/+BR
NOTICE
(2)
Electrical Installation Considerations
(3)
AJ402315027937en-000401 / 130R1239
