Cable Shield Connection - Danfoss iC2-Micro Series Design Manual

Design Guide | iC2-Micro Frequency Converters

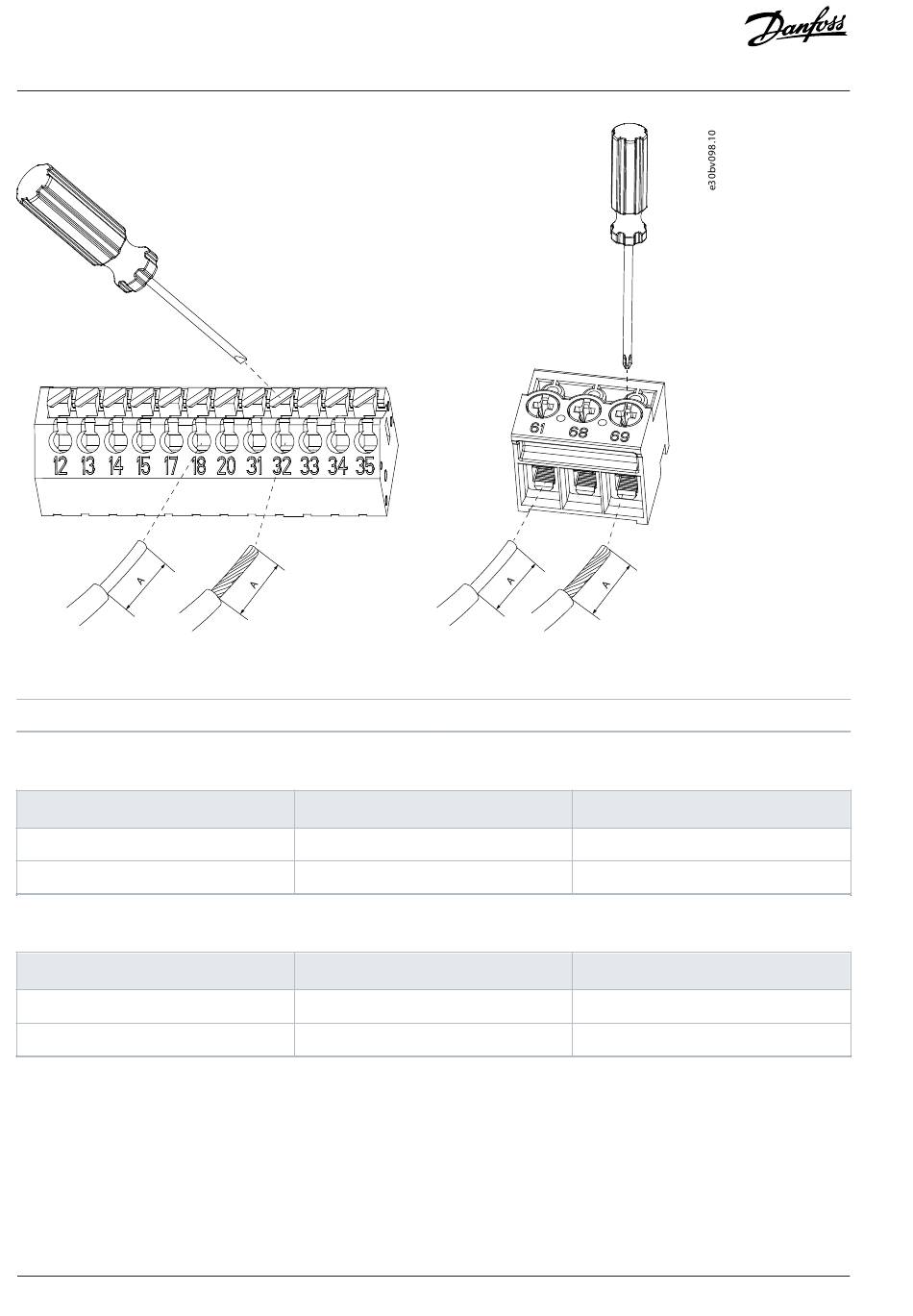

Figure 50: Inserting Wires into the Connector
1 I/O terminal
Table 56: Cable Sizing for I/O Terminal
Wire type
Solid
Flexible with ferrule
Table 57: Cable Sizing for RS485 Terminal
Wire type
Solid
Flexible with ferrule

Cable Shield Connection

7.10.6
The cable shield must be completely in contact with the EMC clamp on the EMC plate. Cable isolation must be removed and the cable
shield exposed for the entire surface. Avoid pigtails.
94 | Danfoss A/S © 2024.08
(1)
Cross-section [mm
0.2–1.5 (24–16)
0.2–1.5 (24–16)
Cross-section [mm
0.25–1.5 (24–16)
0.25–1.5 (24–16)
(2)
2 RS485 terminal
Stripping length A [mm (in)]
2
(AWG)]
8.5–9.5 (0.33–0.37)
8.5–9.5 (0.33–0.37)
Stripping length A [mm (in)]
2
(AWG)]
5–6 (0.20–0.24)
5–6 (0.20–0.24)
Electrical Installation Considerations
AJ402315027937en-000401 / 130R1239
