Control Panel 2.0 OP2 Buttons and Indicators

3.5.5
1
2
3
4
5
6

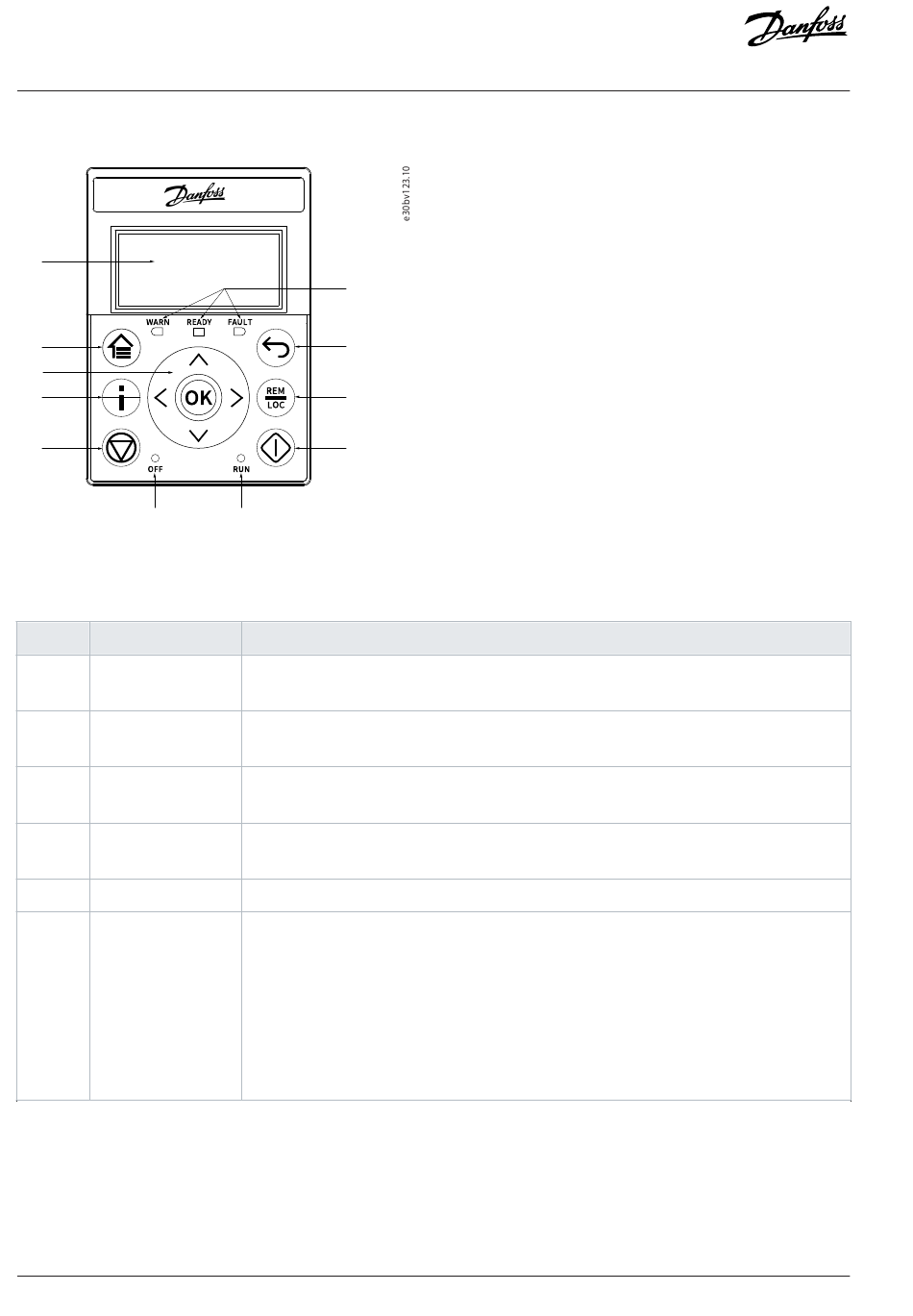

Figure 9: Control Panel 2.0 OP2 Overview
Table 11: Control Panel Elements Description
Legend Name of element
1 Display
2 Home/Menu
3 Arrows and [OK]
4 Info
5 Stop/Reset
6 OFF LED
24 | Danfoss A/S © 2024.08
11
10
9
8
7
Description
Provides access to content and settings. The display provides detailed information about the sta-
tus of the drive.
• Toggles between status view and main menu.
• Long press to access the shortcut menu for quickly reading and editing parameters.
• Arrows: Navigate within the different screens and menus, and tune the parameter values.
• [OK]: Confirms selections and data in the control panel display.
Provides drive information by pressing the Info button from the home screen, for example, the
drive type, ordered model code, drive serial number, application version.
Stops the operation of the drive.
The indicator has the following states:
• Steady on: The indicator is in this state when:
- The drive is not modulating and the drive is coasted.
- The stop or coast signal is applied. Ramp times, protections, and stopping functions might
prolong this state.
• Off: The drive is in operation, a start signal is applied, and the output is active. This also
includes ramping, running on reference, and AMA.
