Control Panel Buttons and Indicators

3.5.4
15
MON
1
PGM
TOR
WARN READY
2
3
OK
4
5
6 7

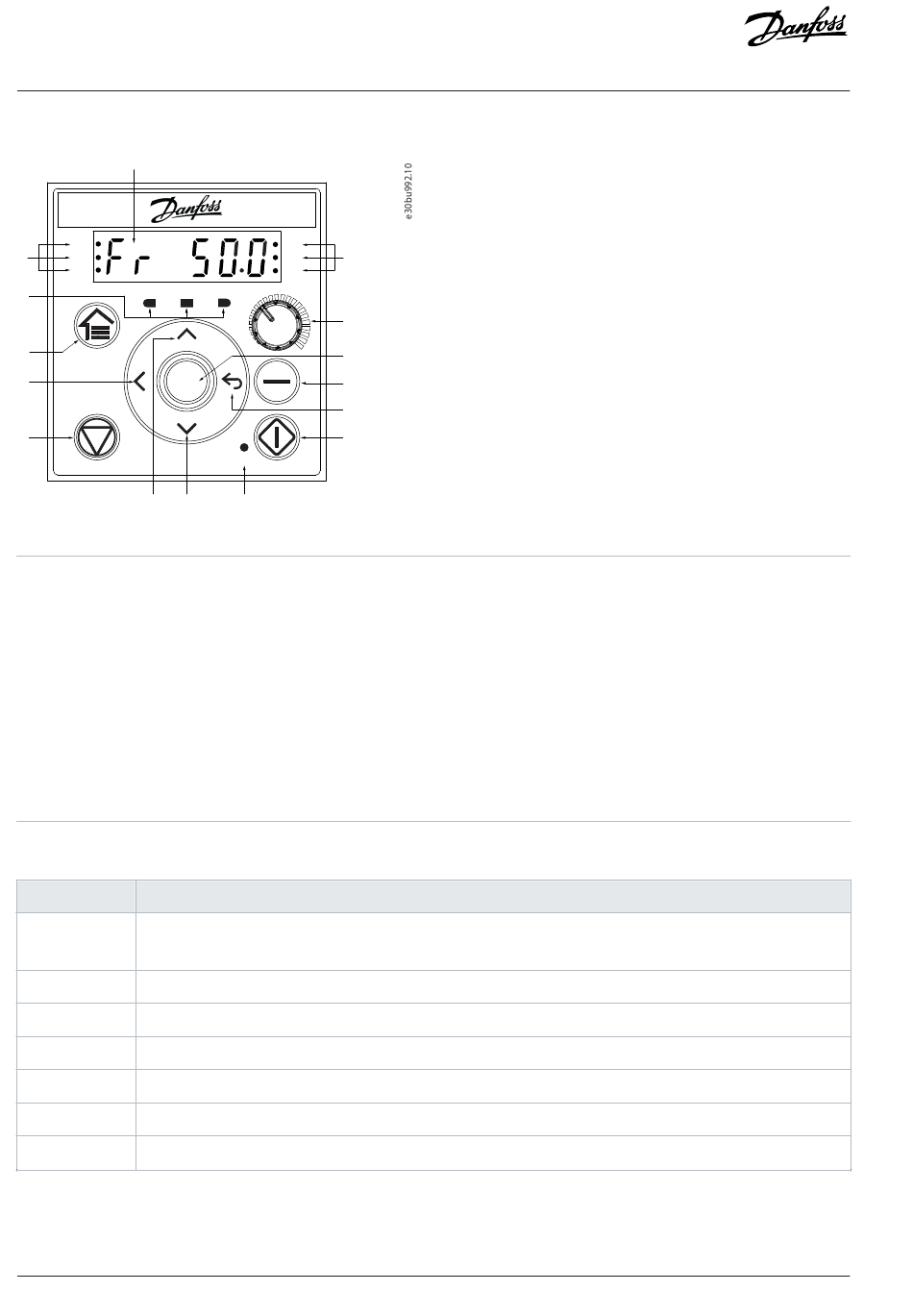

Figure 8: Control Panel
1
Status indicators
3 Home/Menu
5
Stop/Reset
7 Down
9
Start
11 Remote/Local
13
Potentiometer
15 Main display
Table 6: Operation Buttons and Potentiometer
Name Function
Home/Menu Toggles between status view and main menu.
Long press to access the shortcut menu for quickly reading and editing parameters.
Up/Down Switches status/parameter group/parameter numbers, and tunes the parameter values.
Left Moves the cursor 1 bit to the left.
Back Navigates to the previous step in the menu structure or cancels the setting during tuning parameter values.
OK Confirms the operation.
Remote/Local Toggles between the remote mode and local mode.
Start Starts the drive in local mode.
