Design Guide | iC2-Micro Frequency Converters

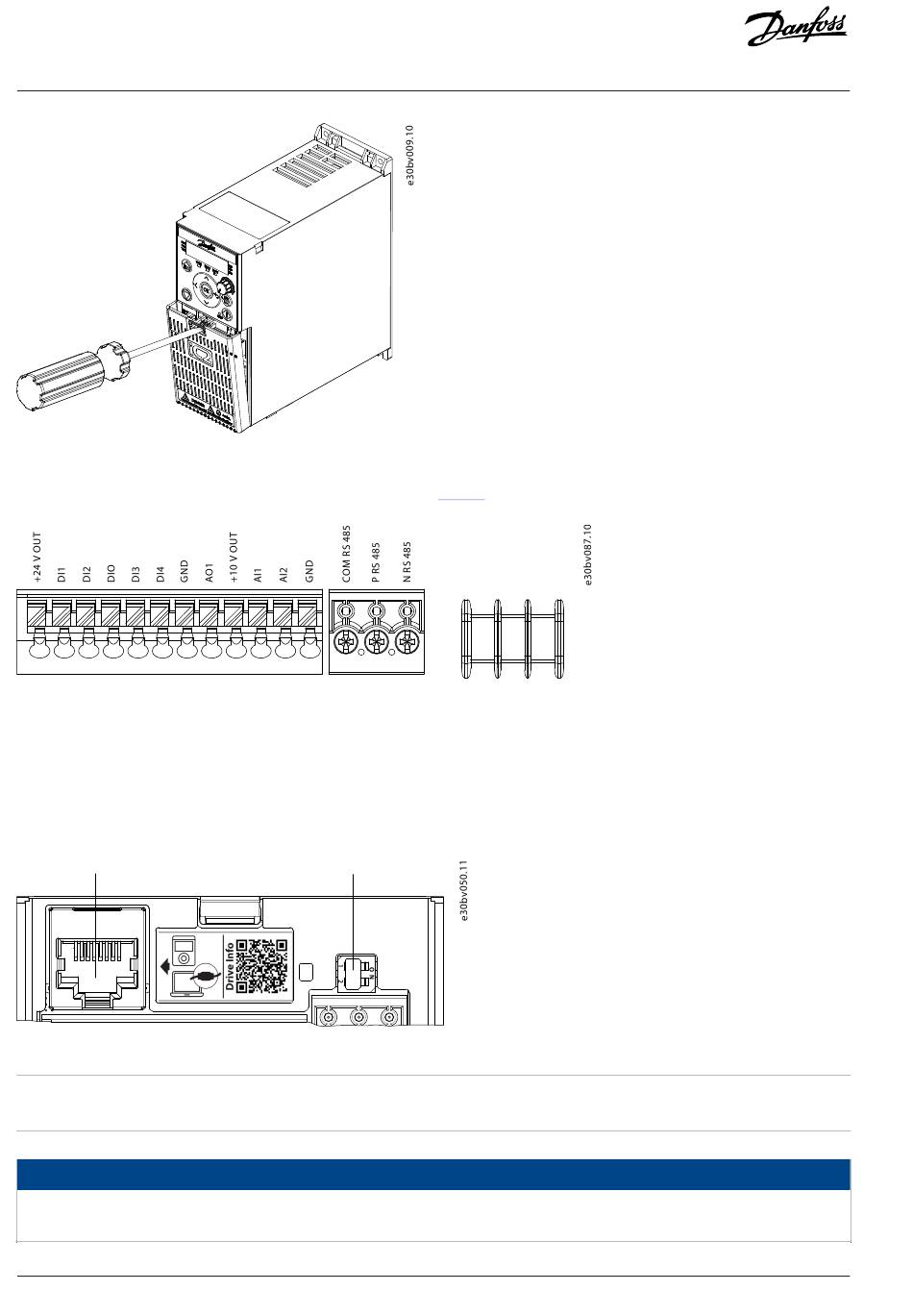

Figure 4: Removing Terminal Cover
All control terminals of iC2-Micro Frequency Converters are shown in
12 13 14 15 17 18 20
Figure 5: Overview of Control Terminals

RJ45 Port and RS485 Termination Switch

3.5.2
The drive has an RJ45 port which complies with Modbus 485 protocol. The RJ45 port is used for connecting:
External control panel (Control Panel 2.0 OP2)
l
PC tool (MyDrive® Insight) via Quick Adapter USB-C/RJ45 OAX00
l
1
Figure 6: RJ45 Port and RS485 Termination Switch
1 RJ45 port
The RJ45 port supports up to 3 m (9.8 ft) of shielded CAT5e cable which is NOT used to directly connect the drive to a PC. Failure
to follow this notice causes damage to the PC.
20 | Danfoss A/S © 2024.08
31 32 33 34 35 61 68
2
Figure 5.
Relay
01 02 03
69
2 RS485 termination switch (ON=RS485 terminated,
OFF=Open)
NOTICE
iC2-Micro Frequency Converters
AJ402315027937en-000401 / 130R1239
