D5 PUMP VERSION

M4 x 20 DIN7984
SCREW
PUMP
HOLDER
52 x 3 GASKET
ATTACHING THE D5 PUMP ON TO THE RES-
ERVOIR

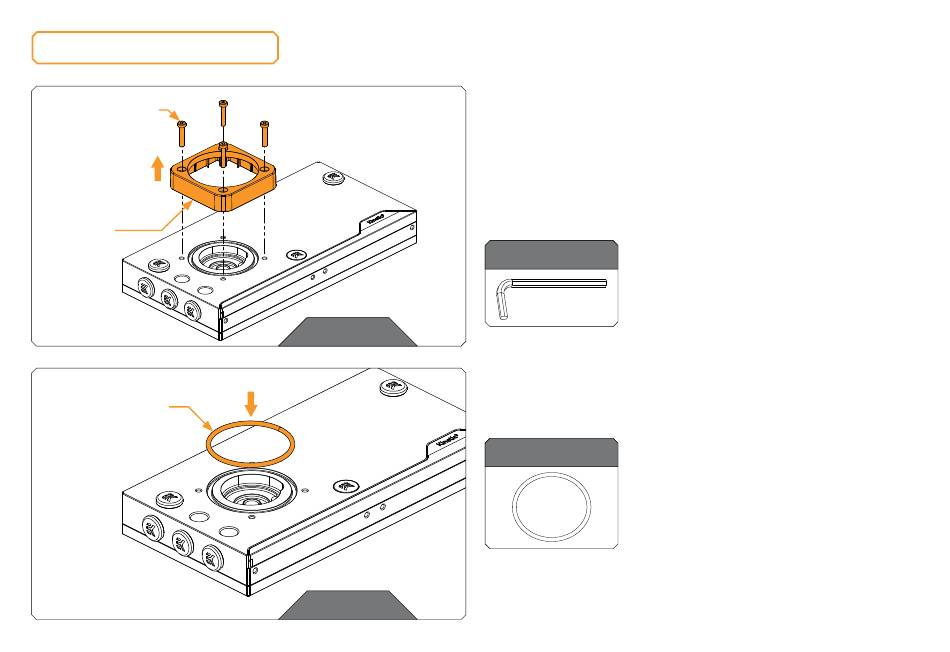

STEP 1:
Remove the preinstalled Pump Holder using 2.5 mm Allen Key. Store
the screws and pump holder for later use.
For this step you will need:
Allen Key 2.5mm
STEP 1
STEP 2:
Make sure that the gasket (o- ring) is placed into the groove.
For this step, you will need:
D5 OR 52 x 3 (1 pc)
STEP 2
