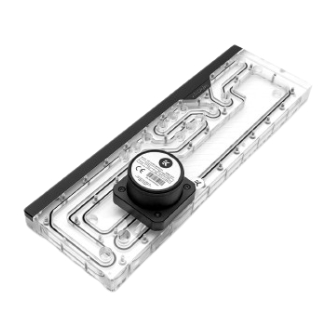

- Page 1 EK-Quantum Reflection ROG Hyperion D5 PWM D-RGB DISTRIBUTION PLATE USER GUIDE...
- Page 2 The installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not sufficiently trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS DISTRIBUTION PLATE DIMENSIONS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS PREPARING THE CHASSIS INSTALLING THE DISTRIBUTION PLATE RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS FLOW DIAGRAM CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Mounting mechanism - Hyperion D5 PWM D-RGB ; EAN: 106748 Allen Key 2.5 mm (1 pc) EK-Quantum Reflection ROG Hyperion D5 PWM D-RGB EK-Loop Multi Allen Key (1 pc) Screw M4 x 5 DIN7984 (7 pcs) - 4 -... -
Page 5: Distribution Plate Dimensions
DISTRIBUTION PLATE DIMENSIONS 130 mm 103 mm 56.5 mm 74 mm 35 mm 28.5 mm 28 mm - 5 -... -
Page 6: Technical Specifications And Product Parts
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS Technical Specification: Dimensions with the attached pump (W x D x H): 130 x 28 x 398 mm - Reservoir volume: ~283 ml - D-RGB LED count: 23 - D-RGB cable length: 500mm - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position Description Quantity... -
Page 7: Preparing The Chassis
PREPARING THE CHASSIS Before installing the distribution plate, carefully read the PC case manual. STEP 1 First, remove the PC case’s back, top, and side panels. STEP 1 STEP 2 After removing the panels, the inner radiator mounting bracket cover also needs to be detached. STEP 2 - 7 -... -
Page 8: Installing The Distribution Plate
INSTALLING THE DISTRIBUTION PLATE STEP 1 Before installing the distribution plate into the PC Chassis, it is recommended to install the side radiator with fans. Otherwise, placing the distribution plate into the final SIDE RADIATOR DISTRIBUTION position is harder. WITH FANS PLATE Carefully insert the distribution plate into the PC Chassis. -
Page 9: Recommended Distribution Plate Configurations
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS To complete your loop, all ports must be used as marked in the image. TOP RADIATOR All remaining unused ports must be closed with supplied plugs, INLET TOP RADIATOR using the EK-Loop Multi Allen Key. OUTLET If one of the prescribed components will not be installed (ie. - Page 10 FILL - 10 -...
-
Page 11: Flow Diagram
FLOW DIAGRAM - 11 -... -
Page 12: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. D-RGB Header RGB Header CONNECTING THE PUMP... -
Page 13: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 14: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
