D5 PUMP VERSION

M4 x 20 DIN7984
PUMP HOLDER
STEP 1
52 x 3 GASKET
STEP 2
M4 x 20 DIN7984
STEP 3

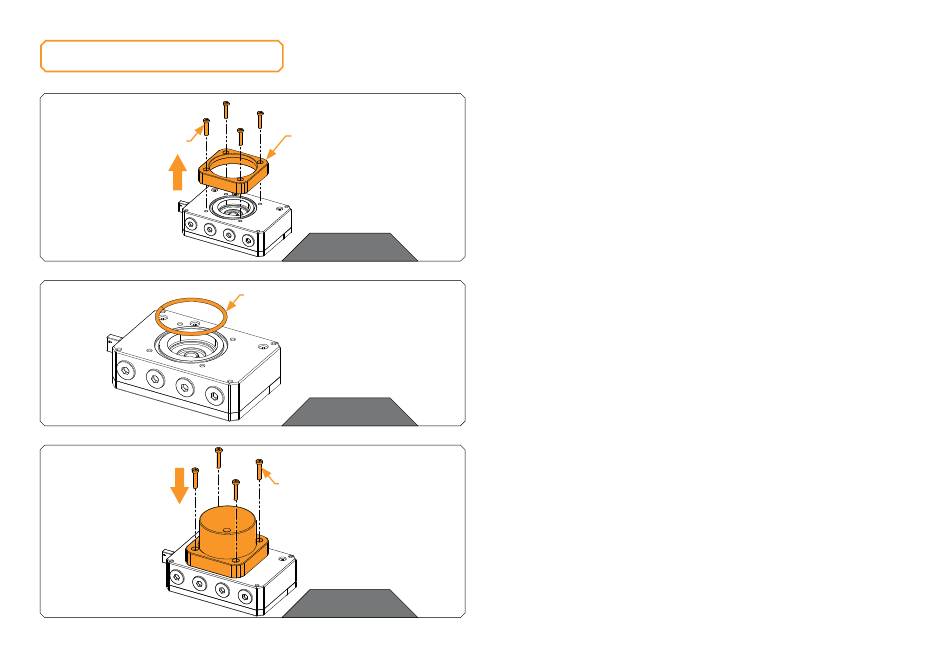

ATTACHING THE D5 PUMP ON TO THE RESERVOIR

STEP 1
Remove the preinstalled Pump Holder using 2.5 mm Allen Key. Store
the screws and pump holder for later use.
STEP 2
Make sure that the gasket (o- ring) is placed into the groove.
STEP 3
Carefully attach the D5 Pump and Pump Holder (as shown on the
photo). After that, secure all the parts together with M4 x 20 DIN 7984
Screws. Tighten the screws using enclosed 2.5 mm Allen Key.
- 8 -
