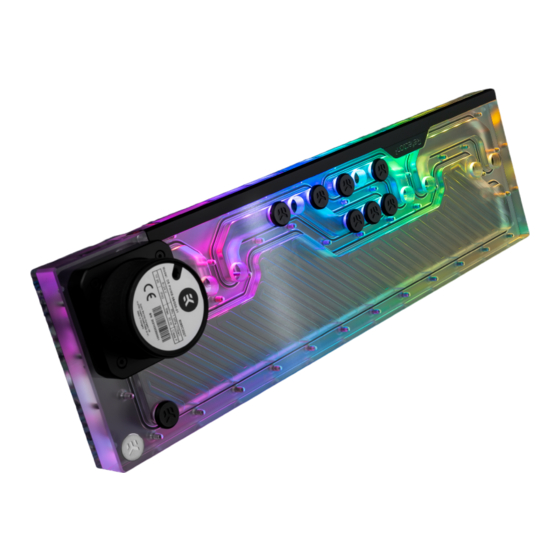

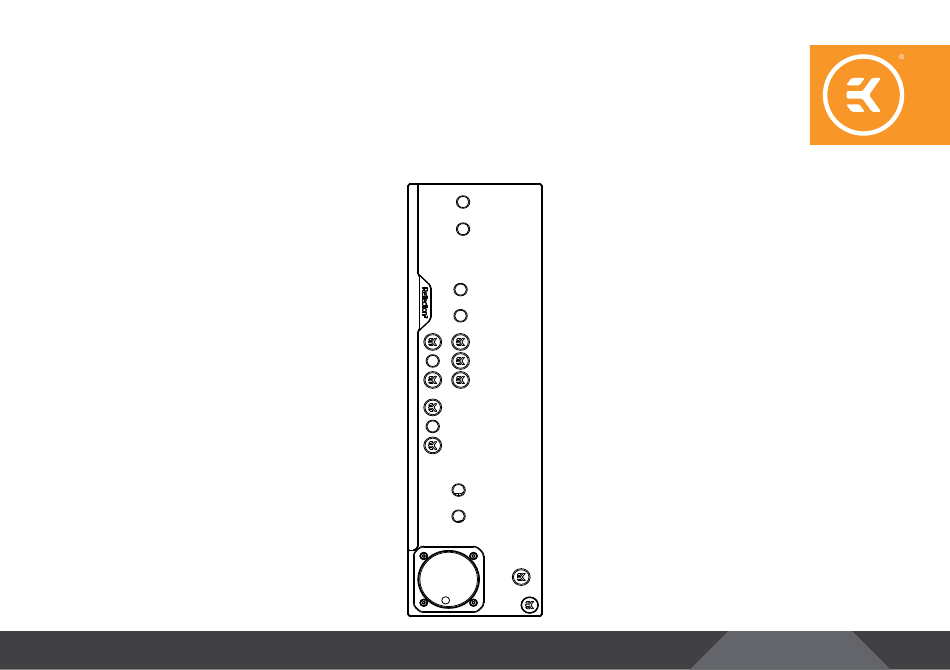

- Page 1 EK-Quantum Reflection 7000D D5 PWM D-RGB DISTRIBUTION PLATE USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS DISTRIBUTION PLATE DIMENSIONS MAIN PARTS AND TECHNICAL SPECIFICATIONS PREPARING THE CASE PREPARING AND INSTALLING THE DISTRIBUTION PLATE RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS FLOW DIAGRAM CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Allen Key 2.5 mm (1 pc) Screw M4 x 5 DIN7984 Screw (4 pcs) EK-Loop Multi Allen Key (1 pc) Allen Key 2 mm (1 pc) EK-Quantum Reflection 7000D D5 PWM D-RGB - 4 -... -
Page 5: Distribution Plate Dimensions
DISTRIBUTION PLATE DIMENSIONS 135 mm 114 mm 51 mm 51 mm 25 mm 30 mm 76 mm - 5 -... -
Page 6: Main Parts And Technical Specifications
MAIN PARTS AND TECHNICAL SPECIFICATIONS Technical Specification: - Dimensions with the attached pump (W x D x H): 215.1 x 77.8 x 471.9 mm - D-RGB LED count: 24 - D-RGB cable length: 500 mm - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity... -
Page 7: Preparing The Case
PREPARING THE CASE Before installing the distribution plate, carefully read the PC case manual. STEP 1 First, open the side panel and the inner frame of the PC Case. (shown in the photo). SIDE PANEL INNER FRAME STEP 1 STEP 2 Using Phillips head screwdriver, unscrew the factory-provided UNC screws and remove the Radiator bracket from the PC case. -
Page 8: Preparing And Installing The Distribution Plate
PREPARING AND INSTALLING THE DISTRIBUTION PLATE STEP 1 Carefully place the EK-Quantum Reflection 7000D D5 PWM D-RGB onto the saved Radiator bracket. RADIATOR M4 x 5 DIN7984 SCREW BRACKET Secure the distribution plate using Allen Key 2.5 mm and M4 x 5 DIN7984 Screws. -
Page 9: Recommended Distribution Plate Configurations
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS To complete your loop, all ports must be used as marked in the image. TOP RADIATOR All remaining unused ports must be closed with supplied plugs, INLET using the EK-Loop Multi Allen Key. If one of the prescribed components will not be installed TOP RADIATOR CPU OUTLET (ie. - Page 10 FILL DRAIN - 10 -...
-
Page 11: Flow Diagram
FLOW DIAGRAM - 11 -... -
Page 12: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. D-RGB Header RGB Header CONNECTING THE PUMP... -
Page 13: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 14: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
