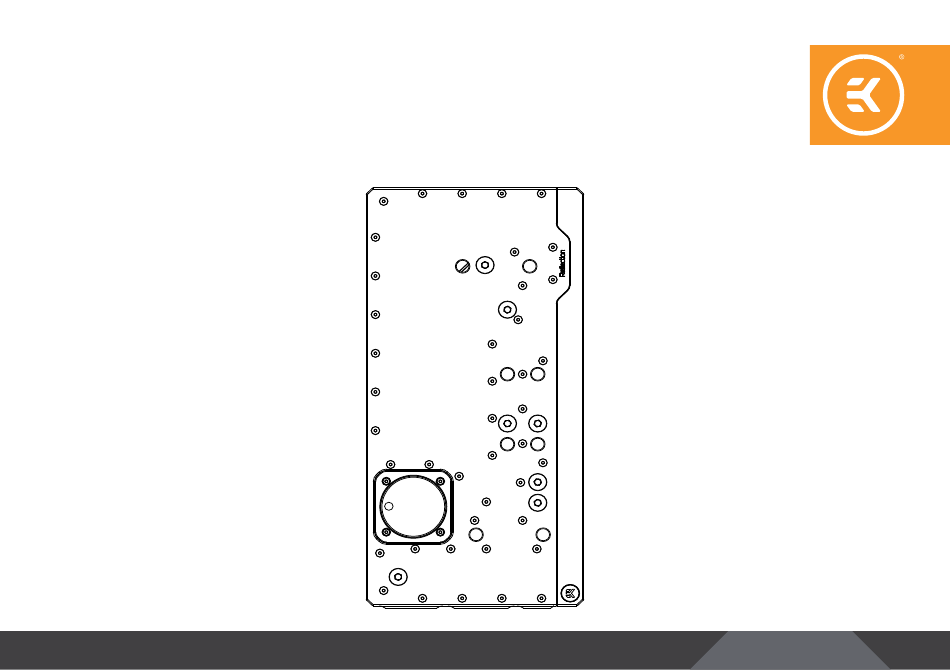

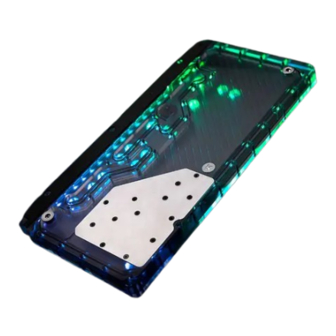

- Page 1 EK-Quantum Reflection PC-O11D D5 PWM D-RGB DISTRIBUTION PLATE USER GUIDE...
- Page 2 Before you start using this product please follow these basic guidelines: Please carefully read the manual before beginning with the installation process! The EK Fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
-
Page 3: Table Of Contents
TABLE OF CONTENT BOX CONTENTS DISTRIBUTION PLATE DIMENSIONS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS PREPARING THE 011D CHASSIS INSTALLING THE DISTRIBUTION PLATE IN THE 011D RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP CONNECTING THE PUMP – MOLEX CONNECTOR CONNECTING THE PUMP –... -
Page 4: Box Contents
Mounting Mechanism – You may not need every screw from this package. EAN: 102559 M3 x 11 7991DIN (2 pcs) M4 x 14 7991DIN (3 pcs) Allen Key 2.5 mm (1 pc) Allen Key 2 mm (1 pc) EK-Quantum Reflection PC-O11D D5 PWM D-RGB EK-Loop Multi Allen Key - 4 -... -
Page 5: Distribution Plate Dimensions
DISTRIBUTION PLATE DIMENSIONS 112 mm 92.5 mm 29.5 mm 50 mm 29.5 mm 67 mm 162 mm 37.5 mm 42.5 mm 99.5 mm 171.5 mm 201 mm - 5 -... -
Page 6: Technical Specifications And Product Parts
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS Position EAN Description Quantity 8311 M4 x 20 DIN7984 Screw 3831109837597 D5 Pump 101803 Pump holder 5154 OR 52 x 3 102639 EK - Plug G1/4 8312 M4 x 16 DIN7991 102406 Top plexi plate 102412 OR Set 102405... -
Page 7: Preparing The 011D Chassis
PREPARING THE 011D CHASSIS Before installing the distribution plate, carefully read the PC case manual. STEP 1 Unscrew the factory provided screws and remove the top panel from the case. Factory provided Screws STEP 1 STEP 2 Remove side and the front panel from the case. STEP 2 - 7 -... -
Page 8: Installing The Distribution Plate In The 011D
3.5mm drill bit. PC CASE DRILL BIT (3.5mm) OPTIONAL STEP 1 Carefully place the EK-Quantum Reflection PC-O11D D5 PWM D-RGB distribution plate into the PC case and align the mounting holes. M4 x 14 DIN7991 STEP 2 M3 x 11... -
Page 9: Recommended Distribution Plate Configurations
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS It is mandatory to use at least one of each type of port and all remaining ports should be sealed using the supplied plugs. The EK-Loop Multi Allen Key (6mm, 8mm, 9mm) may be used to install RADIATOR all EK fittings, do not use excessive force. - Page 10 FILL (exterior) DRAIN (exterior) - 10 -...
-
Page 11: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. D-RGB Header RGB Header CONNECTING THE PUMP... -
Page 12: Connecting The Pump - Sata Connector
CONNECTING THE PUMP – SATA CONNECTOR The EK-D5 PWM pump has two connectors. 1. SATA Connector: It must be connected directly to your PSU at all times as it is used to power the pump. 2. 4-pin PWM fan: It can be connected to your motherboard’s CPU_ Fan or designated water pump header. -
Page 13: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
