Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
TABLE OF CONTENTS GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING THE MOTHERBOARD INSTALLING THE WATER BLOCK FITTINGS AND TUBING CONNECTING THE PUMP CONNECTING THE D-RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
Mounting Mechanism – You may not need all the screws, mounting mechanism is universal! Allen Key 2 mm (1 pc) Allen Key 2.5 mm (1 pc) EK-Quantum Velocity DDC 4.2 PWM D-RGB - 1700 Thermal grease (1 pc) - 4 -...

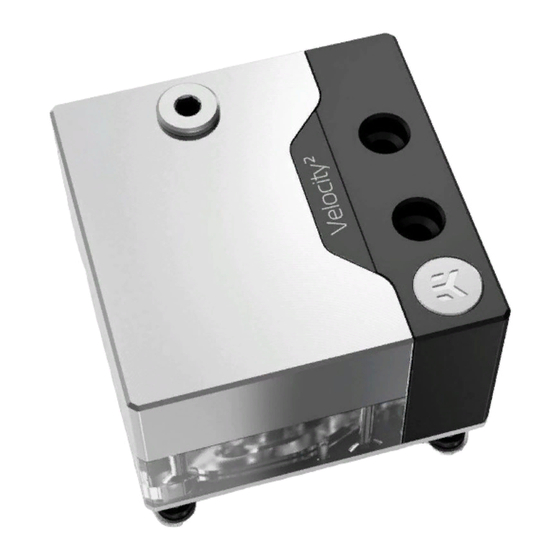

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Technical Specification: - Dimensions (LxHxW): 94.5 x 94.5 x 70.6 - D-RGB cable length: 500 mm - D-RGB LED count: 14 - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position Description Quantity 105494 Metal Plate 105564 M3 x 30 DIN7991 Screw...
PREPARING THE MOTHERBOARD STEP 1 If already installed, please remove the motherboard from your computer and place it on an even surface. Non-abrasive Cloth STEP 2 Cleaning the CPU: Wipe the IHS clean using a non-abrasive cloth or Q-tip as shown in the illustration. STEP 2 STEP 3 Applying thermal compound: Once clean, apply a line of Thermal...
INSTALLING THE WATER BLOCK STEP 1 Unscrew the pre-installed Backplate on the CPU using an Allen Key 2.5 mm and save it for the later steps. BACKPLATE STEP 1 STEP 2 Before placing the water block, it is mandatory to remove the protective foil from the backside.
Page 9
STEP 3 Position the CPU Water Block onto the Motherboard. Make sure to align the holes (as shown in the picture). Make sure to double check the layer of the Thermal Grease before placing the water block onto the motherboard. STEP 3 STEP 4 TOP OF THE...
Tighten the fittings in a clockwise direction until the gasket INLET PORT underneath is compressed. The installation of the EK-Quantum Velocity DDC 4.2 PWM D-RGB - 1700 water block is now complete. OUTLET PORT...
CONNECTING THE PUMP The EK-DDC PWM has two connectors. 1. SATA Connector: It must be connected directly to your PSU at times as it is used to power the pump. 2. 4-pin PWM fan: It can be connected to your motherboard’s CPU_FAN or designated water pump hader.
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
