Vtx Pump Version; Attaching The Vtx Pump On To The Reservoir - EK-Quantum Kinetic3 FLT Body PWM D-RGB Installation Manual

M4 x 25 DIN7984 SCREW
DDC
PUMP

VTX PUMP VERSION

M4 x 20 DIN7984
SCREW
PUMP
HOLDER

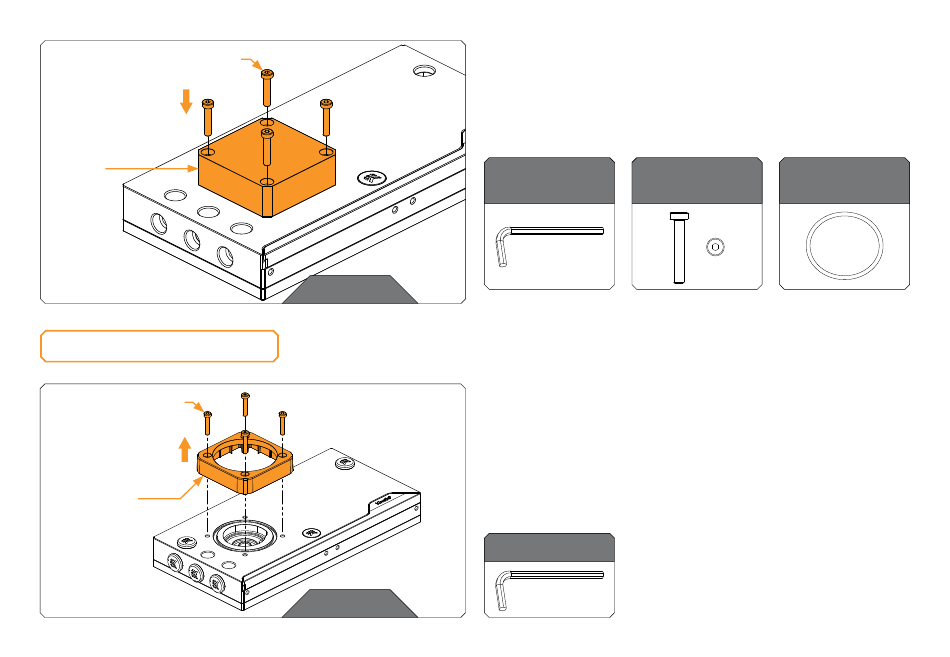

STEP 2
Carefully attach the DDC pump and make sure that gasket (46 x 2.5) is
placed correctly. Sealing gasket is included in additional bag. Secure
the pump with four (4) M4 x 25 7984DIN screws. Tighten the screws
using enclosed 2.5 mm Allen Key.
For this step, you will need:
Allen Key 2.5 mm
STEP 2
ATTACHING THE VTX PUMP ON TO THE
RESERVOIR
STEP 1
Remove the preinstalled Pump Holder and screws using 2.5 mm
Allen Key. Store the pump holder.
For this step you will need:
Allen Key 2.5mm
STEP 1
- 16 -
M4 x 25 7984DIN DDC/VTX OR
Screw (4pcs) 46 x 2.5 (1 pc)
