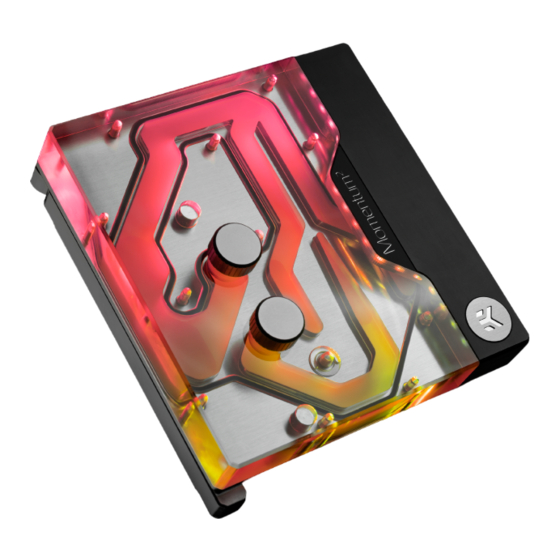

EK-Quantum Momentum2 ROG Maximus Z790 Hero D-RGB User Manual

Monoblock
Hide thumbs Also See for Momentum2 ROG Maximus Z790 Hero D-RGB:
Table of Contents

Advertisement

Quick Links

Download this manual
EK-Quantum
Momentum
ROG Maximus Z790 Hero D-RGB
2
MONOBLOCK
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Momentum2 ROG Maximus Z790 Hero D-RGB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EK-Quantum Momentum2 ROG Maximus Z790 Hero D-RGB

Summary of Contents for EK-Quantum Momentum2 ROG Maximus Z790 Hero D-RGB

  • Page 1 EK-Quantum Momentum ROG Maximus Z790 Hero D-RGB MONOBLOCK USER GUIDE...
  • Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, or their installation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING THE MOTHERBOARD I/O LIGHT COVER ASSEMBLY Z790 HERO MOTHERBOARD I/O LIGHT COVER ASSEMBLY Z690 HERO MOTHERBOARD PREPARING THE WATER BLOCK FOR INSTALLATION CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND ATTACHING THE WATER BLOCK...

  • Page 4: General Information On Water Block Compatibility

    GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY This CPU liquid cooling unit is pre-assembled for use with modern Intel desktop socket-type motherboards. By default (out of the box) this water block supports the following CPU sockets: - Intel LGA-1700 - 4 -...

  • Page 5: Box Contents

    BOX CONTENTS EK-Quantum Momentum Maximus XIV PASTE Thermal Grizzly Thermal PAD F 0.5 mm Hero D-RGB (3831109892381) Allen key 2 (1 pc) (8901) Hydronaut (1g) (120 x 16 mm) (2 pcs) Thermal PAD F 1.0 mm Standoff M4-M2 x 10.5 (1 pc) Allen key 2.5 (1 pc) (8902)

  • Page 6: Water Block Dimensions

    WATER BLOCK DIMENSIONS CPU WB: 119.6 mm 35.7 mm 20.5 mm 30.9 mm Backplate: 9.1 mm 6 mm 78 mm 3.5 mm - 6 -...

  • Page 7: Technical Specifications And Water Block Parts

    TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Position Description Quantity 104679 Monoblock 104028 Coldplate (Nickel) 104532 Lock Washer DIN6799 104913 Mounting Screw 100747 Spring M3 x 10 mm, 8 kg 104029 Jet Plate 104674 Coldplate Mosfet N (Nickel) 104676 Coldplate Mosfet W (Nickel) 104677 TOP Plexi 104678...

  • Page 8: Preparing The Motherboard

    PREPARING THE MOTHERBOARD Important! Before starting, make sure to have a clean, flat surface to work on. It is recommended that you put a foam or a soft material to lay the motherboard and the water block on. STEP 1 Remove three (3) screws M2 x 5 from the front of the motherboard.
  • Page 9 STEP 2 After removing the backplate, unscrew the additional four(4) marked screws. For this step, you will need: Phillips Head Screwdriver STEP 1 STEP 3 HEATSINK I/O LIGHT Disconnect the I/O Light cable from the motherboard. Pull the SCREEN Heatsink straight up. Put the Heatsink on a clean flat surface. Be careful not to damage the I/O Light! STEP 3 - 9 -...
  • Page 10 STEP 4 Remove all the remaining stock thermal pads from the motherboard. SCREW M2 x 2.5 SCREW STEP 5 M2 x 4 Turn the Heatsink upside down. Unscrew four (4) M2 x 2.5 screws from I/O Light screen. To detach the I/O Bracket 1 unscrew two (2) M2 x 4 screws.

  • Page 11: I/O Light Cover Assembly Z790 Hero Motherboard

    I/O LIGHT COVER ASSEMBLY Z790 HERO MOTHERBOARD STEP 1 Tighten the I/O Bracket 1 and the I/O Bracket 2 on the I/O Cover SCREW using four (4) M2x4 screws. M2 x 4 For this step, you will need: I/O Cover (1pc) I/O Bracket 1 (1pc) I/O Bracket 2 (1pc) I/O BRACKET 1...

  • Page 12: I/O Light Cover Assembly Z690 Hero Motherboard

    I/O LIGHT COVER ASSEMBLY Z690 HERO MOTHERBOARD STEP 1 Replace top standoff M2-M4 x 10 with M2.5-M4 x 12 from the Mounting mechanism bag. M2.5-M4 x 12 STANDOFF STEP 1 STEP 2 Tighten the I/O Bracket 1 and the I/O Bracket 2 on the I/O Cover using four (4) M2 x 4 screws.

  • Page 13: Preparing The Water Block For Installation

    Phillips Head Screwdriver SCREW M2 x 2.5 For the next steps of monoblock installation on the Z690 Hero monoblock. Please check the installation manual for EK-Quantum STEP 3 Momentum² ROG Maximus Z690 Hero D-RGB. PREPARING THE WATER BLOCK FOR INSTALLATION...

  • Page 14: Cutting And Placing Thermal Pads

    CUTTING AND PLACING THERMAL PADS STEP 1 EK-Momentum ROG Maximus XIV Hero D-RGB water block comes Thermal Pad F – 0.5 mm (120 x 16 mm) with thermal pads that have to be cut into smaller pieces to cover all the regulation areas (Mosfet) on the water block.

  • Page 15: Applying Thermal Compound

    APPLYING THERMAL COMPOUND STEP 1 Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound) on the CPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even in thickness over the entire surface of the IHS. The excessive or uneven application of thermal grease may lead to poor performance! For this step, you will need:...
  • Page 16 STEP 2 After placing the water block, the Backplate must be attached to the M2 x 2.5 SCREW (3x) backside of the motherboard using Allen Key 2.5 mm (shown in the image). MOUNTING NUT (4x) While holding the water block and the motherboard with one hand, align the Backplate with the Mounting Screws of the water block.
  • Page 17 STEP 3 Carefully place the I/O Light Cover onto the motherboard. Align the I/O Light Cover standoff holes with the holes on the motherboard. I/O LIGHT COVER STEP 3 STEP 4 M2.5 x 5 SCREW (1x) Tighten one (1) M2.5 x 5 AX1 screw and washer to secure the I/O Light cover onto the motherboard.
  • Page 18 STEP 5 M2.5 x 8 AX1 SCREW (1x) Place the backplate to the motherboard and screw one (1) M2.5 x 8 AX1 screw and one (1) M2 x 12 mm screw from the mounting bag. Tighten four (4) M2 x 10 mm screws that came with the motherboard M2 x 12 SCREW (1x) to secure the backplate and front audio cover onto the motherboard.

  • Page 19: Fittings And Tubing

    FITTINGS AND TUBING STEP 1 Screw-in two (2) G1/4 threaded male fittings. Attach the liquid- cooling tubes and connect the water block to the cooling loop. Tighten the fittings in a clockwise direction until the gasket underneath is compressed. EK-FITTING TUBING EK recommends using EK fittings with all EK water blocks.

  • Page 20: Connecting The D-Rgb Led Strip

    CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground.

  • Page 21: Warranty

    WARRANTY Our products are warranted against defects of materials and quality for a period of 24 months, starting with the date of delivery to the end-user. During this period, products will be repaired or have parts replaced at our discretion, provided that 1) the product is returned to the agent from whom it was purchased;...

  • Page 22: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
