Ddc Pump Version; Attaching The Ddc Pump On To The Reservoir - EK-Quantum Kinetic3 FLT Body PWM D-RGB Installation Manual

M4 x 20 DIN7984
SCREW
D5 PUMP
HOLDER

DDC PUMP VERSION

M4 x 20 DIN7984
SCREW
PUMP
HOLDER
STEP 3

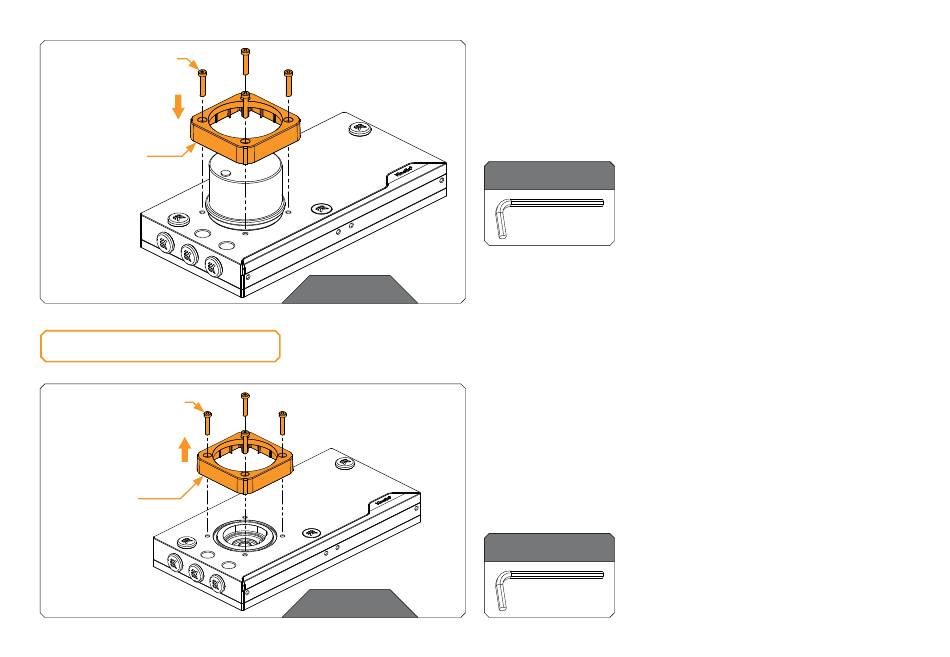

Carefully attach the D5 Pump and Pump Holder(as shown in the
photo). After that, secure all the parts together with M4 x 20 DIN
7984 Screws. Tighten the screws using the enclosed 2.5 mm
Allen Key.
For this step you will need:
Allen Key 2.5mm
STEP 3
ATTACHING THE DDC PUMP ON TO THE
RESERVOIR
STEP 1
Remove the preinstalled Pump Holder and screws using 2.5 mm
Allen Key. Store the pump holder for later use.
For this step you will need:
Allen Key 2.5mm
STEP 1
- 15 -
