EK-Quantum Kinetic3 FLT Body PWM D-RGB Installation Manual page 6

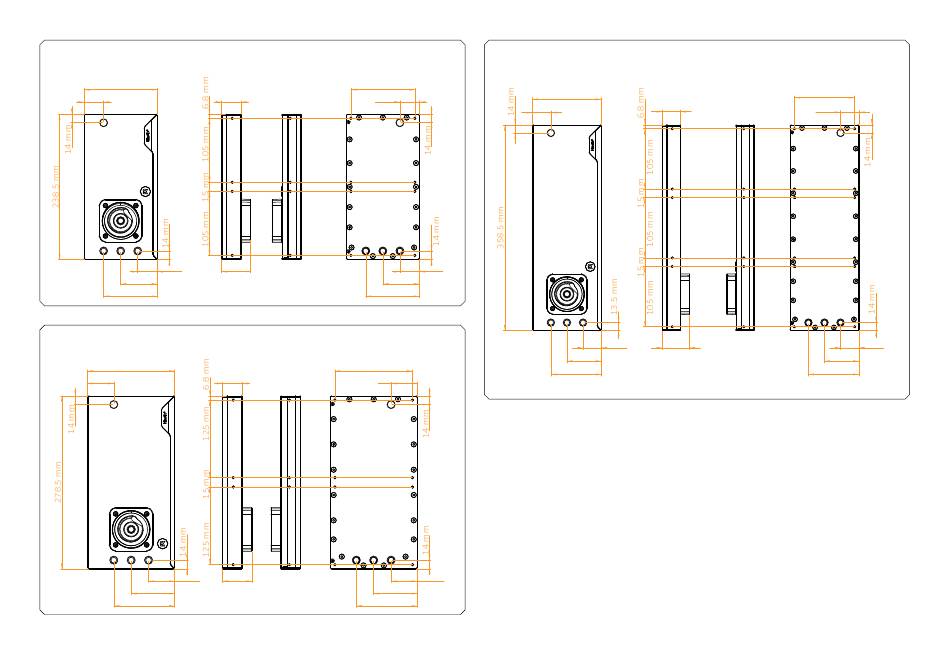

240 Version:
120 mm
32 mm 31.5 mm
32 mm
47.5 mm
60 mm
88 mm
280 Version:
140 mm
42 mm 31.5 mm
42 mm
47.5 mm
70 mm
98 mm
360 Version:
105 mm
32 mm
32 mm
60 mm
88 mm
125 mm
42 mm
42 mm
70 mm
98 mm
- 6 -
120 mm
31.5 mm
32 mm
32 mm
47.5 mm
60 mm
88 mm
105 mm
32 mm
32 mm
60 mm
88 mm
