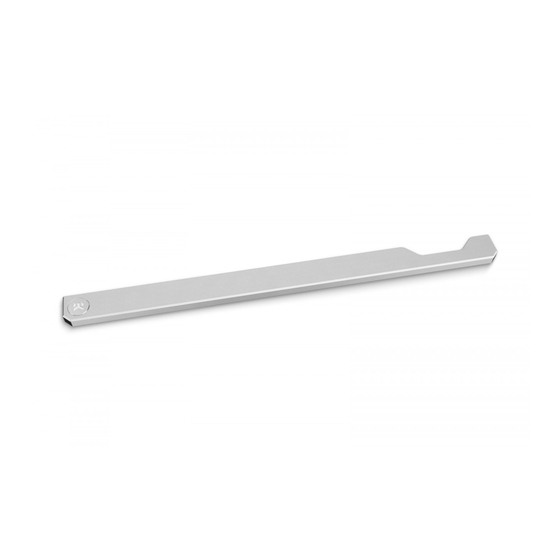

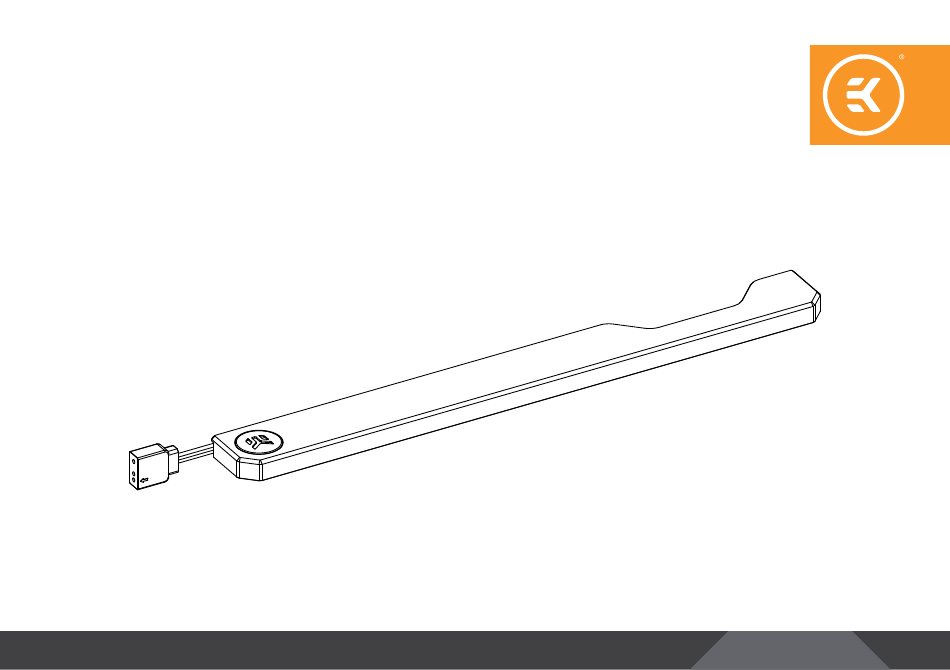

- Page 1 EK-Quantum Kinetic FLT Accent – Silver USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS MAIN PARTS INSTALLING THE REPLACEMENT COVER CONNECTING THE D-RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS FLT Cover (Silver) EK-Badge LED Strip MAIN PARTS Position Description Quantity 100663 EK RGB Badge 103774 ALU - FLT80 - Cover ( N. elox) 101799 ALU - FLT120 - Cover ( N. elox) 106727 ALU - FLT240 - Cover ( N. elox) 101794 ALU - FLT360 - Cover ( N. -
Page 5: Installing The Replacement Cover
It is recommended to put foam or soft material to lay the parts on. Detach the EK-Quantum Kinetic FLT reservoir from the PC Case and remove the fluid prior to installation of the replacement cover. - Page 6 STEP 4 After securing the LED Strip, attach the replacement cover to the MAX TORQUE: EK-Quantum Kinetic FLT reservoir. Secure the cover with the saved 0.6 Nm M4 x 22 DIN7991 Screws. Do not use excessive force! For this step, you will need:...
-
Page 7: Connecting The D-Rgb Led Strip
STEP 5 It is essential to carry out a leak test after attaching the replacement cover. EK recommends using the EK-Loop Leak Tester Flex: https://www.ekwb.com/shop/ek-loop-leak-tester-flex CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 3 Pin connector from the reservoir D-RGB LED light to the DRGB HEADER on the motherboard. -
Page 8: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “MAIN PARTS” where you can find the EAN number of each part you might need. Include the EAN number with quantity in your request.
