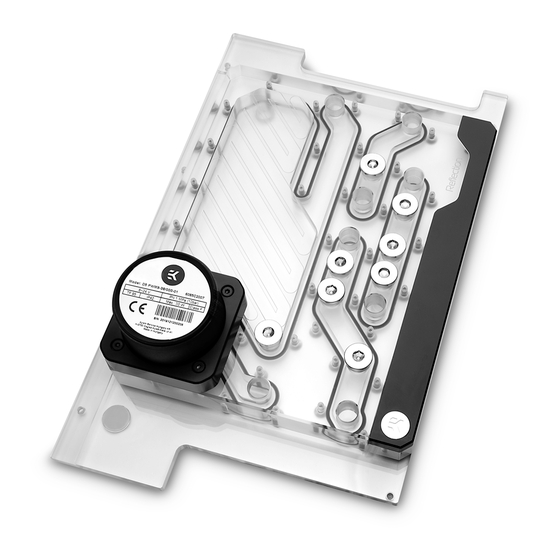

EK-Quantum Reflection PC-O11D Mini D5 PWM D-RGB User Manual

EK-Quantum Reflection PC-O11D Mini D5 PWM D-RGB User Manual

Distribution plate
Hide thumbs Also See for Reflection PC-O11D Mini D5 PWM D-RGB:

Advertisement

Quick Links

EK-Quantum
Reflection
PC-O11D Mini D5 PWM D-RGB
2
DISTRIBUTION PLATE
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reflection PC-O11D Mini D5 PWM D-RGB and is the answer not in the manual?

Questions and answers

Summary of Contents for EK-Quantum Reflection PC-O11D Mini D5 PWM D-RGB

  • Page 1 EK-Quantum Reflection PC-O11D Mini D5 PWM D-RGB DISTRIBUTION PLATE USER GUIDE...
  • Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS DISTRIBUTION PLATE DIMENSIONS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS PREPARING THE O11D Mini CHASSIS INSTALLING THE DISTRIBUTION PLATE RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS 7-SLOT CONFIGURATION 5-SLOT CONFIGURATION FLOW DIAGRAM CONNECTING THE D-RGB LED STRIP CONNECTING THE PUMP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA...
  • Page 4: Box Contents

    BOX CONTENTS M4 x 8 7991DIN (8 pcs) Allen Key 2.5 mm (1 pc) EK-Quantum Reflection PC-O11D Mini D5 PWM D-RGB EK-Loop Multi Allen Key - 4 -...
  • Page 5: Distribution Plate Dimensions

    DISTRIBUTION PLATE DIMENSIONS 8 mm 30.5 mm 76 mm - 5 -...
  • Page 6: Technical Specifications And Product Parts

    TECHNICAL SPECIFICATIONS AND PRODUCT PARTS Technical Specification: Dimensions with the attached pump (H x W x D): 332 x 206 x 76 mm – D-RGB LED count: 12 – D-RGB cable length: 500 mm – D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position Description Quantity...
  • Page 7: Preparing The O11D Mini Chassis

    PREPARING THE O11D Mini CHASSIS Before installing the distribution plate, carefully read the PC case manual. STEP 1 Unscrew the factory provided screws and remove the top panel from the case. FACTORY PROVIDED SCREWS STEP 1 STEP 2 Remove side and the front panel from the case. STEP 2 - 7 -...
  • Page 8: Installing The Distribution Plate

    INSTALLING THE DISTRIBUTION PLATE STEP 1 Carefully place the EK-Quantum Reflection PC-O11D Mini D5 PWM D-RGB distribution plate into the PC case and align the mounting holes. STEP 1 STEP 2 Secure the distribution plate to the chassis with eight (8) M4 x 8 DIN7991 screws (as shown in the diagram).
  • Page 9: Recommended Distribution Plate Configurations

    RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS It is mandatory to use at least one of each type of port and all remaining ports should be sealed using the supplied plugs. The EK-Loop Multi Allen Key may be used to install all EK fittings, do not use excessive force.
  • Page 10 FILL (EXTERIOR) DRAIN (EXTERIOR) RADIATOR 1 Up to S360 (bottom) - 10 -...
  • Page 11: 5-Slot Configuration

    5-SLOT CONFIGURATION ITX / mATX RADIATOR 3 (Optional) Up to S360 (top) RADIATOR 2 OUT RADIATOR 2 IN CPU OUT CPU IN GPU IN/OUT (SLOT 1) DRAIN RADIATOR 1 OUT RADIATOR 1 IN RADIATOR 1 Up to S360 (bottom) - 11 -...
  • Page 12 RADIATOR 3 (Optional) Up to S360 (top) FILL (EXTERIOR) DRAIN (EXTERIOR) RADIATOR 1 Up to S360 (bottom) - 12 -...
  • Page 13: Flow Diagram

    FLOW DIAGRAM - 13 -...
  • Page 14: Connecting The D-Rgb Led Strip

    CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. D-RGB Header RGB Header CONNECTING THE PUMP...
  • Page 15: Testing The Loop

    TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components.
  • Page 16: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
