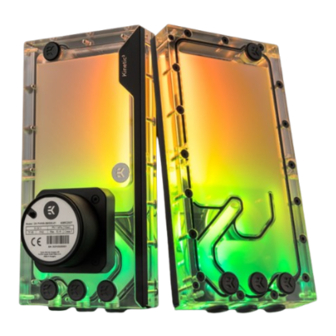

EK-Quantum Kinetic3 FLT Body PWM D-RGB Installation Manual

EK-Quantum Kinetic3 FLT Body PWM D-RGB Installation Manual

Advertisement

Quick Links

EK-Quantum
Kinetic
FLT Body PWM D-RGB
3
INSTALLATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kinetic3 FLT Body PWM D-RGB and is the answer not in the manual?

Questions and answers

Summary of Contents for EK-Quantum Kinetic3 FLT Body PWM D-RGB

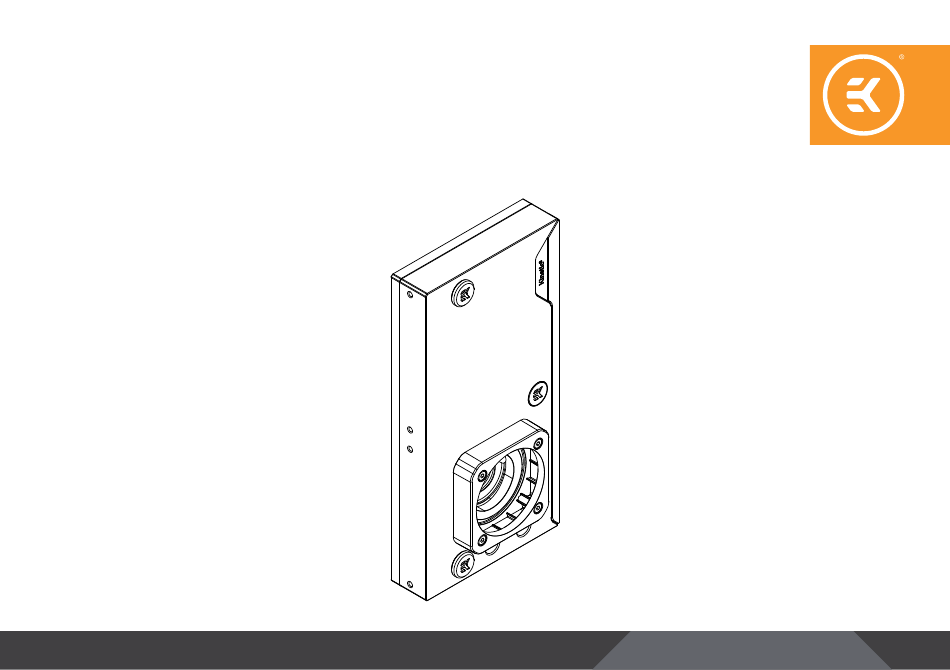

  • Page 1 EK-Quantum Kinetic FLT Body PWM D-RGB INSTALLATION MANUAL...
  • Page 2 The use of corrosion inhibiting coolants is always recommended for any liquid cooling system. EKWB recommends any of the EK-Cryofuel for worry-free usage. There are many ways to install your EK-Quantum Kinetic FLT Body as it utilizes a standard fan mounting hole pattern with 15 mm spacing, the same as all EK radiators.
  • Page 3: Table Of Contents

    DDC PUMP VERSION ATTACHING THE DDC PUMP ON TO THE RESERVOIR VTX PUMP VERSION ATTACHING THE VTX PUMP ON TO THE RESERVOIR INSTALLING EK-QUANTUM KINETIC FLT DIRECTLY TO THE CHASSIS INSTALLING EK-QUANTUM KINETIC FLT WITH SUPPLIED MOUNTS ATTACHING THE FITTINGS...
  • Page 4: Box Contents

    L-Side Mount Bracket 120 (92 Version: (92 Version 2 pcs) M4 x 4 7984DIN Screw (4pcs) 1 pc), (120/240/360 Version: 2 pcs) EK-Quantum Kinetic L-Side Mount Bracket 140 M4 x 10 DIN7984 Screw (4 pcs) 92/120/140/240/280/360 Body PWM D-RGB (140/280 Version: 2 pcs)
  • Page 5: Reservoir Dimensions

    RESERVOIR DIMENSIONS 92 Version: 140 Version: 140 mm 92 mm 14 mm 17.5 mm 14 mm 17.5 mm 14 mm 13.5 mm 31.5 mm 125 mm 125 mm 31.5 mm 82.5 mm 47.5 mm 47.5 mm 120 Version: 120 mm 14 mm 17.5 mm 14 mm...
  • Page 6 240 Version: 360 Version: 120 mm 105 mm 105 mm 120 mm 32 mm 31.5 mm 32 mm 31.5 mm 32 mm 32 mm 32 mm 32 mm 47.5 mm 60 mm 60 mm 88 mm 88 mm 280 Version: 32 mm 32 mm 47.5 mm...
  • Page 7: Technical Specifications And Product Parts

    TECHNICAL SPECIFICATIONS AND PRODUCT PARTS 92 VERSION Technical Specification: - Dimensions: (L x H x W) – 92 x 118.5 x 47.5 mm - D-RGB cable length: 500 mm - D-RGB LED count: 14 - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity...
  • Page 8: 120 Version

    120 VERSION Technical Specification: - Dimensions: (L x H x W) – 120 x 118.5 x 47.5 mm - D-RGB cable length: 500 mm - D-RGB LED count: 14 - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity 107328...
  • Page 9: 140 Version

    140 VERSION Technical Specification: - Dimensions: (L x H x W) – 140 x 238.5 x 47.5 mm - D-RGB cable length: 500 mm - D-RGB LED count: 14 - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity 107329...
  • Page 10: 240 Version

    240 VERSION Technical Specification: - Dimensions: (L x H x W) – 120 x 238.5 x 47.5 mm - D-RGB cable length: 500 mm - D-RGB LED count: 14 - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity 107330...
  • Page 11: 280 Version

    280 VERSION Technical Specification: - Dimensions: (L x H x W) – 120 x 278.5 x 47.5 mm - D-RGB cable length: 500 mm - D-RGB LED count: 14 - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity 107331...
  • Page 12: 360 Version

    360 VERSION Technical Specification: - Dimensions: (L x H x W) – 120 x 358.5 x 47.5 mm - D-RGB cable length: 500 mm - D-RGB LED count: 14 - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity 107332...
  • Page 13 FLT Reservoir can be mounted in multiple directions. Do not mount FLT Reservoir when the pump is in dead position. Vertical and horizontal positions are optional. - 13 -...
  • Page 14: D5 Pump Version

    D5 PUMP VERSION ATTACHING THE D5 PUMP ON TO THE RES- M4 x 20 DIN7984 ERVOIR SCREW STEP 1: Remove the preinstalled Pump Holder using 2.5 mm Allen Key. Store the screws and pump holder for later use. For this step you will need: PUMP HOLDER Allen Key 2.5mm...
  • Page 15: Ddc Pump Version

    STEP 3 M4 x 20 DIN7984 Carefully attach the D5 Pump and Pump Holder(as shown in the SCREW photo). After that, secure all the parts together with M4 x 20 DIN 7984 Screws. Tighten the screws using the enclosed 2.5 mm Allen Key.
  • Page 16: Vtx Pump Version

    STEP 2 M4 x 25 DIN7984 SCREW Carefully attach the DDC pump and make sure that gasket (46 x 2.5) is placed correctly. Sealing gasket is included in additional bag. Secure the pump with four (4) M4 x 25 7984DIN screws. Tighten the screws using enclosed 2.5 mm Allen Key.
  • Page 17: Installing Ek-Quantum Kinetic 3 Flt Directly To The Chassis

    Allen Key 2.5 mm Screw (4pcs) 46 x 2.5 (1 pc) STEP 2 INSTALLING EK-QUANTUM KINETIC FLT DIRECTLY TO THE CHASSIS Using the included M4 screws you can mount the reservoir directly to your chassis or any other standard fan mounting location.
  • Page 18: Installing Ek-Quantum Kinetic 3 Flt With Supplied Mounts

    PC cases. The bracket can be positioned across any pair of mounting holes in various orientations. Example of EK-Quantum Kinetic FLT 240 mounted on the radiator:...
  • Page 19: Attaching The Fittings

    Allen Key 2.5 mm Screw (4pcs) STEP 2 ATTACHING THE FITTINGS 92 Version FILL EK-Quantum Kinetic FLT 92 has two inlet and two outlet ports, one of each must be used! FILL All unused ports should be blocked using G1/4 plugs. INLET...
  • Page 20 120/140 Version FILL EK-Quantum Kinetic FLT 120/140 has three inlet and three outlet ports, one of each must be used! FILL All unused ports should be blocked using G1/4 plugs. INLET OUTLET/DRAIN 240/280/360 Version FILL EK-Quantum Kinetic FLT 240/280/360 has three inlet and three outlet...
  • Page 21: Connecting The D-Rgb Led Strip

    CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector from the water block’s D-RGB LED light in the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard.
  • Page 22: Testing The Loop

    TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components.
  • Page 23: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
