Section 11 - Control System
Pothole Switch
(each side,
inside wheel
well)
Main Power
Switch
Battery
Charger
Lower Controls/
ECU
Page 27

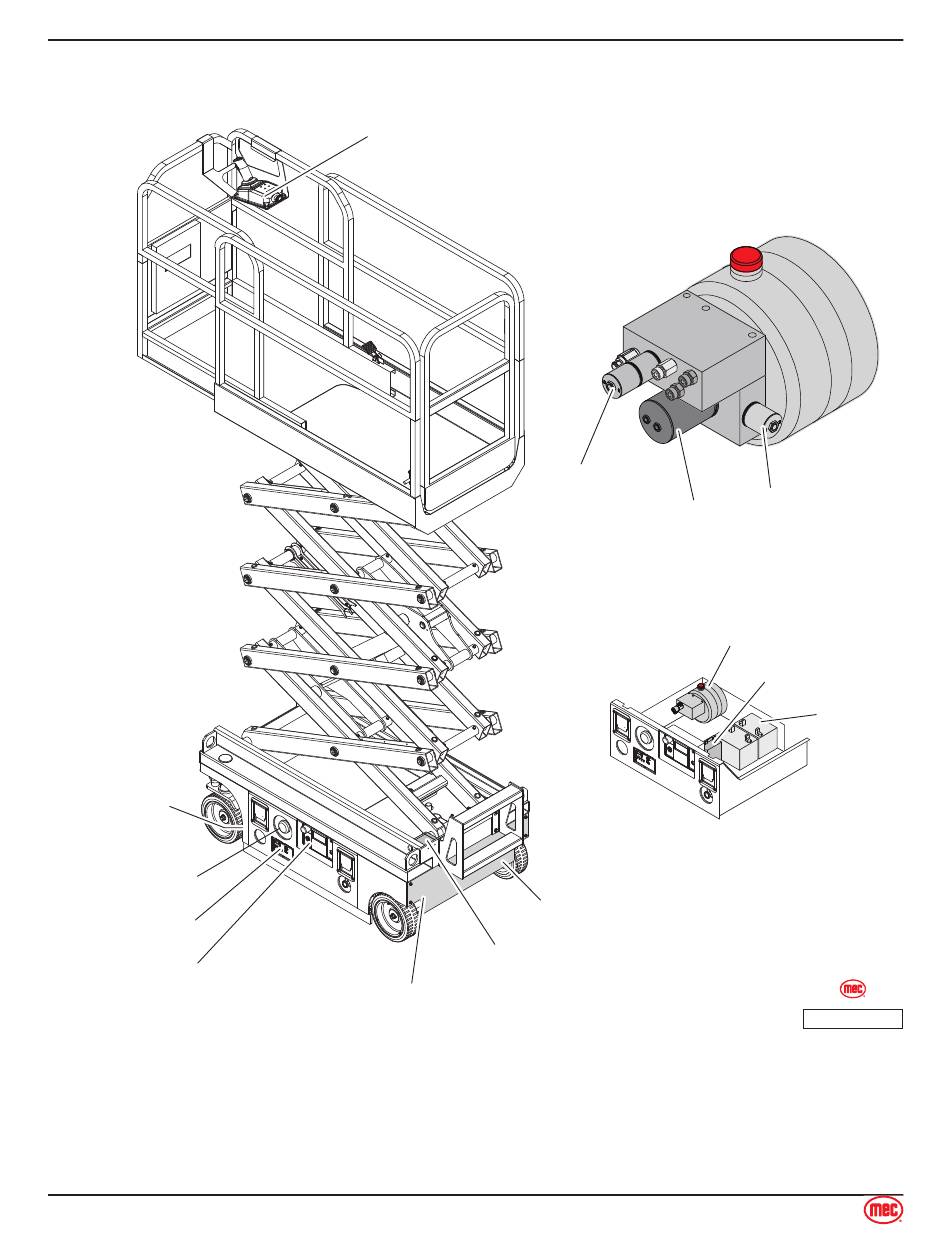

Control Component Locations
Control Component Locations
Platform Controls/
PCU
Drive Motor
(under cover)
1330SE - Service & Parts Manual - 95834
Hydraulic
Unit
Steer
Valve
Pump
Motor
Component
Tray
Drive Motor
(under cover)
Height Sensor
Potentiometer
(under cover)
October 2024
Lift Valve
Hydraulic Unit
Motor Controller/
ECU2 (TM1)
Batteries
ILLUSTRATION No.
ART_5097
