Section 10 - Maintenance
ART_6091
WARNING
Annual Maintenance Inspections should be conducted by qualified service technicians only.
Photocopy the Annual Inspection Checklist page from the Operator's Manual to keep record of
this inspection. Keep inspections records up to date. Record and report all discrepancies to your
supervisor.
Perform all checks listed on Pre-Start Inspection and the Frequent Inspection, then check all items
listed on the Annual Inspection Report. See specific instructions below.
Scissor Slide Blocks
Maintaining the condition of the scissor arm slide blocks is essential to safe machine operation.
Continued use of worn out wear pads may result in component damage and unsafe operating
conditions.
Perform this procedure with the platform in the stowed position.

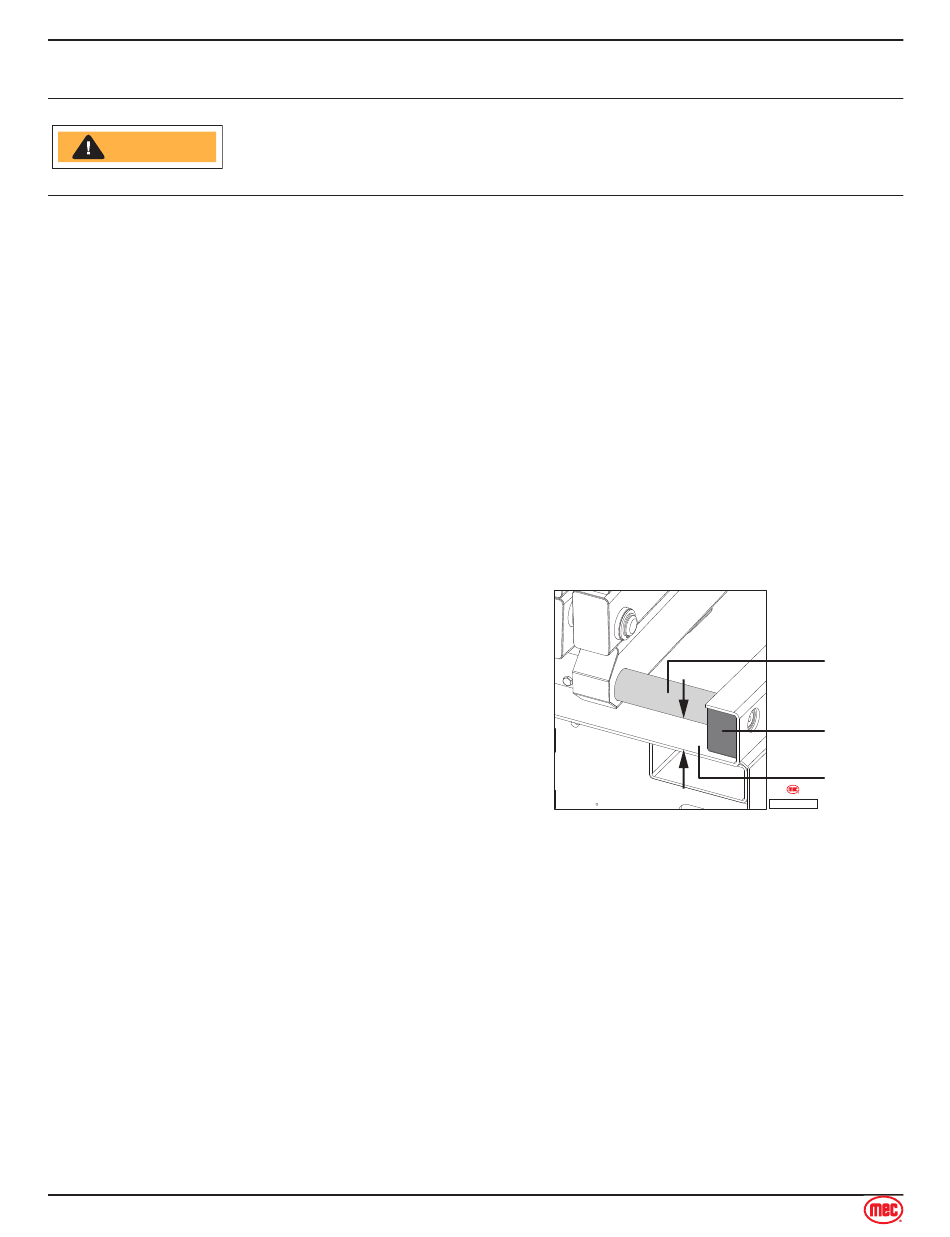

1. Measure the distance between the number one inner
arm cross tube and the chassis deck at the ground
controls side of the non-steer end of the machine.
• Result: The measurement is 1.18 inches (30
millimeters) or more. Proceed to step 2.
• Result: The measurement is less than 1.18
inches (30 millimeters). Replace both wear pads.
2. Measure the distance between the number one inner
arm cross tube and the chassis deck at the battery
pack side of the non-steer end of the machine.
• Result: The measurement is 1.18 inches (30 millimeters) or more. Proceed to step 3.
• Result: The measurement is less than 1.18 inches (30 millimeters). Replace both wear pads.
3. Apply a thin layer of dry film lubricant to the area of the chassis where the scissor arm wear pads
make contact.
Hydraulic Tank Breather Cap
The hydraulic tank is a vented-type tank. The breather cap has an internal air filter that can become
clogged or, over time, can deteriorate.
If the breather cap is faulty or improperly installed, impurities can enter the hydraulic system which
may cause component damage. Extremely dirty conditions may require that the cap be inspected
more often.
1. Remove and discard the hydraulic tank breather cap.
2. Install a new cap onto the tank.
Page 23

Annual Inspection Checklist

THIS CHECKLIST MUST BE USED AT 12-MONTH INTERVALS OR EVERY
600 HOURS OF MACHINE USE, WHICHEVER OCCURS FIRST. FAILURE
TO DO SO COULD RESULT IN DEATH OR SERIOUS INJURY.
1330SE - Service & Parts Manual - 95834
October 2024
Inner Arm
Cross Tube
Slide Block
Chassis Deck
ILLUSTRATION No.
ART_5122
