Section 10 - Maintenance
Hydraulic Oil Inspection
Replacement or testing of the hydraulic oil is essential for good machine performance and service life.
Dirty oil may cause the machine to perform poorly and continued use may cause component damage.
Extremely dirty conditions may require oil changes to be performed more often.
Before replacing the hydraulic oil, the oil may be tested by an oil distributor for specific levels of
contamination to verify that changing the oil is necessary.
Hydraulic oil should be tested yearly and replaced if it fails. If the hydraulic oil is not replaced at the
Annual Inspection, test the oil quarterly. Replace the oil when it fails the test.
Note: Perform this procedure with the platform in the stowed position.
1. Slide out the Component Tray.
2. Disconnect the battery pack from the machine.
ART_6091
WARNING
3. Tag and disconnect the hydraulic pump outlet line and remove the
line from the pump. Cap the fitting on the pump.
4. Loosen the bolts and remove the hydraulic power pack form the
tray.
5. Open the oil plug of tank. Drain all of the oil into a suitable
container.
6. Loosen and remove the bolts and separate the tank from the pump
body.
ART_6091
WARNING
7. Clean up any oil that may have spilled. Properly discard the used oil.
8. Clean the inside of the hydraulic tank using a mild solvent. Allow the tank to dry completely.
9. Install the hydraulic tank and install and tighten the hydraulic tank retaining fasteners. Torque to
specification.
Hydraulic Tank Retaining Fasteners, Dry: 35in-Ibs (4Nm)
•
Hydraulic Tank Drain Plug, Lubricated: 26in-Ibs (3Nm)
•
10. Install the hydraulic power pack into the component tray. Install the fitting and hydraulic hoses
Page 24
ELECTROCUTION / BURN HAZARD. CONTACT WITH ELECTRICALLY
CHARGED CIRCUITS COULD RESULT IN DEATH OR SERIOUS INJURY.
REMOVE ALL RINGS, WATCHES AND OTHER JEWELRY.
BODILY INJURY HAZARD. SPRAYING HYDRAULIC OIL CAN PENETRATE
AND BURN SKIN. LOOSEN HYDRAULIC CONNECTIONS VERY SLOWLY
TO ALLOW THE OIL PRESSURE TO DISSIPATE GRADUALLY. DO NOT
ALLOW OIL TO SQUIRT OR SPRAY.
1330SE - Service & Parts Manual - 95834
October 2024

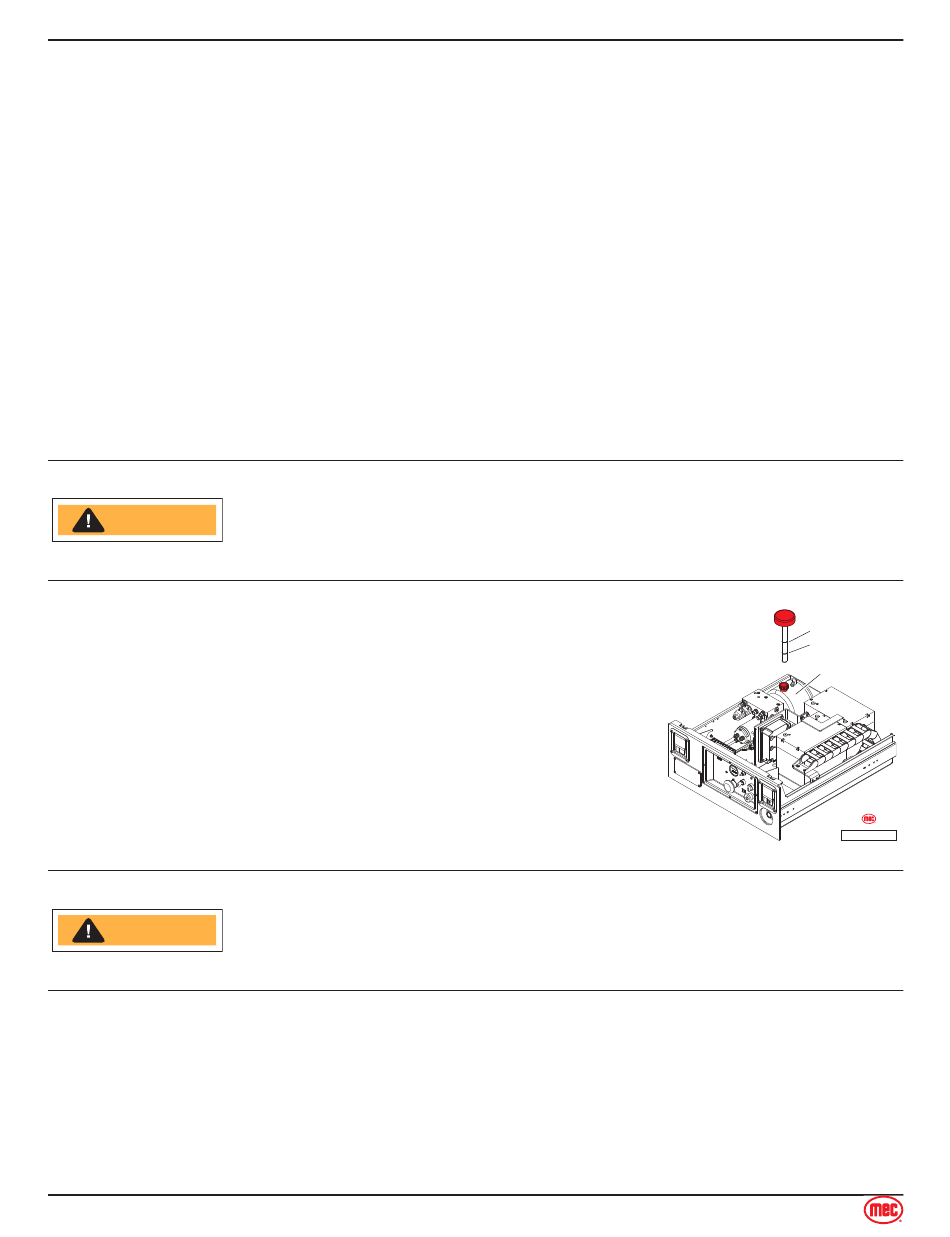

FULL
ADD
Hydraulic Unit
Component
Tray
ILLUSTRATION No.
ART_5792
