Section 7 - Primary Machine Components

18
16
17
14
10
13
11
12
9
21
ILLUSTRATION No.
ART_5229
Page 10

Primary Machine Components

Primary Machine Components
1
2
22
8
Control Module
19
20
1330SE - Service & Parts Manual - 95834
4
15
3
6
5
22
7

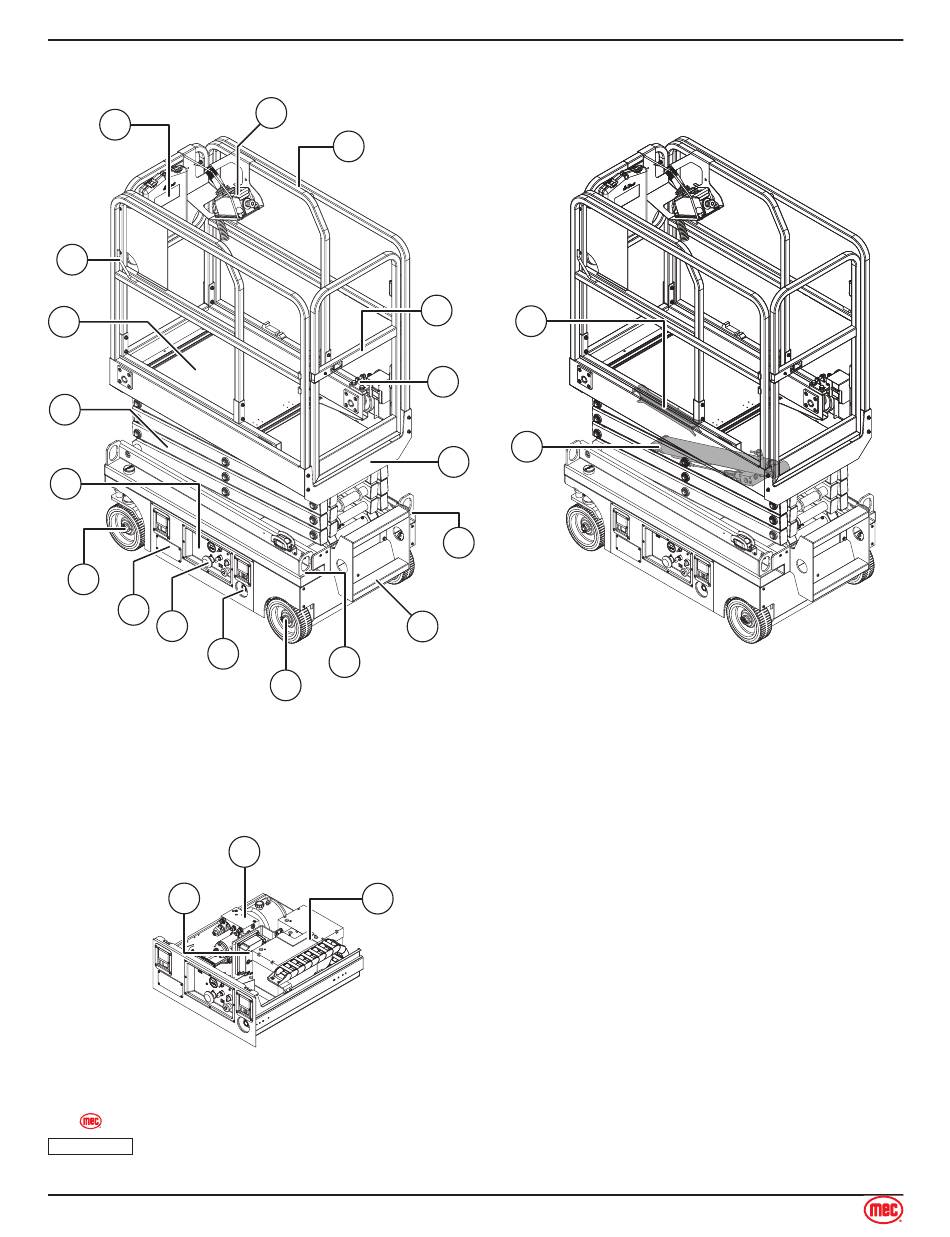

1) Platform Controller
2) Platform Guard Rails
3) Platform Extension Release Pedal
4) Platform Entry Gate
5) Main Platform
6) Lift Cylinder
7) Entry Ladder
8) Drive Wheels
9) Emergency Lowering Knob
10) Ground Control Panel
11) Battery Charger
12) Main Power Switch/Lower Emergency Stop
13) Steer Wheels
14) Scissor
15) Safety Arm
16) Lanyard Anchorage Point
17) Platform Extension
18) Manual Storage Container
19) Hydraulic Pump
20) Batteries
21) Motor Controller
22) Forklift Pockets/Tie-Down Points
Lift Cylinder and Maintenance Lock
shown for visual reference.
October 2024
