Raption Series Quick Start Installation Manual

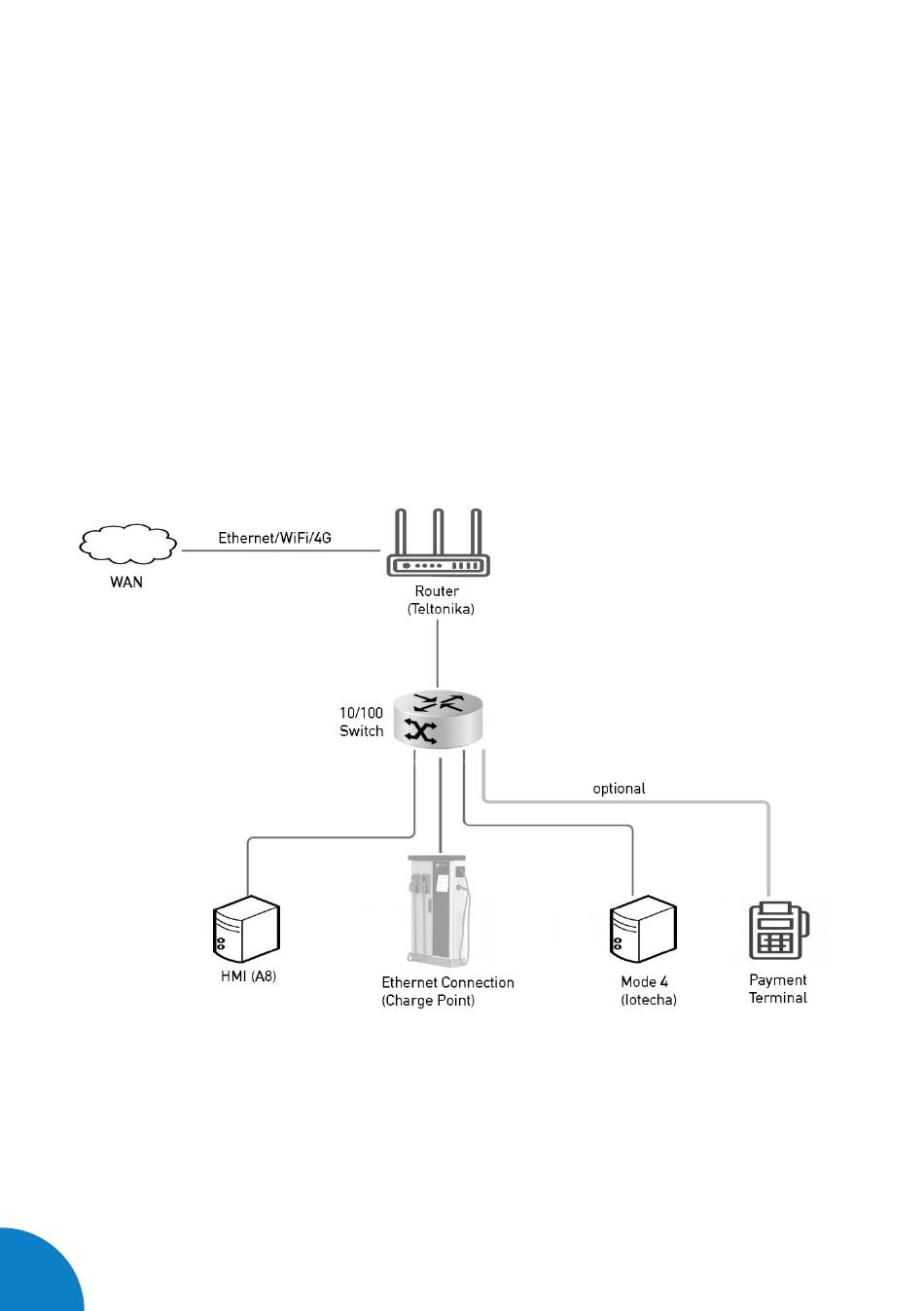

Charge Point ethernet connection - Raption 50 / Raption 51 / Raption
52 / Raption 100:
In case of the Charge Point is decided to be connected via ethernet, it is necessary
to install a switch device (recommended a 5-port 10/100 Mbps ethernet switch, code
490514).
HMI and Iotecha must be connected to the switch in order to be updated remotely
when necessary. In case of payment terminal is chosen as an optional, it must also be
connected to the switch.
20
