Summary of Contents for Circontrol Raption 50 Series

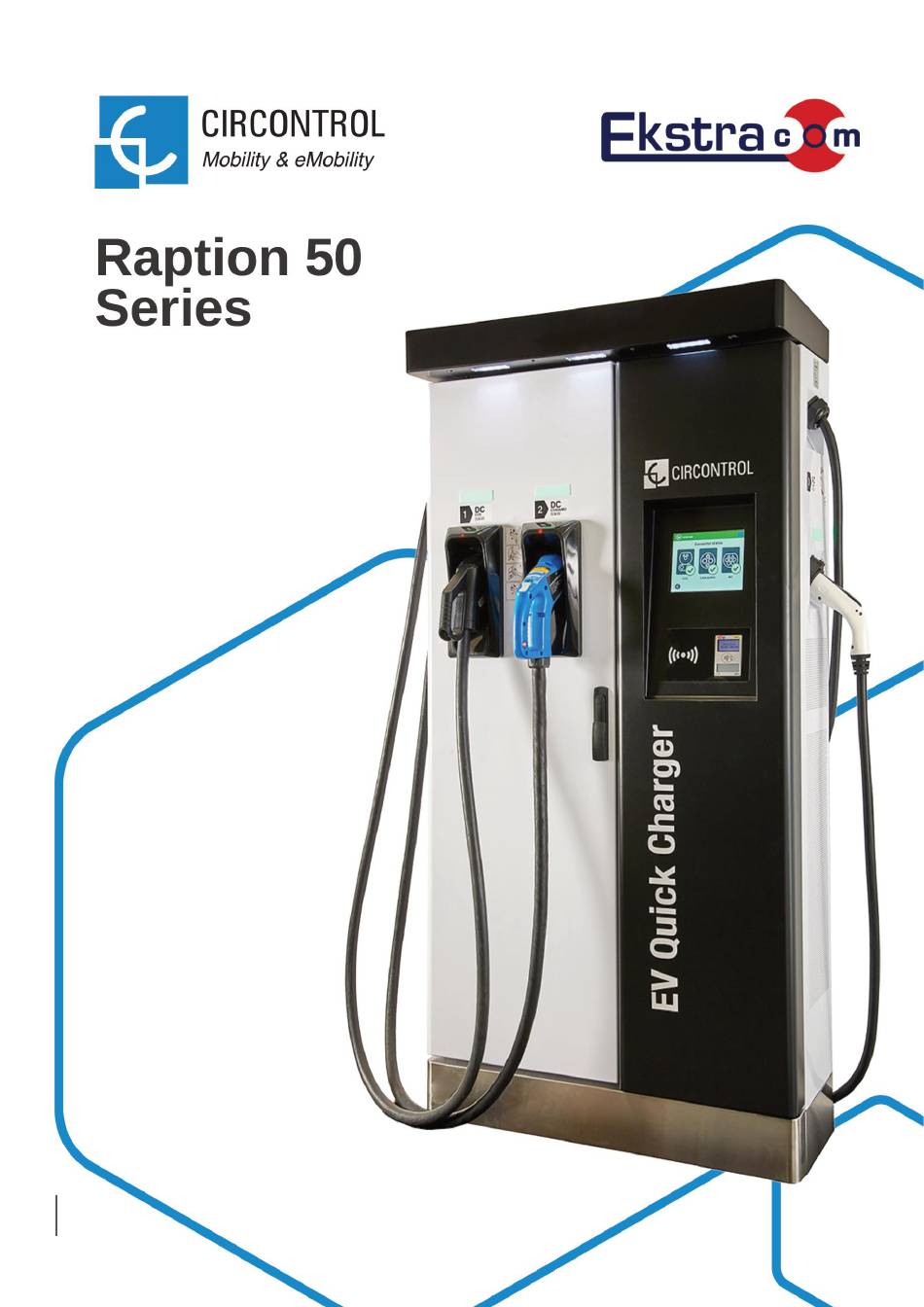

- Page 1 User manual V.1.6 2021...

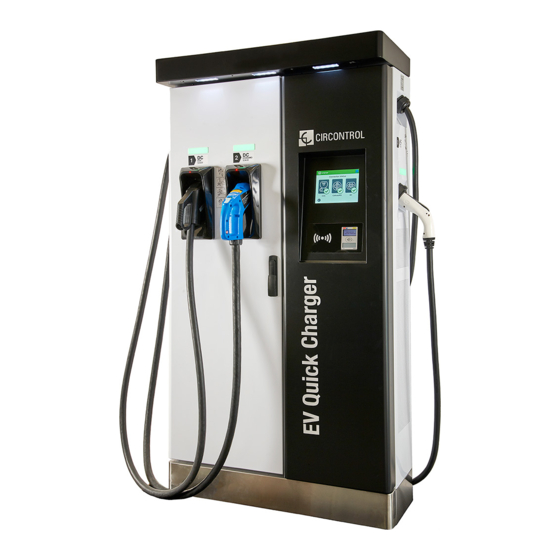

- Page 2 CIRCONTROL RAPTION 50 QUICK CHARGER To start charging: 1. Put the card to the card reader or select Electric Vehicle Charging Station (EVCS) in the Mobile app. If you want to change the language, click on the flag 2. Select the appropriate connector type for your vehicle.
- Page 3 The connector can be removed from the holder by selecting it on the station screen: • The CCS connector (No.1) must be grasped by the handle and pulled out of the station downwards when the red light above it has gone out. •...
- Page 4 3. Connect the vehicle and press the "START" button. To finish charging: • Put the card to the card reader and press the "Stop" button on the screen, or stop it in the Mobile app. • A summary of the charging session will be displayed on the screen. •...
