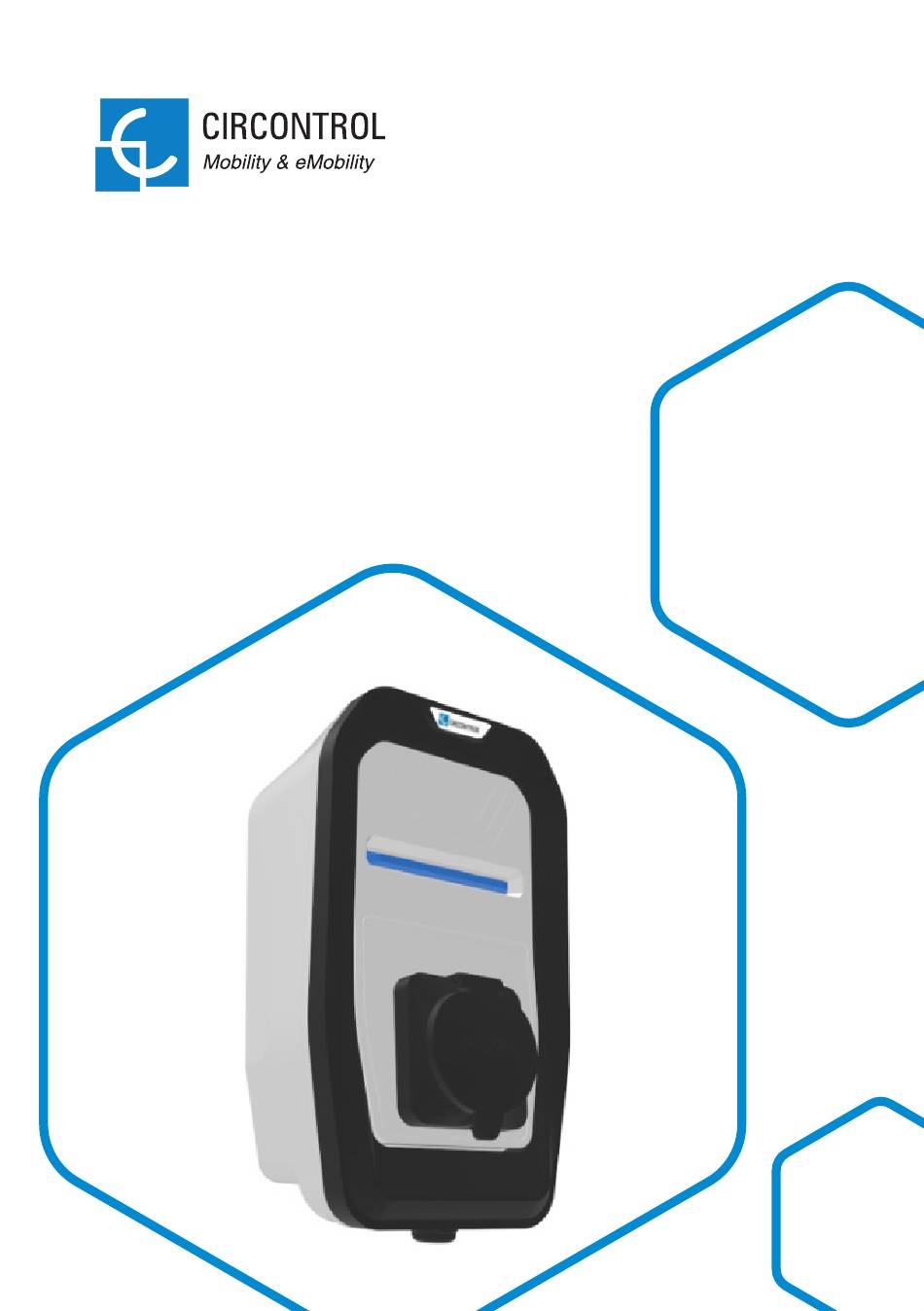

- Page 1 Wallbox eHome User Manual CCL-eHOME Series...
- Page 2 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2020 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
- Page 3 Here’s your guide to use 1 — So, hello! 2 — Operating Instructions 3 — Need Help?
- Page 4 WallBox eHome Series User Manual S H O R T D E S C R I P T I O N The Wallbox eHOME charging system is specially designed to be easily installed both in outdoor and indoor private car parks, in order to charge all the EV brands of the market in MODE 3 (according to European standard IEC 61851-1), by just connecting either its tethered cable with a type 1 or type 2 connector or connecting the EV cable into the charger socket type 2.
- Page 5 Overview 1 — Circontrol Logo 4 — Company Logo 2 — Status RGB LED light bar 5 — Frame 3 — Front cover 6 — Socket (*) Plugs may vary depending on the model...
- Page 6 WallBox eHome Series User Manual...
-
Page 7: Charging Procedure
Operating Instructions 2. 1 Charging procedure 1 — G R E E N F I X B A R S TAT U S The Wallbox eHOME has a status LED beacon. When it is in green colour , it means that the unit is available and ready to start the charge . - Page 8 WallBox eHome Series User Manual 4 — B L U E F I X L E D S TAT U S When the EV is fully charged, the charging process ends up and the status LED light bar stops flashing and remains fix in blue. 5 —...
- Page 9 2.2 Status LED light error’s The Wallbox eHOME is capable to detect the following operating errors: - Ventilation required error - Control Pilot - Proximity error - Negative PWM error - Maximum output current MiniDipswitch error - Temperature error Whatever the error case is, the Charge Point will stop charging and technical assistance will be required, except from the temperature error .
- Page 10 WallBox eHome Series User Manual 3 — P R O X I M I T Y E R R O R When the Charge Point is connected to the EV , a Proximity short-circuit to earth may occur . Then, the status LED light bar turns into red and flashes in a sequence of three blinks.
- Page 11 2.3 Firmaware Version 1 — F I R M WA R E V E R S I O N When the unit is booting, the LED bar will show the firmware version in orange. The first digit of the version will be shown as a certain number of blinking of the first LED, as many times as the digit indicates, and the second digit will be displayed by the last LED blinking accordingly to what the second digit indicates (i.e.
- Page 12 WallBox eHome Series User Manual...
-
Page 13: Need Help
Need help? In case of any query or need further information, please contact our Post-Sales Department. ps-support@circontrol.com circontrol.com (+34) 937 362 940 (+34) 937 362 941... - Page 14 WallBox eHome Series User Manual...
- Page 16 WallBox eHome Series User Manual CIRCONTROL WALLBOX EHOME SERIES INSTALLATION MANUAL A comprehensive guide on how to use your Wallbox eHome. V1.0, August edition 2020 R151 CIRCONTROL S.A. - ALL RIGHTS RESERVED...
