Foundation
B
The purpose of this chapter is the technical definition and basic requirements for
implementing the base and fixing the Charge Point.
•
A foundation kit with a mounting template is provided to ensure the distances
between the foundation bolts.
•
Once the kit is assembled, it must be placed in the ground. If the Charge Point
has to be installed outside and there is no limitation of depth, is recommended
to make a concrete base.
•

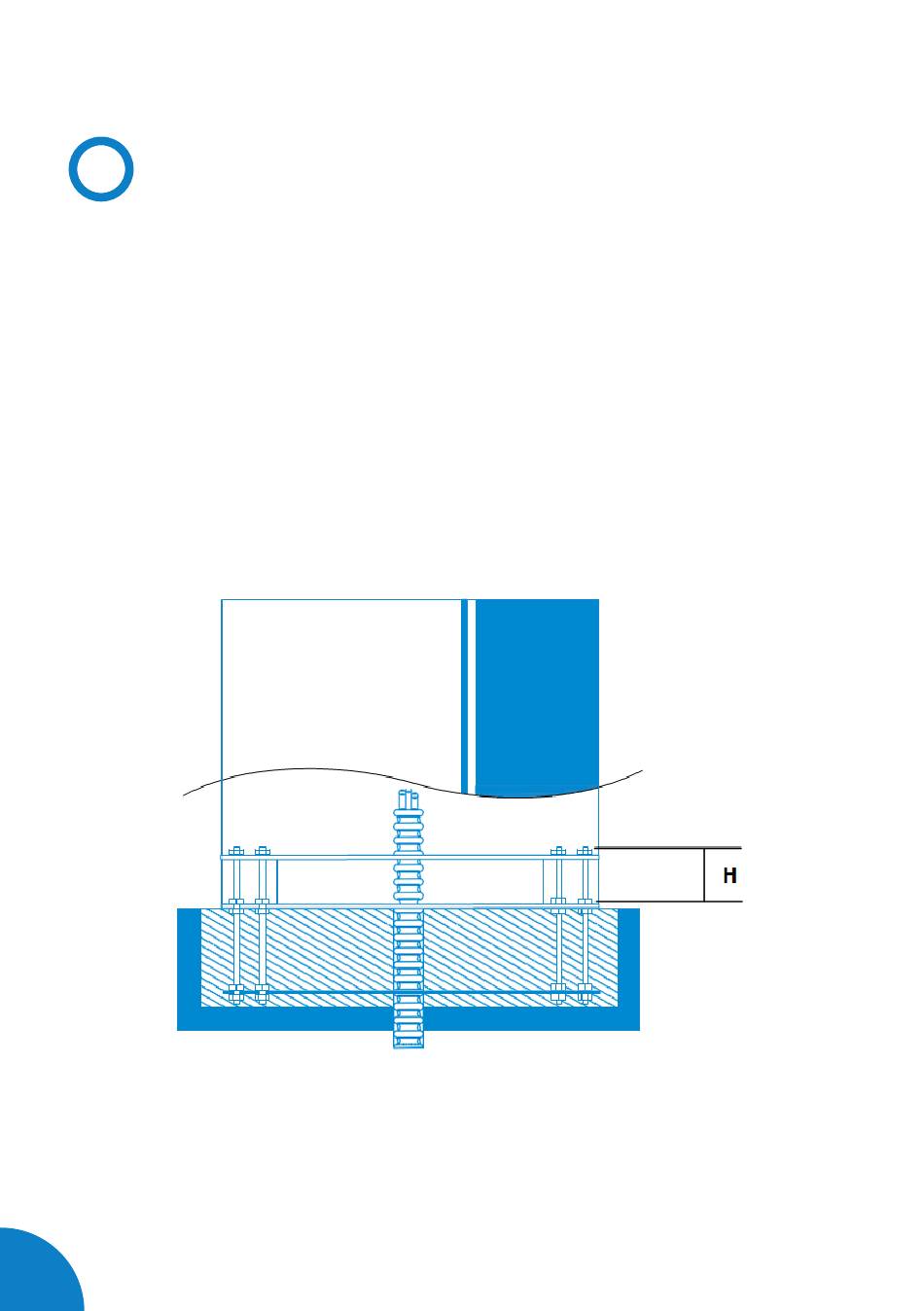

The concrete base shall provide the passage of power cables, it must be done by
corrugated tube placed inside the foundation through the mounting template, as
it can be seen below.
H = 16cm
