Raption Series Quick Start Installation Manual

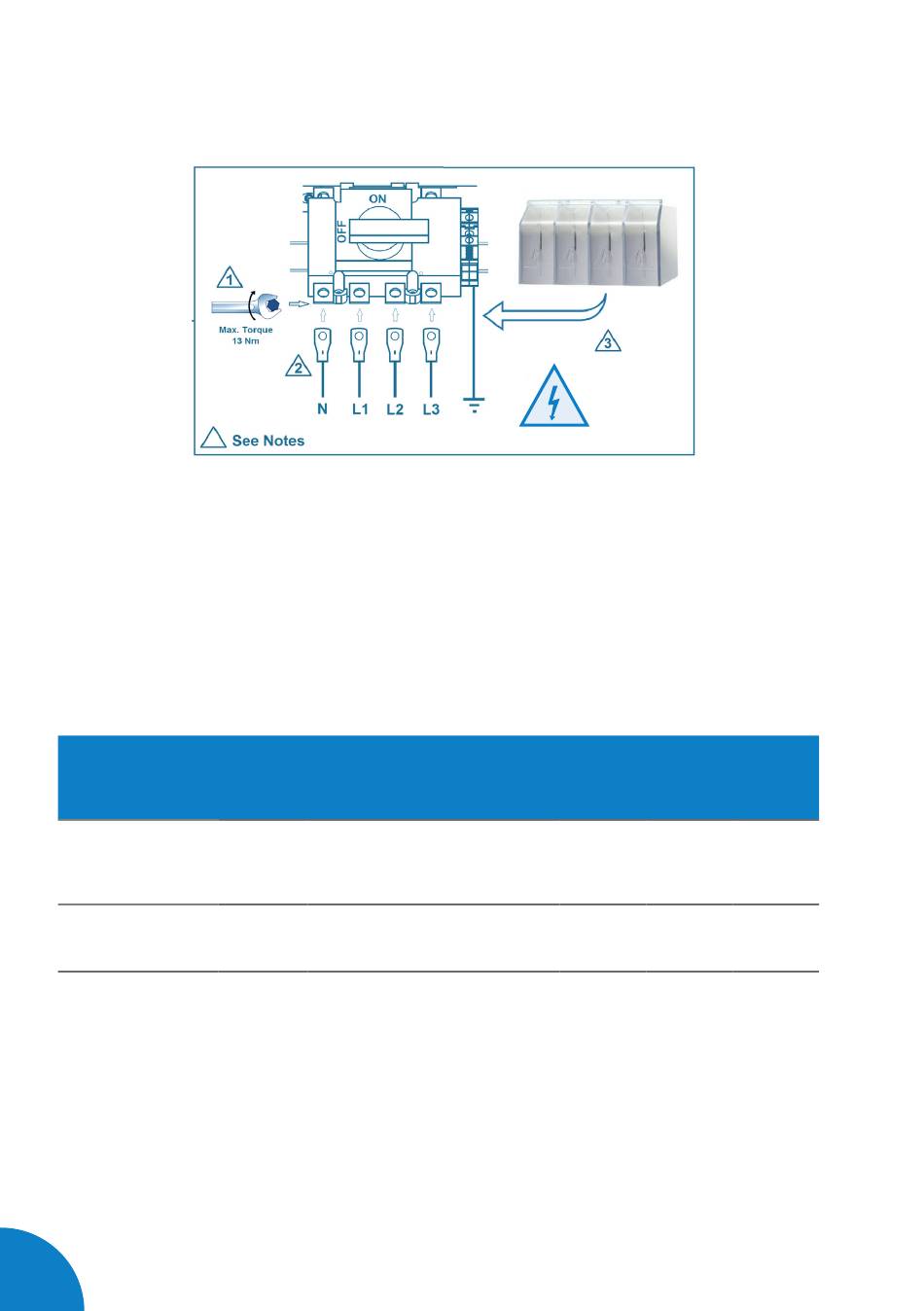

Power input connection - Connecting cable - Raption 50:
1- Use the M8 screw and washer provided in order to connect the electric terminals.
The maximum tightening torque has to be 13 Nm.
2- Use a M8 metallic electric terminal aligned with the required cable cross section
according to the power of the Charge Point (Max. 95 mm2). See this requirement in the
data sheet.
3- After connecting the power supply, place the shield protection over the circuit
breaker.
MODEL SPECIFICATIONS
Minimum
recommended
cable cross
sectional area *
Maximum cable
cross sectional
area **
(*) This is the minimum recommended cable cross sectional area for the maximum
AC input current (see datasheet) using multi-core copper cables with three loaded
conductors for installations in conduit in a thermally insulated wall (A2 method according
to IEC-60364-5-52).
The final cross section might be different if the installation method is another one, in any
case, it has to be calculated by the installer, taking into account the cable materials, the
conditions of installation and distances.
(**) This is the maximum cable cross sectional area accepted by the Main circuit breaker
14
CCS CHA CCS CHA
T2C63 T2S32
70 mm2 50 mm2
95 mm2 95 mm2
CCS CCS
CHA T2S32 T2S32
25 mm2 50 mm2 50 mm2
95 mm2 95 mm2 95 mm2
CHA
CCS CHA
25 mm2 25 mm2
95 mm2 95 mm2
.
