Raption Series Quick Start Installation Manual
Power input connection - Metal plate - Raption 50 :
In order to make a secure cable installation it is necessary to use the metal plate
provided. In the case of not using this metal plate and any damage to internal
components arises due to the entry of dirt, animals or any other external element,
Circontrol will reject any warranty claim against the unit:
12
Steps:
1- Locate the power input entrance in the
bottom of the Charge Point.

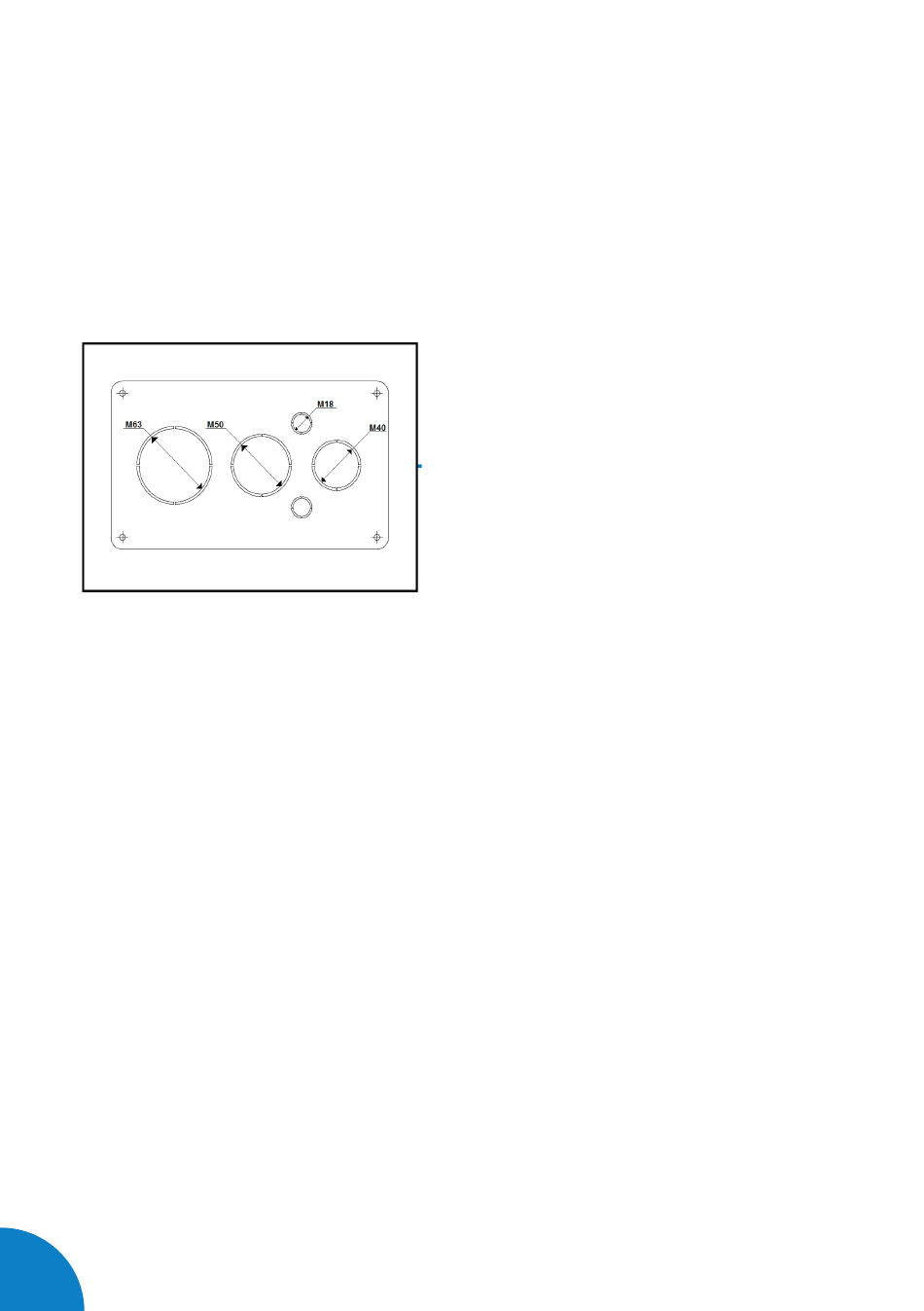

2- Assembly the metal plate provided. It is
recommended to install a cable glands (not
supplied) in pre-holes position.
