Power input connection - Metal plates - Raption 51 / Raption 52 /
Raption 100:
In order to make a secure cable installation it is necessary to use the metal plate
provided. In the case of not using this metal plate and any damage to internal
components arises due to the entry of dirt, animals or any other external element,
Circontrol will reject any warranty claim against the unit:

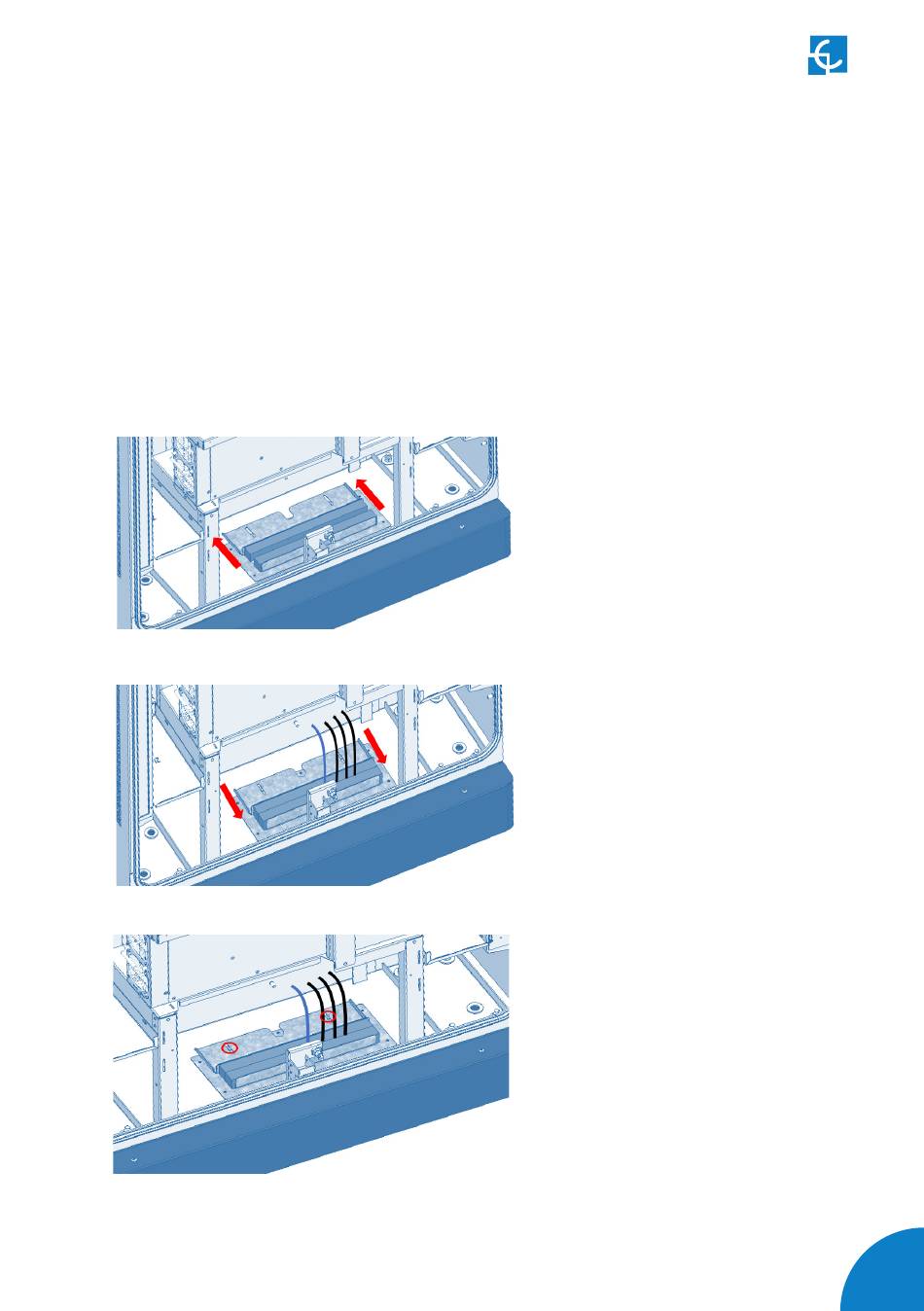

Steps:
1 - In this case, the metal plate is
composed on two parts, the first one
which is static, and the second one
which mobile.
Move backwards the plate behind to
have space to introduce the cables.
2- After connecting correctly the
cables, move the mobile plate
frontwards to the original position
making sure that there are no open
spots between the two plates.
3 - While pressing firmly, introduce
the screws indicated in the next
picture to make sure that the system
is fixed.
13
