1.2.7

Wireless

⚫ 1 x Full-size Rev.1.2 PCI Express Mini Card slot: PCIe/USB (for LTE/Wi-Fi)
(Socket CN10).
⚫ 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB/SATA (for Wi-Fi/mSATA)
(Socket CN11).

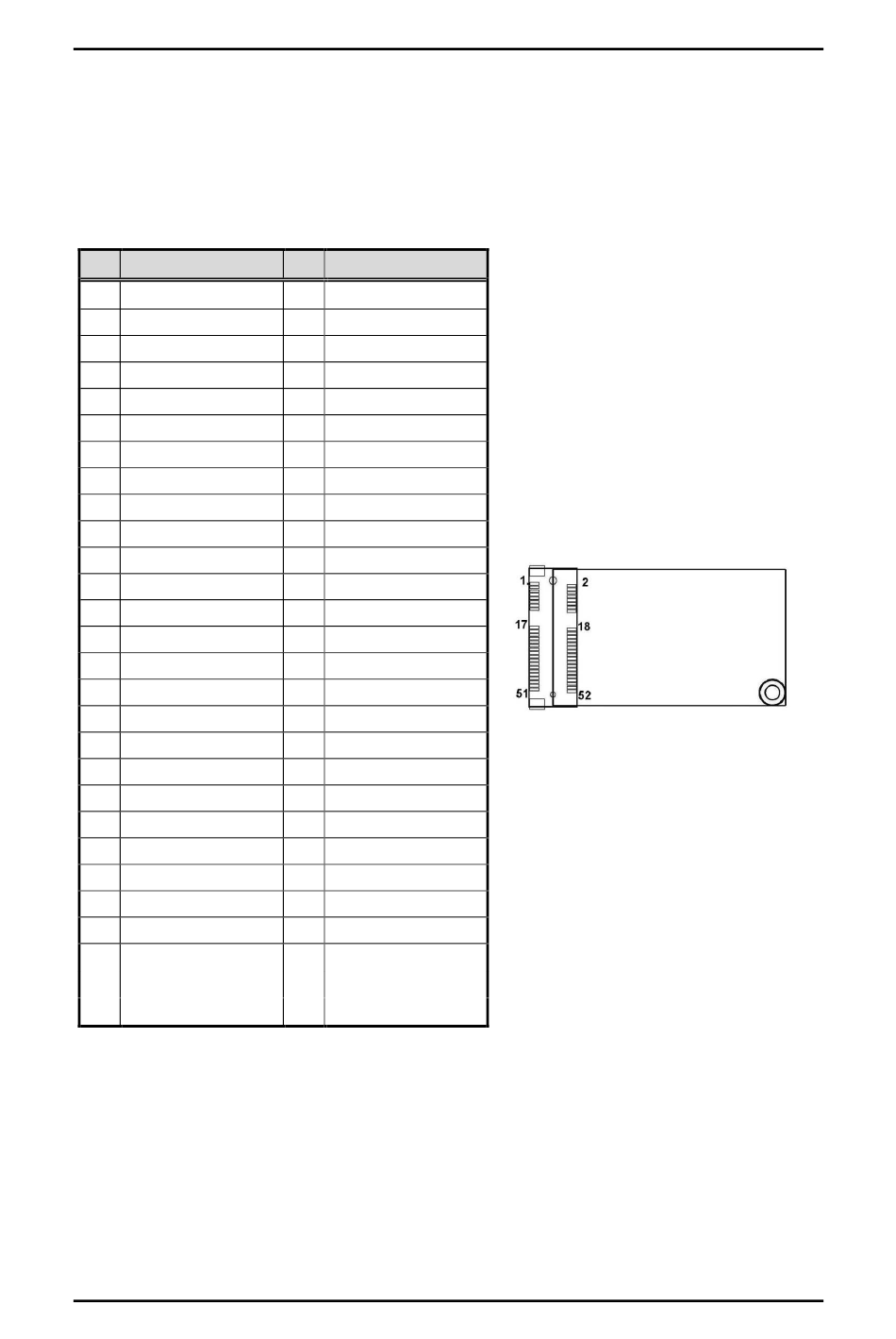

Full-size Mini Card
Pin Signal
1 WAKE#
3 N.C.
5 N.C.
7 CLKREQ#
9 GND
11 N.C.
13 N.C.
15 GND
17 N.C.
19 N.C.
21 GND
23 PE_RXP
25 PE_RXN
27 GND
29 GND
31 PE_TXN
33 PE_TXP
35 GND
37 GND
39 +3.3VSB
41 +3.3VSB
43 GND
45 N.C.
47 N.C.
49 N.C.
51 N.C.
53 N.C.
55 N.C.
Introduction
Pin Signal
2 +3.3VSB
4 GND
6 +1.5V
8 SIM_PWR / N.C.
10 SIM_DATA / N.C.
12 SIM_CLK / N.C.
14 SIM_REST / N.C.
16 SIM_VPP / N.C.
18 GND
20 +3.3VSB
22 PERST#
24 +3.3VSB
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_DN
38 USB_DP
40 GND
42 LED_WWAN#
44 LED_WLAN#
46 LED_WPAN#
48 +1.5V
50 GND
52 +3.3VSB
54 N.C.
56 N.C.
