Ethernet Ports

⚫ LAN Chip: Intel Ethernet Controller I211-AT.
⚫ LAN 1 and LAN 2
The board has dual RJ-45 connectors, support 10/100/1000 Base-T with 1.5KV
magnetic isolated protection.
1.2.6

Storages

⚫ 1 x 2.5" SATA drive bay.
⚫ 1 x mSATA.
1.2.7

Wireless

⚫
2 x Full size Mini Card slot supports module with USB and PCIe Interface.
⚫ 1 x SIM Card Socket.
⚫ 3 x Antenna holes.
1.2.8

USB

⚫ 4 x USB3.0

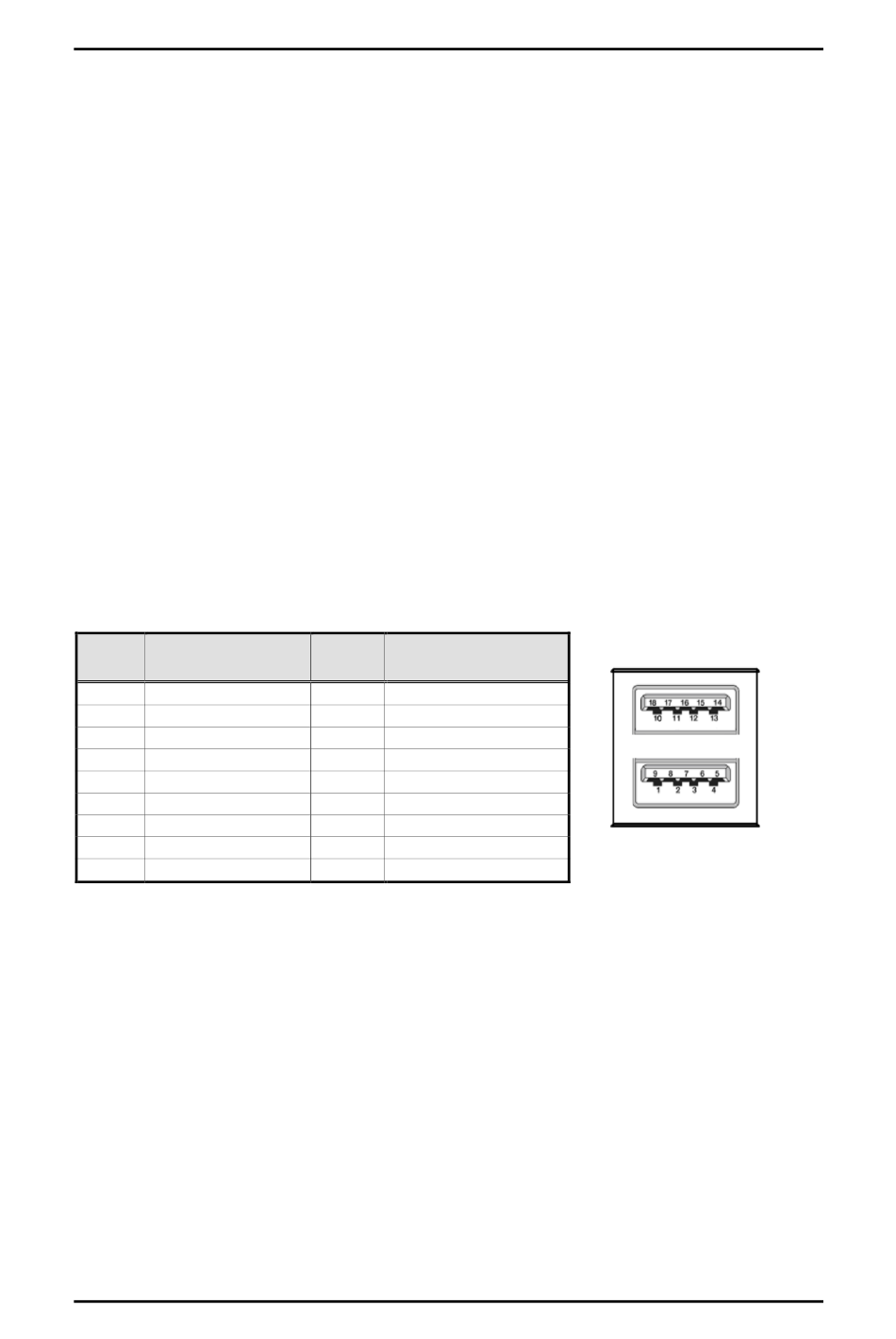

⚫ USB Pin Define :
Signal
Pin
USB Port 0/1
1 VCC
2 D-
3 D+
4 GND
5 SSRX-
6 SSRX+
7 GND
8 SSTX-
9 SSTX-+
Introduction
Signal
Pin
USB Port 2/3
10 VCC
11 D-
12 D+
13 GND
14 SSRX-
15 SSRX+
16 GND
17 SSTX-
18 SSTX-+
