ICO520 Series User's Manual
b. NMVe For Fully Type/ Simplified Type

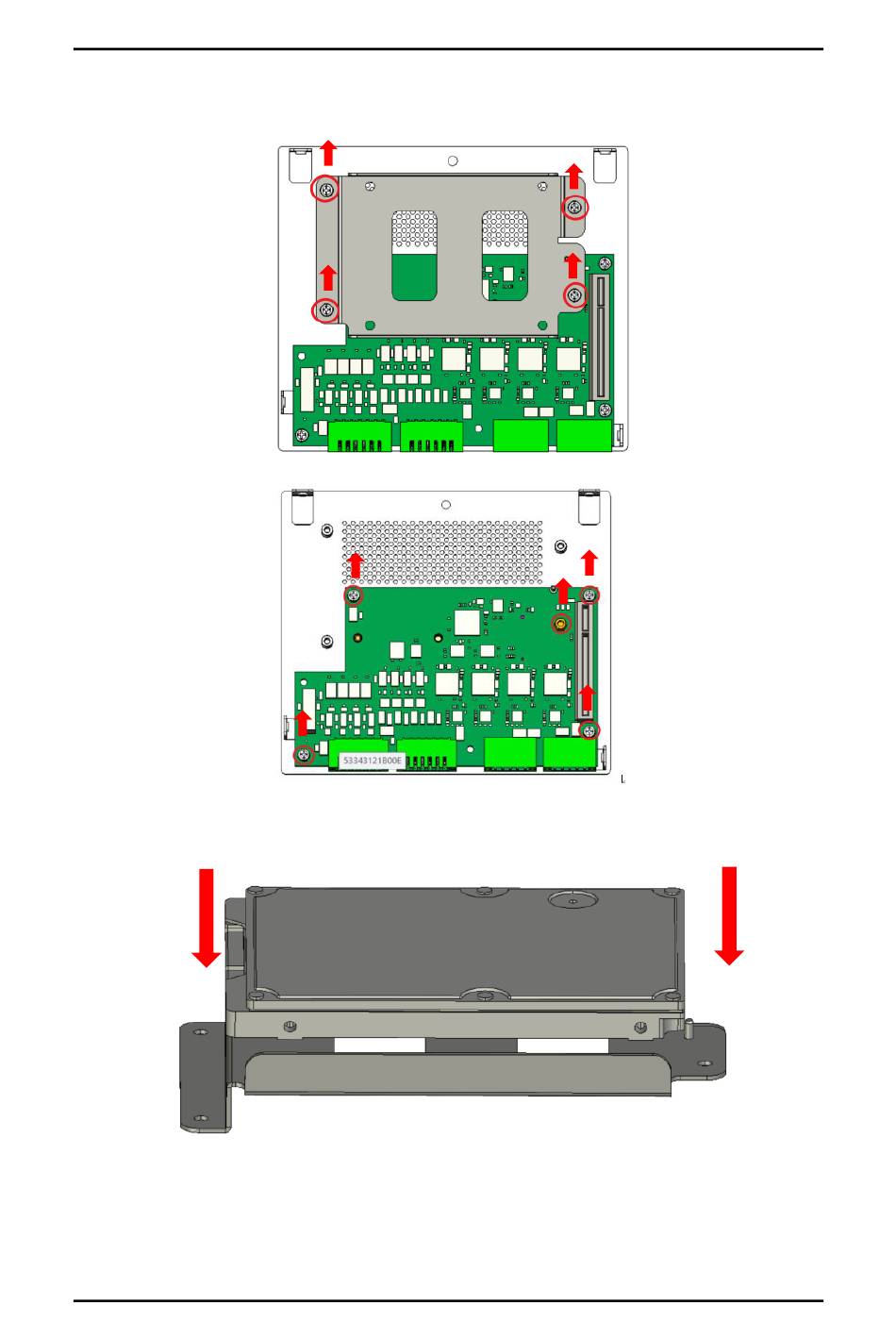

Step 3 Fasten the SSD screws (marked by the red arrows below) to fix the SSD. Then
screw the SSD install the tray back to the system.
30
Hardware Installation
